Axial releases new SCX10 KIT W/TRAIL HONCHO BODY 11/24/09

Axial SCX10 - KIT: Complete Assembly Required 1/10th Scale | Electric | 4X4 Truck

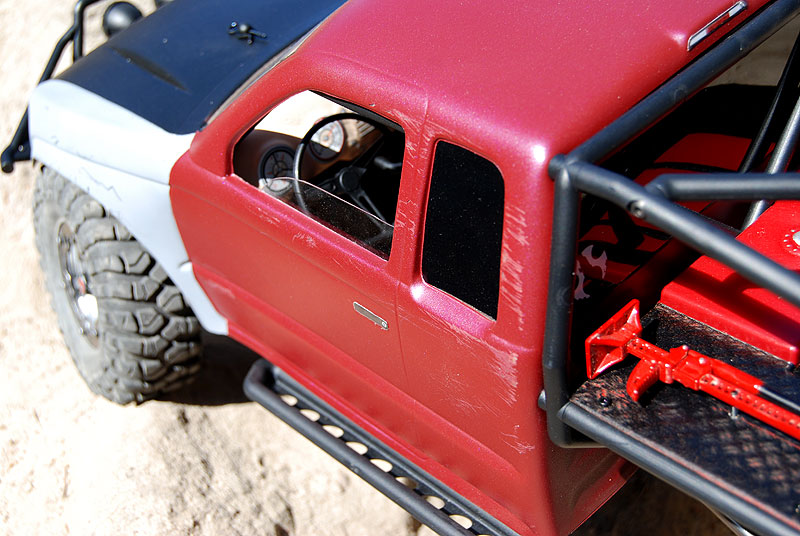

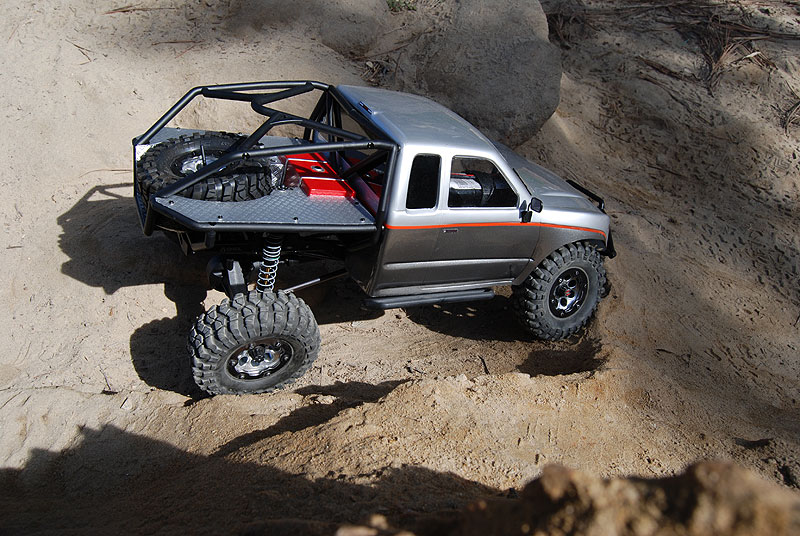

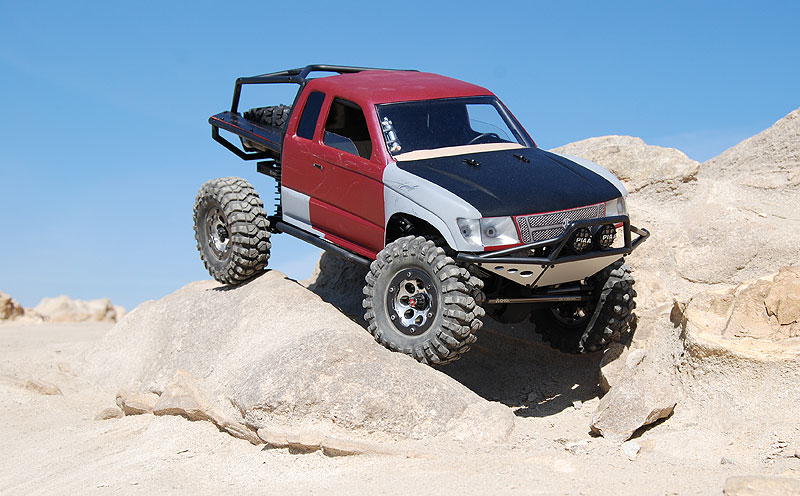

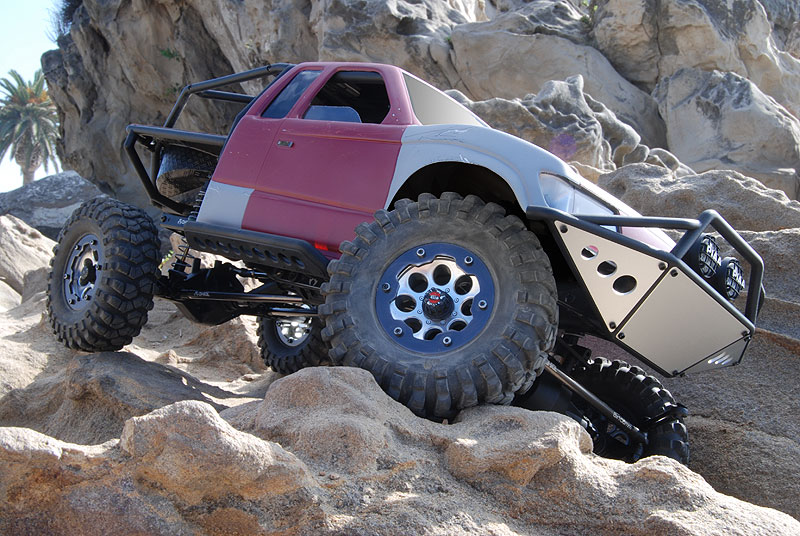

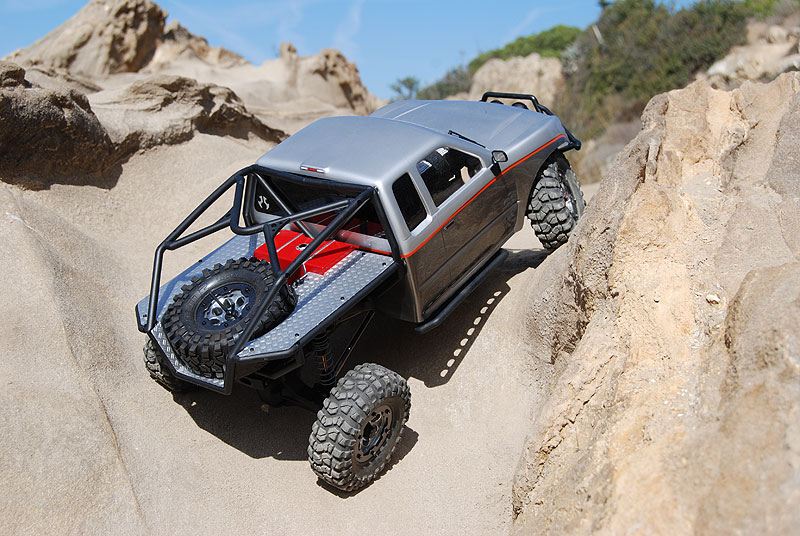

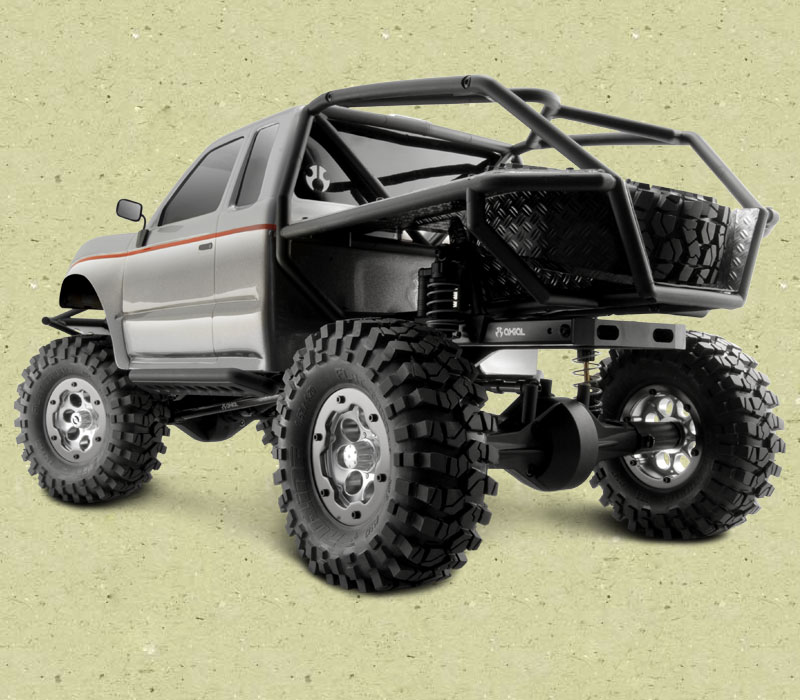

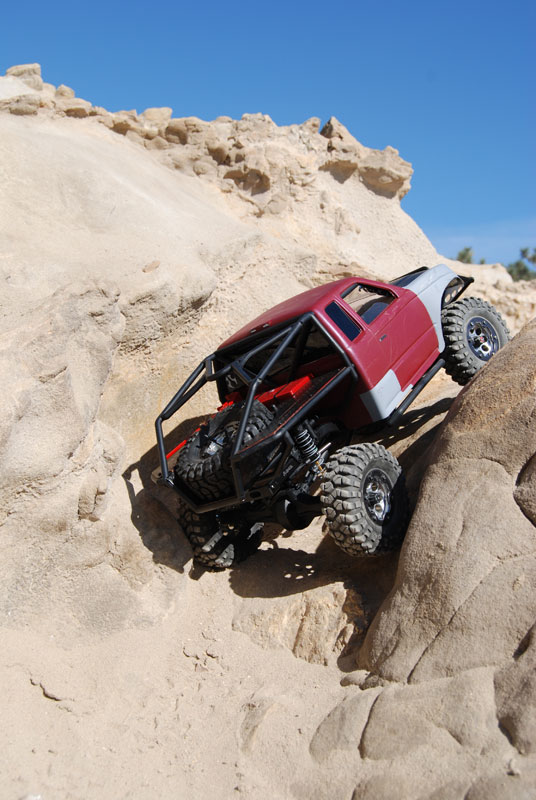

SCX10 KIT W/TRAIL HONCHO BODY The latest SCX10 is inspired by off-road vehicles that are basically part truck and part buggy, nicknamed "truggies". The new Axial SCX10 is the kit to have when it comes to having a realistic looking truggy. It incorporates realistic features like a steel c-channel ladder frame, plastic molded cage, and plastic front bumper with aluminum skid plates to attack the trails with. These are just a few of the items that set this kit apart WHAT IS THE SCX10 The SCX10 was designed to resemble its full sized "scale/1:1" counterparts, yet is still able to perform and crawl like a 2.2 AX10 Scorpion competition crawler. Unlike the AX10 which is purely competition driven, the SCX10 doesn't compromise its look for pure performance although the SCX10 is a more than capable trail rig on or off the trails. SCX10 vs. AX10 SCORPION The SCX10 uses the same ultra durable transmission and axles as the AX10 Scorpion, but is built around a more realistic or “scale” frame. It also runs smaller more realistic looking wheels and tires. These trucks are designed to have fun with, especially if you have a few friends that have scale rigs. Getting a few guys together and going out for a scale trail run is one of the best things you can do if you're an avid off-roading enthusiast.

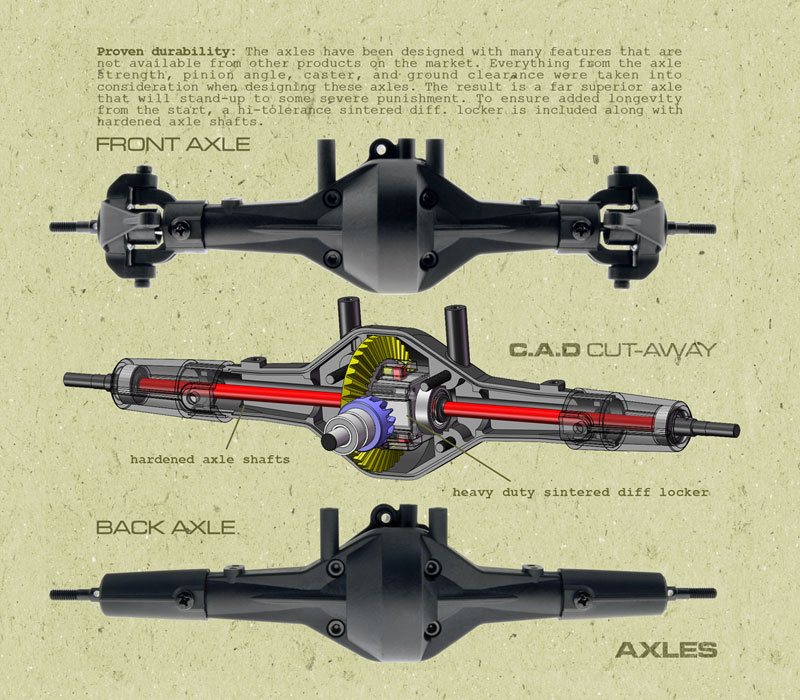

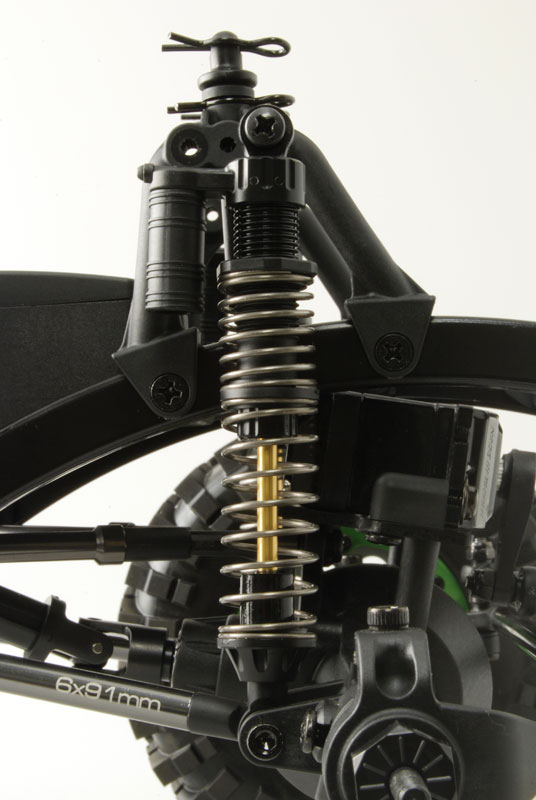

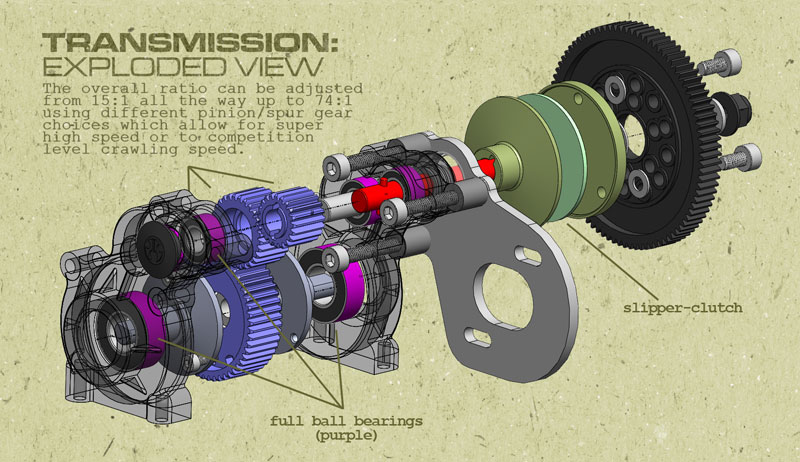

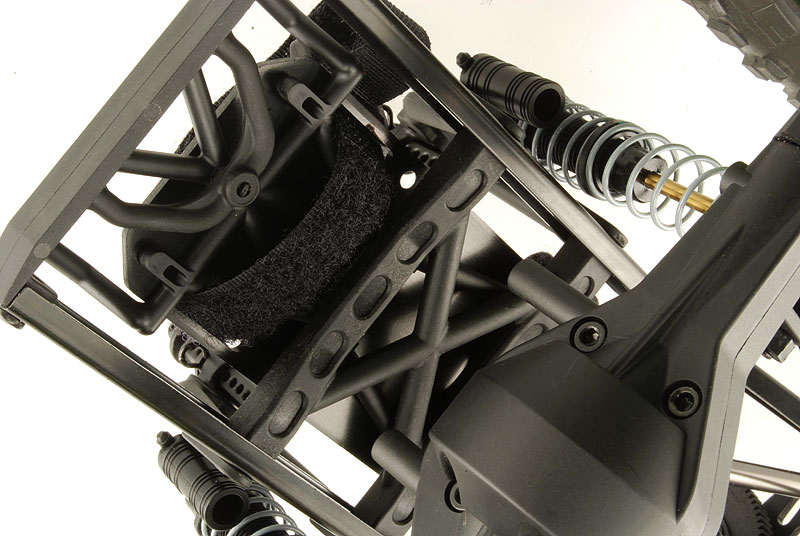

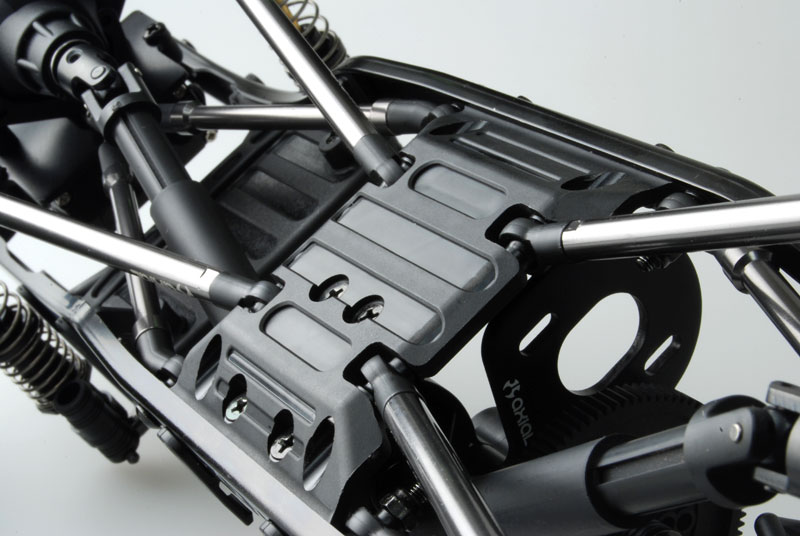

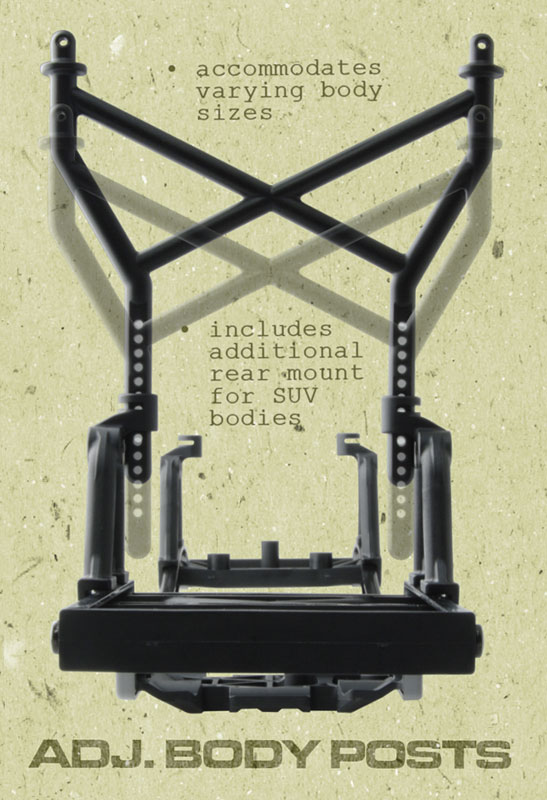

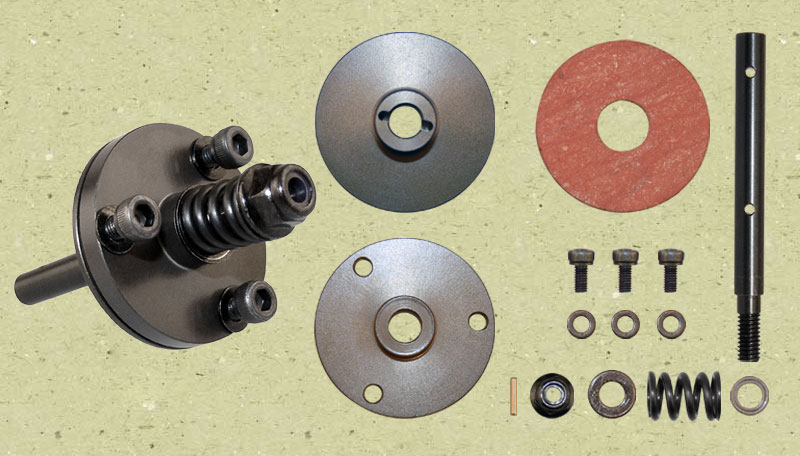

NOTE: Hardware may differ in product shots TORSIONAL STIFFNESS • Realistic looking frame and cross braces improve chassis rigidity SKID PLATE • Molded skid plate significantly reduces hang-ups on terrain SHOCK HOOPS • Allow for multiple shock positions for tunable performance COILOVER SHOCKS • Dual Rate Springs: provide maximum off-road performance.         ADJ. BODY POSTS • Accommodates varying body sizes • Includes additional rear mount for SUV body’s BATTERY TRAY • Multiple mounting positions for adjusting weight bias. This allows you to adjust your suspension for different handling characteristics. ELECTRONICS BOX • Designed to protect electronics from some serious off-road dust and debris STEEL C-CHANNEL FRAME • Steel C-channel frame provides realistic looks, and it also delivers a solid rigid platform for some rigorous off-roading.         SLIPPER CLUTCH • Allows the motor to work more efficiently and greatly enhances the durability of the drivetrain allowing the transmission to slip in hard binds. AXLES • Proven durability. Comes standard with a hi-tolerance sintered diff lock and hardened axle shafts. TRANSMISSION • The transmission was designed to place the weight of the motor as low as possible to maintain a low CG (Center of Gravity). The ultra compact transmission doesn't compromise performance because it also allows for a wide range of gearing choices. BONUS: LIGHTING • Take your scale build to the next level with the added bonus of 14 inlcuded light buckets! (LED’S NOT INCLUDED)         ROCK SLIDERS • Rock sliders reduce body damage and allows you to slide off rock obstacles. TRAIL HONCHO • Realistic triangulated plastic molded roll cage also comes with a lexan formed flat-bed with diamond plating and molded fuel cell details. Trail Honcho body also comes with lexan headlight buckets (not shown). PRO-LINE® FLATIRONS® TIRES • Big slats of slanted rock – this is typically what is referred to as Flat Iron. In the case of the Flat Iron tire, it is made to do just that – traverse, descend, and ascend big slats of slanted rock. 8 HOLE BEADLOCK WHEELS • 8 hole beadlocks offer a realistic scale look. The wheel is made of a strong durable composite material, and comes standard with a grey aluminum beadlock ring.

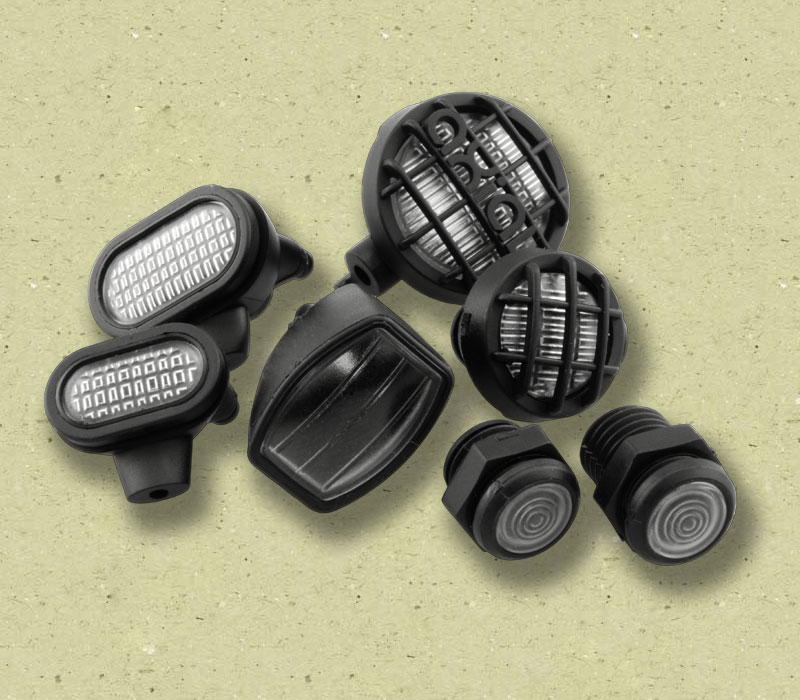

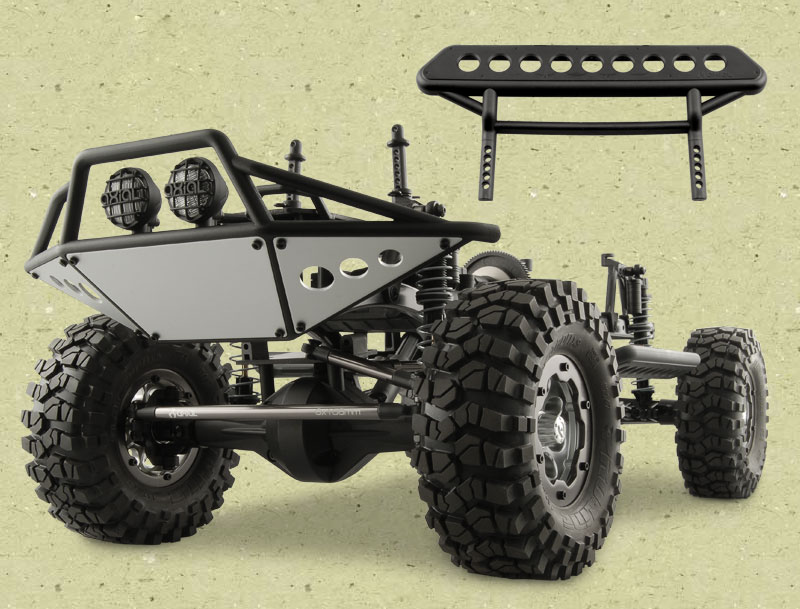

SCX10 MODEL COMPARISON MODEL COMPARISON Clicking on the images take you to the prospective pages. Key Features SCX10 (KIT) - CF100 SCX10 (KIT) - TRAIL HONCHO SCX10 TR (RTR) PART NUMBER: AX90007 AX90014 AX90012 Motor n/a n/a 27t Links Aluminum Aluminum Composite Plastic Wheelbase 11.4" 12.3" 11.4" Sintered Diff Locker yes yes yes Rock Sliders n/a yes yes Bumpers n/a Front only: Tube style plastic bumper w/aluminum skid plates Front and Rear Plastic bumper Body: Clear/Painted CF-100/clear Trail Honcho/clear Dingo/pre-painted Spare (5th) Wheel/Tire n/a yes yes Wheels 1.9, Chrome 8 hole, w/green beadlock 1.9, 8 Chrome hole, w/grey beadlock 1.9, 8 Chrome hole, w/grey beadlock Tires 1.9 Pro-line Flatirons 1.9 Pro-line Flatirons 1.9 Pro-line Flatirons 4-Link Truss n/a n/a yes (not installed) Lighting n/a BONUS: 14 light buckets (LED's not included) 2 light buckets, 4 white LED's, 2 red LED's Hardware Mixed hardware All hex hardware Mixed hardware

SPECS CHASSIS Wheelbase: 313mm (12.3") Width: 227mm (9") Height: 150mm (5.9") Ground Clearance: 68mm (2.7") Weight: 1814g (4.0 lbs") BODY Length: 457mm (18") Width without fender flares 216mm (8.5") Height: 137mm (5.4") ELECTRONICS (NOT INCLUDED) Radio: 2 channel Servos: 1 hi-torque metal gear (standard size) ESC: forward and reverse ESC Motor: 540/550 size REQUIRED ITEMS (NOT INCLUDED) Battery: (1) 7.2v Stick Pack Battery: (8) AA size batteries OPTIONAL EQUIPMENT CHASSIS AX30525 SCX10 Frame Set AX30090 61-90mm Aluminum Shock Set - 7mm Piston (2pcs) SHOCKS AX30114 Hard Anodized Aluminum Shock Reservoir (2pcs) AX30115 Hard Anodized Aluminum Pre-load collar (2pcs) AX30117 Hard Anodized Aluminum Shock Body 10x38mm (2pcs) SPRINGS AX30200 Spring 12.5x20mm 3.6 lbs/in - Super Soft (Red) - (2pcs) AX30201 Spring 12.5x20mm 4.32 lbs/in - Soft (White) - (2pcs) AX30202 Spring 12.5x20mm 5.44 lbs/in - Medium (Green) - (2pcs) AX30203 Spring 12.5x20mm 6.53 lbs/in - Firm (Yellow) - (2pcs) AX30204 Spring 12.5x20mm 7.95 lbs/in- Super Firm (Blue) - (2pcs) AX30205 Spring 12.5x40mm 2.7 lbs/in - Super Soft (Red) - (2pcs) AX30206 Spring 12.5x40mm 3.6 lbs/in - Soft (White) - (2pcs) AX30207 Spring 12.5x40mm 4.08 lbs/in - Medium (Green) - (2pcs) AX30208 Spring 12.5x40mm 5.44 lbs/in - Firm (Yellow) - (2pcs) AX30209 Spring 12.5x40mm 6.81 lbs/in- Super Firm (Blue) - (2pcs) Part # EAN Description Price MSRP AX90014 877493008215 Axial SCX10 - 1/10th Scale Electric 4WD Truck Kit w/Trail Honcho Body $485.00 $275.00   Parts List Instructions AX90014 - SCX10 KIT Parts List AX90014 - SCX10 KIT Instructions (8MB)
