Old 02-02-2007, 02:18 PM   #81
Newbie

Join Date: Aug 2005
Location: Louisiana
Posts: 19
Default

Here's one of mine...

Truck Base : Custom CNC chassis from REC

Body: HPI Land Rover

ESC: Novak 610HRV (old school!)

Motor(s): Permax 600

Servo(s): Unknown brand high torque metal gear

Trans: Stampede

Axles: Run of the mill TLTs

Tires: Geolandars on narrowed Pede rears

WB: 11.25"

Overall Width: 9.25"

Diff clearance: ~1"?

Center Chassis clearance: 'bout 3"

Overall height: about 9.5"

Weight: TBD

More pictures can be found here - http://www.scale4x4rc.org/gallery/th...s.php?album=64

Others are here - http://www.scale4x4rc.org/gallery/index.php?cat=10001



KeithLuneau is offline   Reply With Quote
Sponsored Links
Old 02-05-2007, 09:35 AM   #82
Quarry Creeper

fokai's Avatar

Join Date: Oct 2006
Location: McChord AFB
Posts: 236
Default

Bruiser Scaler

Truck Base :Tamiya Bruiser

Body:Tamiya Bruiser

ESC:Mamba 25

Motor(s):RevolveR 2

Servo(s):HS645-MG

Trans:Stampede

Axles:TLT locked with full bearings

Tires: HPI Geolandars

Weight: 5lbs.

Other: Four-linked rear, diaz design leaf springs up front, fat rock axle-c's.



fokai is offline   Reply With Quote
Old 02-06-2007, 07:16 PM   #83
Rock Stacker

Join Date: Jan 2007
Location: Puyallup WA
Posts: 94
Default







wiebs6 is offline   Reply With Quote
Old 02-09-2007, 04:25 PM   #84
I wanna be Dave

Join Date: Dec 2005
Location: Orlando
Posts: 7,426
Exclamation

Bruiser
-EMaxx tranny
-TLT axles
-Bruiser Chassis
-Novak SD ESC
-Integy 55t motor
-RC4WD beadlocks
Attached Images

ColquittCustom405 is offline   Reply With Quote
Old 02-17-2007, 01:45 PM   #85
Newbie

Join Date: Mar 2005
Location: logan
Posts: 31
Default

this is my high lift
3 speed trany
lockable diffs
2.2 swamp dogs
shackle revesal
http://www.putfile.com/pic.php?img=4792538

Last edited by tz-01; 02-17-2007 at 01:49 PM.
tz-01 is offline   Reply With Quote
Old 02-23-2007, 09:43 PM   #86
Rock Crawler

Join Date: Jun 2006
Location: capon bridge
Posts: 571
Default

Everythings custom

frame= custom
body= effed up rubi
motor= integy 55t
tranny= XXXT
tires= boggers
axles= tlt locked up
other= custom bumpers, custom leaf springs, custom roll cage, and leaf spring mounts


west virginia krawler is offline   Reply With Quote
Old 03-01-2007, 06:53 PM   #87
Quarry Creeper

Join Date: Jul 2006
Location: Apple Valley, CA
Posts: 409
Default Bronco Scaler

Here is my latest project. I won the body from "RCP CRAWLERS" at a comp this year! The chassis is homemade. It's your basic rig! 55turn, tlt axles, swampers, It's got a host of scale goodies on it! I am work'n on a winch for it right now. Sorry bout pic quality, it's from a cel!

Last edited by axelsnapr; 03-01-2007 at 07:01 PM.
axelsnapr is offline   Reply With Quote
Old 03-07-2007, 11:36 AM   #88
Say hello to my dactylion

PinchFlat's Avatar

Join Date: Jun 2004
Location: On the Boat to Whore Island
Posts: 4,438
Default

My K2-3L 2.2 class rig (I know they are 1.9 rims but under the UTRCRC STR rules it is a 2.2 - 3.75" tire height max in 1.9 class) Besides... 2.2 rims don't look scale at all well passable is they have a 5" tire on them.
Attached Images

PinchFlat is offline   Reply With Quote
Old 03-11-2007, 08:58 PM   #89
Pebble Pounder

Join Date: Mar 2007
Location: MOSS LANDING
Posts: 145
Default Today In Moss Landing

CRAWLING AROUND MOSS LANDING
3/11/07
ARMRASTLER is offline   Reply With Quote
Old 03-12-2007, 01:33 PM   #90
Mikes RC World

1BadJeepBruiser's Avatar

Join Date: Mar 2005
Location: Land of NO 4wheeling toyota cwarlers or drag racing sortafast chevelles
Posts: 8,756
Default

Nao/Dave pack built F350 Truggy



Last edited by 1BadJeepBruiser; 12-04-2007 at 09:37 AM.
1BadJeepBruiser is offline   Reply With Quote
Old 03-14-2007, 09:08 PM   #91
Quarry Creeper

Join Date: Jan 2006
Location: bay area
Posts: 444
Default my scaler

11 in WB

K2-3s Chassis

HPI Geolander and schorch wheels

55T motor

Tamiya corsa grey paint (looks white)

Moped Esc

Airtronics M8 radio

pede tranny
Attached Images


Last edited by zumzum5150; 03-14-2007 at 09:14 PM.
zumzum5150 is offline   Reply With Quote
Old 03-17-2007, 11:47 AM   #92
Newbie

Join Date: Feb 2007
Location: Finland
Posts: 5
Default

FJ40:11 in wb , home made chassis, links,bumbers ,moabs and narrowed pede wheels,magnetic mayhem,pede tranny,and not ready
suiza is offline   Reply With Quote
Old 03-19-2007, 05:51 PM   #93
Rock Crawler

Join Date: Feb 2004
Location: Near Pittsburgh, PA
Posts: 911
Default

Rubicon Body
SW2 chassis
12" WB




mascman is offline   Reply With Quote
Old 03-24-2007, 06:07 PM   #94
Quarry Creeper

Join Date: Feb 2005
Location: Wheeling
Posts: 279
Default K2-3L Land Rover

Specs:
K2-3L Chassis
Tlt axles
Pede trans
16/87 gearing
35t lathe
Moabs on stock pede fronts
Custom bumpers
Winch







Last edited by polyophio; 09-08-2007 at 06:14 PM.
polyophio is offline   Reply With Quote
Old 04-10-2007, 08:03 AM   #95
Rock Stacker

Join Date: Dec 2005
Location: UK
Posts: 79
Default Homebrew Titan

truck base: TLT avec Custom chassis

Trans: stampede

Motor: old skool 55t lathe

Body: Proline Nissan Titan

WB: 350mm (12 inches in mickey mouse)

overall width: 250mm

overall length: fawk-nose

pics






Stone age is offline   Reply With Quote
Old 04-14-2007, 11:14 PM   #96
Rock Stacker

Join Date: Aug 2005
Location: Glendale
Posts: 53
Default

my 2.2s... bronco body is a K2-3L chassis with 65T on pede tranny... dodge truck body is an SW2 with 55T on pede tranny... both with 12 inch wheelbase on swamp dawg tires...

mikestoys is offline   Reply With Quote
Old 04-15-2007, 07:11 PM   #97
Rock Stacker

Join Date: Apr 2005
Location: Albuquerque
Posts: 51
Default

Truck Base : PTI Goliath

Body: Jeep Rubicon

ESC: Novak XRS

Motor(s): Integy 55t Lathe Motor

Servo(s): JR Racing

Trans: GD-600 Gear Reduction

Axles: PTI Axles

Tires: Proline Mashers

WB: 12.5 inches



joeshacks is offline   Reply With Quote
Old 04-16-2007, 01:42 PM   #98
Quarry Creeper

Join Date: Feb 2006
Location: Happy Valley
Posts: 262
Default



Last edited by Raney120; 04-16-2007 at 01:50 PM.
Raney120 is offline   Reply With Quote
Old 04-16-2007, 02:00 PM   #99
Quarry Creeper

Join Date: Feb 2006
Location: Happy Valley
Posts: 262
Default

Raney120 is offline   Reply With Quote
Old 04-16-2007, 02:59 PM   #100
Rock Crawler

Join Date: Jun 2005
Location: Safety Harbor
Posts: 588
Default

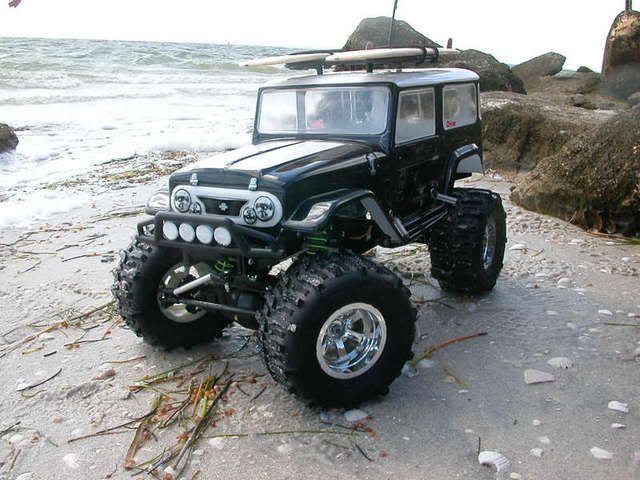

Home made ladder frame
Bushwacker
Novak XRS
Integy 45t
Tower Pro MG945
Wheely King tranny w/clocked motor
TLT axles
Swamp Dogs on HPI Scorch wheels
home made balsa/mahogony surfboards



Last edited by 72Blazer; 04-16-2007 at 03:35 PM. Reason: pics too small
72Blazer is offline   Reply With Quote
