Thread: Axial AX-10 Picture archive - No talking

Reply

LinkBack Thread Tools Display Modes
Old 08-23-2007, 10:31 PM   #1
R.I.P. Chip

jason's Avatar

Join Date: Jan 2004
Location: The Crawler State
Posts: 13,939
Default Axial AX-10 Picture archive - No talking

This thread is for COMPLETED pictures of your Axial AX-10 Scorpion crawler. No in progress build pictures, just ready to go finished crawlers. Also post a list of specs so people know what you are running. Also feel free to link to your personal build thread if you have one.





I'll start, here is my AX-10 ready to go, specs are as follows.
Integy 55 turn lathe motor.
Mamba Max ESC.
11.1V lipo mounted on the front upper links.
Hi-Tec 5955 TI geared servo.
Race compound Axial Rock Lizards.

Here is a link to my build thread Live Axial AX-10 build

The first pics are with the stock B-17 body, the second pics are with the HPI Baja Bug body.
Attached Images

jason is offline   Reply With Quote
Sponsored Links
Old 08-24-2007, 02:19 PM   #2
Quarry Creeper

Join Date: Sep 2005
Location: Sandy, UT
Posts: 367
Default

Losi Rock Claws
Trinity Bomb One foam inserts (truck rear)(buggy front)
JR 9000T w/ Dynamite aluminum horn
Novak Rooster 12T
Spektrum Rx w/ capacitor dealy
Thunder Power 2070 2S
Integy 55T
12" wheelbase w/ custom front upper mounts to bring the caster back to where it belongs.
Currently running the stock body...will have an HPI Bronc when I get around to painting it, hence the 12" wheelbase.



metalry101 is offline   Reply With Quote
Old 08-24-2007, 07:22 PM   #3
Rock Crawler

Join Date: Mar 2006
Location: Dogpatch
Posts: 805
Default

Got my Ax10 built today.The build went pretty smooth.The only problem was that one of the driveshafts split at the tiny holes were the universal pins go.They look like the Traxxas shafts so replacements are in need!I installed the electronics i had laying around-not really crawler material but will work for now.Mounted up my trail body till i can get the Betty body painted up.This is my first crawler and im not too fond of the bead-locks.I srtuggled to get them mounted and there still a little wobbly.This is one cool truck-Good Job Axial!!!!!!!!!!!!!!!!!!!!!!!:-P
Futaba radio
Hitec 645MG servo
Trinity Speed Gems 14D motor
Hitec EZXR Pro ESC
Epic 3000mah batts
Venom pre-painted Suburban


One more pic!!!:-P

Got my Betty body painted tonight-I love the looks of this body.

One more!

Been posted before too-here too is some by the water.Pool water that is!




Poser Pics!




Received my ARTR this morning.I had an original AX-10 kit and sold it on ebay last winter.Heres a pic of the old truck & the new one!!!





Heres a few pics of my new ARTR.I had an extra Crowd Pleazer body for my Revo that i just sold.I did a little creative cutting to get it to mount on the AX-10 chassis.



"Shelf Queen" AX-10 ARTR & basher Stampede!

Last edited by THX_138; 06-05-2018 at 10:41 PM.
RiderZ is offline   Reply With Quote
Old 08-24-2007, 08:33 PM   #4
RCC Addict

Join Date: Nov 2005
Location: Utah
Posts: 1,507
Default





running 55t hand wound. 2070 mAh lipo. tmaxx aluminum shocks. Rooster spektrum dx2

Works very goood-- Did till i broke a knuckle, now gotta wait for aluminum ones to come out :(
So my new tuber for it begins
dirk379 is offline   Reply With Quote
Old 08-24-2007, 11:44 PM   #5
I wanna be Dave

Join Date: Dec 2006
Location: here
Posts: 2,948
Default

Axial ax10 RCP 248.00 shipped
Moped VR16 esc vendor 25.00 shipped
Hitec 645 servo RCP 38.00 shipped
TQ3 traxxas Ebay 25.00 shipped
55T lathe + 20.00
paint 12.00
$368.00


(Soon novak rooster crawler and losi rock claws bug body)
now ELEC. RCE ESC, RCP streight axle lock out, RCP C's & knuckles 4 link/dig mounts.& rock claws


[/IMG]

Last edited by tapped-out; 10-22-2007 at 07:24 PM. Reason: update pic
tapped-out is offline   Reply With Quote
Old 08-25-2007, 07:18 PM   #6
Pebble Pounder

Join Date: Aug 2007
Location: Anaheim/Gardena, CA
Posts: 179
Default

Axial AX-10 Chasis
Moped V16 ESC
Integy 55T Motor
Hitec HS-645 MG Servo
F-650 Modded Body (Was a "throw away")
B17 Betty Body
Losi Grappler Body
Proline Crowd Pleazer Body
JR Controller.
Losi Rock Claws
"The Edge" Chassis coming soon



Last edited by DieselPhotos; 12-31-2007 at 01:55 PM.
DieselPhotos is offline   Reply With Quote
Old 08-25-2007, 10:45 PM   #7
'08 2.2 National Champ

Just Zach's Avatar

Join Date: Nov 2006
Location: UTRCRC
Posts: 5,585
Default

Intellespeed 16t esc
50t Integy motor
Hitec 5995tg servo
Shocks shortened internally about 1/2"
Truck foams in tires

Right now I have left it pretty stock to see what it could do but I'm sure I will be getting the servo/battery mount for the front and probably running some nicer stuff soon.



Just Zach is offline   Reply With Quote
Old 08-26-2007, 02:06 PM   #8
MODERATOR™

EeePee's Avatar

Join Date: Jul 2004
Location: Ohio
Posts: 18,927
Default

Oh Black Betty!

That's right, I got the name on here first!

BM9 brushless motor from The Crawler Store
Mamba 25 ESC
Airtronics 361 servo
Spektrum DX3 radio
Elite 1500 2/3A battery pack

Not done yet...



Cool truck, but I want the body to be higher up. Sky high!

EeePee is offline   Reply With Quote
Old 08-26-2007, 02:10 PM   #9
R.I.P. Chip

jason's Avatar

Join Date: Jan 2004
Location: The Crawler State
Posts: 13,939
Default

Quote:
Originally Posted by EeePee View Post
Oh Black Betty!

Nice name! For the youngsters that won't get it, Click Here
jason is offline   Reply With Quote
Old 08-26-2007, 02:24 PM   #10
Rock Stacker

Join Date: Aug 2007
Location: Kingston
Posts: 67
Default

Heres mine.
45T Integy Lathe motor
Mamba max ESC
3200Mah 7.4v Lipo
Hitec 5955TG servo
4oz of airsoft BB's in the stock tires

Last edited by TEAM-JCJ; 08-26-2007 at 03:03 PM.
TEAM-JCJ is offline   Reply With Quote
Old 08-26-2007, 02:46 PM   #11
I wanna be Dave

Join Date: Dec 2006
Location: In Cali.
Posts: 4,109
Default

Here is my son's AX-10. He built most of it.

Spektrum Dx3.0 radio
Futaba MC330 or 230. Can't remember!
55 turn integy lathe motor
Air 94358 servo
Moab tires
Runs a lipo pack and Novak voltage cutoff.
I have a new bug body we are painting for it. Used this one for now!





Fit and finish on all the items were great. Axial did a great job!
Racer4Life is offline   Reply With Quote
Old 08-26-2007, 10:31 PM   #12
RCC Addict

Join Date: Jun 2006
Location: hillsborough
Posts: 1,031
Default

Heres mine
55T lathe motor
futaba mc230cb ESC
hitec 645MG
controlled by futaba 3pjs

scatterbrains is offline   Reply With Quote
Old 08-27-2007, 09:08 PM   #13
I wanna be Dave

Join Date: Dec 2006
Location: In Cali.
Posts: 4,109
Default

New paint for his rig! He actually helped airbrush this one.



Racer4Life is offline   Reply With Quote
Old 08-28-2007, 11:53 AM   #14
Newbie

Join Date: Aug 2006
Location: vancouver
Posts: 29
Default




jayyeone is offline   Reply With Quote
Old 08-29-2007, 12:25 AM   #15
RCC Addict

Join Date: Mar 2007
Location: Penngrove
Posts: 1,810

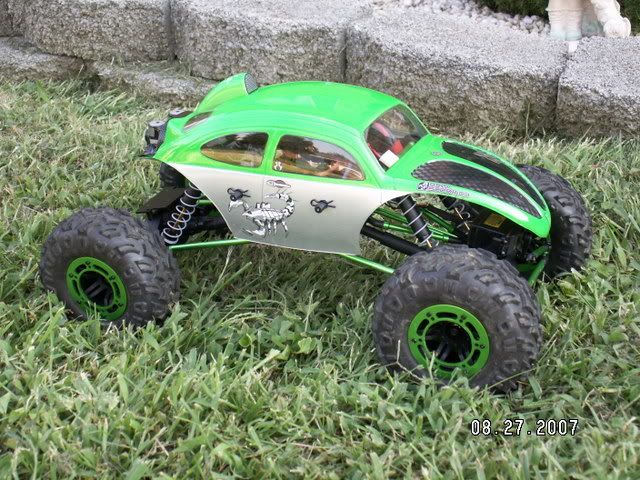

Default My AX10: Black and Green Overdose

-55t hand wound Integy
-Rooster crawler esc
-Hitec 5625MG
-Futaba 3PM
-Losi rock claws
-Kreepy Krawler red narrow foams in front w/3.5oz of stick on lead weight, stock foams narrowed in rear, 2x 1/8 holes drilled in each wheel
-HPI baja bug body
-7 cell elite 2/3A saddle pack from CBP

Soon to add dig and maybe even a tube chassis




Last edited by Mad4Rnr; 09-03-2007 at 11:12 PM. Reason: new pics
Mad4Rnr is offline   Reply With Quote
Old 08-29-2007, 02:23 PM   #16
Newbie

Join Date: Jul 2007
Location: Santa Clara
Posts: 20
Default Another AX10 :)

-Novak Rooster Crawler ESC
-Integy V10 Rock Crawler 55T motor
-Futaba S3305 high-torque metal gear servo
-Nomadio V2 transceiver w/ voltage sensor
-3600mAh NiMh 6-cell battery

Aside from my homebrew front axle battery/servo mount, everything is completely stock. The foams are channel-cut, and I'm currently running 8oz of stick-on weights in each front wheel and 3oz in each rear wheel. It seems to do pretty well with this setup, but I haven't had much wheel time with it. Time will tell. I'll be upgrading to a 2S Lipo pack shortly, and I'd like to add a dig system as well.





Taffey is offline   Reply With Quote
Old 08-30-2007, 06:00 PM   #17
I joined the Band!

Join Date: Jun 2007
Location: wisconsin
Posts: 184
Default axial ax10

ax10 chassis and Setup.
Mamba Max
60 turn Integy V10
TQ3 radio..
stick packs up top
hitec HS645MG
Rockwerks Cherokee Baja Body

I'm going to run it like this for a few weeks, then lipo's and crawlmaster will be the final setup..

crawls great, even with the high COG with the stick packs up top... Obviously it will only get better with a small lipo on the front axle!!
Attached Images

mattrichter is offline   Reply With Quote
Old 08-31-2007, 03:45 PM   #18
Quarry Creeper

Join Date: Jul 2007
Location: Kentucky
Posts: 445
Default

I'll play.

Airtronics 94358
8 Cell 1500 ELITE
Mamba Maxx
55T Integy Lathe
Betty body (hacked up)









Last edited by GreenRiver; 09-08-2007 at 08:03 AM.
GreenRiver is offline   Reply With Quote
Old 08-31-2007, 05:11 PM   #19
Newbie

Join Date: Aug 2007
Location: Spring, North Houston
Posts: 20
Default Pierce's Bengal Crusher

Here are a few pictures of my son's AX-10. We are still waiting on the Mamba Max speed controller. Can you tell his little league team is the Bengals. I would have painted it Cowboys Navy and Silver...lol

Name:  bengalcrusher.jpg
Views: 22178
Size:  85.2 KB

Name:  bengalcrusher1.jpg
Views: 22119
Size:  87.2 KB

Name:  bengalcrusher3.jpg
Views: 21920
Size:  88.0 KB

roachmoe is offline   Reply With Quote
Old 09-01-2007, 09:58 AM   #20
Rock Stacker

Join Date: Sep 2006
Location: vancouver
Posts: 52
Default

just a stock form ax-10 with a k-5 bodie

integy 65t lathe motor 14t pinion 87 spur

hitec 107 oz tourqe servo

cheap 40$ esc

jr s 400 air plane radio

esc/rx are plasty dipped but not yet water proof
dipstick is offline   Reply With Quote
