Old 01-21-2009, 01:29 AM   #1
I wanna be Dave

Join Date: Sep 2004
Location: SF Bay Area
Posts: 3,417
Default Blackwell X1 & X3 Axle Assembled
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

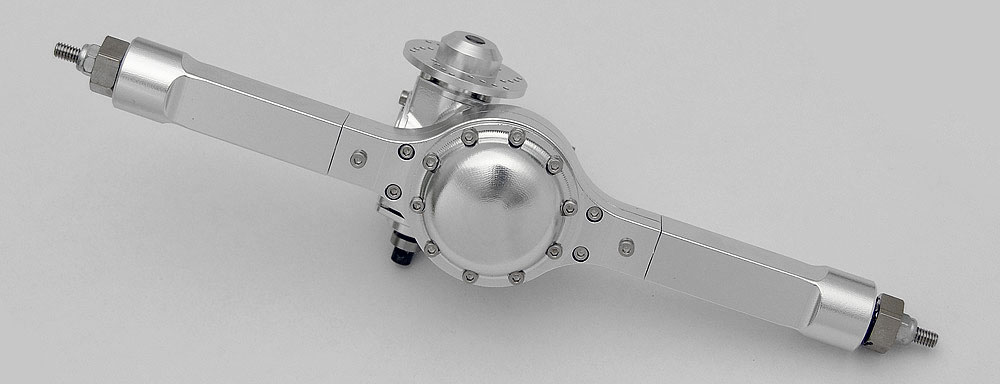

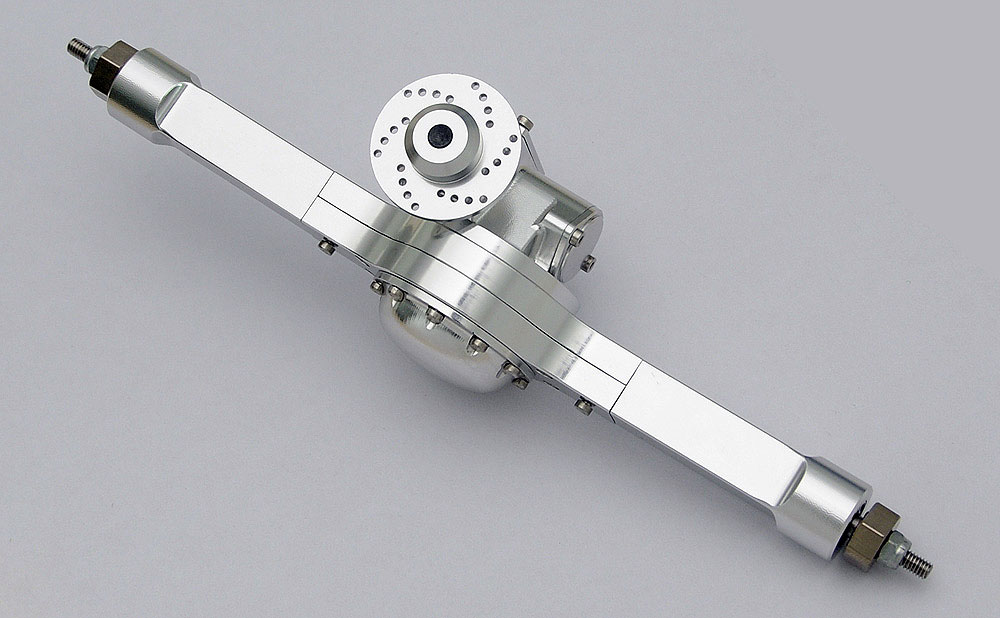

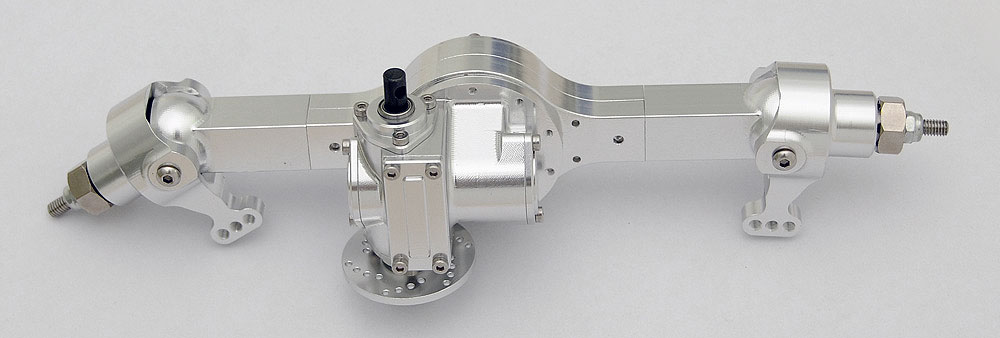

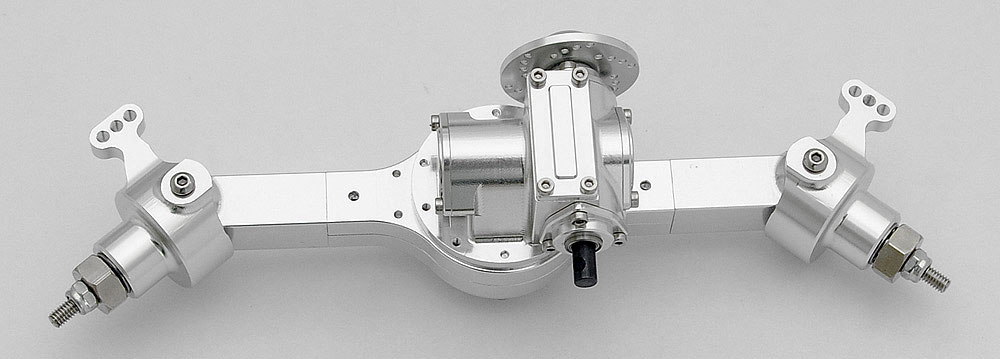

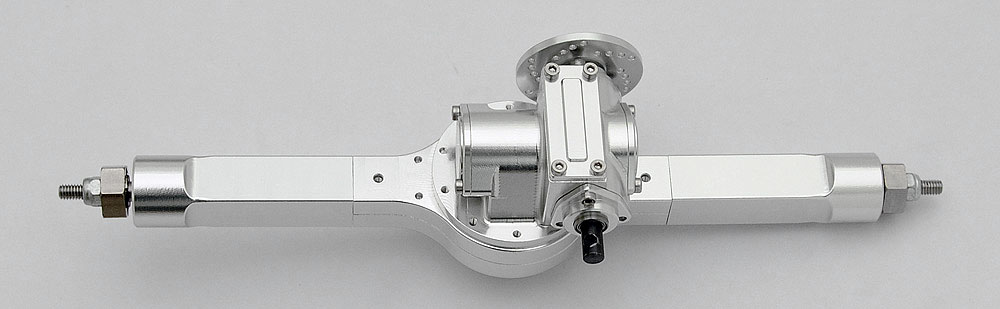

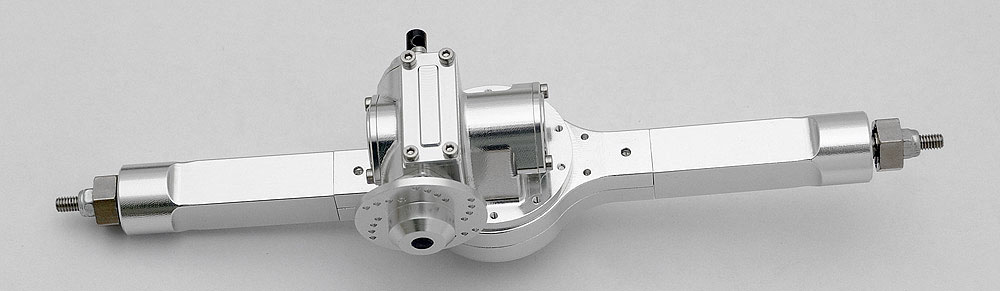

We still have some work on this, hopefully we can ship a set to Brett for inspection next week.

We should be able to ship all pre-orders by early Feb.
rc4wd is offline   Reply With Quote
Sponsored Links
Old 01-21-2009, 01:34 AM   #2
...

Join Date: Sep 2005
Location: USA
Posts: 11,243
Default
Speechless... I've got to get a pair...We need some holes for mounting links and shocks.
run2jeepn is offline   Reply With Quote
Old 01-21-2009, 03:03 AM   #3
Quarry Creeper

Join Date: Jul 2007
Location: EWA BOUND
Posts: 382
Default
Quote:
Originally Posted by run2jeepn View Post
Speechless... I've got to get a pair...We need some holes for mounting links and shocks.
X2
U DOWN is offline   Reply With Quote
Old 01-21-2009, 03:04 AM   #4
Rock Stacker

Join Date: Jul 2006
Location: Europe
Posts: 85
Default
The most beautiful scale axles in the universe!
We need some measures: width, etc.
obsession4x4 is offline   Reply With Quote
Old 01-21-2009, 04:23 AM   #5
Quarry Creeper

Join Date: Nov 2007
Location: in the shop, of corse!
Posts: 308
Default in desperate need of
this baby needs a REAL drivetrain
my never ending shoppin list just got rearranged!!
this is the most beautiful set of axles ive ever seen!!
gonna have to go 4WS now..
Click the image to open in full size.
Click the image to open in full size.
Last edited by gadge; 01-21-2009 at 04:28 AM.
gadge is offline   Reply With Quote
Old 01-21-2009, 06:27 AM   #6
Rock Crawler

500swmag's Avatar

Join Date: Jan 2007
Location: monson
Posts: 532
Default
looks great RC4WD, cant wait to get a set to check out.
500swmag is online now   Reply With Quote
Old 01-21-2009, 07:18 AM   #7
RC4WD Team Mgr/W.Pa.C.

Rckcrwlr's Avatar

Join Date: Nov 2005
Location: Here
Posts: 4,463
Default
I second R2J...

Where will links or leafs and Shocks mount?
Rckcrwlr is online now   Reply With Quote
Old 01-21-2009, 09:38 AM   #8
Rock Crawler

Join Date: May 2004
Location: DFW, Texas
Posts: 666
Default
Pure ART! Great job RC4wd!

Have you finalized a gear ratio for it yet?

What about leaf mounts as well?
cman_1500w is offline   Reply With Quote
Old 01-21-2009, 11:11 AM   #9
Quarry Creeper

Join Date: Dec 2006
Location: Western Mass
Posts: 300
Default
Nice work on both parts! Can't wait to see them in person!

Do you have an assembled weight on these yet?
HC Rc Guy is offline   Reply With Quote
Old 01-21-2009, 12:28 PM   #10
RCC Addict

Join Date: Jul 2008
Location: Sin City
Posts: 1,344
Default
Those are brilliant! Can we get some detailed measurement shots so we can start building chassis?
Culetto is offline   Reply With Quote
Old 01-21-2009, 01:12 PM   #11
Quarry Creeper

Join Date: Nov 2007
Location: nanakuli
Posts: 304
Default
Shooter shackles,super soft springs,blackwells,and a jeep body! That's what ilm talking about. Are you folks gonna anodize these? Something similar to the bully's. Remeber to beef thos axle shaqfts and put those new hex's on them also.
keala is offline   Reply With Quote
Old 01-21-2009, 03:32 PM   #12
Rock Crawler

Join Date: Jun 2007
Location: Great Britain
Posts: 943
Default
Quote:
Originally Posted by run2jeepn View Post
Speechless... I've got to get a pair...We need some holes for mounting links and shocks.
What he said.

I would love to stick a set of these under my Land Rover buggy.
Tupers is offline   Reply With Quote
Old 01-21-2009, 03:42 PM   #13
~The Scale Shop~

STANG KILLA SS's Avatar

Join Date: Apr 2006
Location: KILLEEN TX
Posts: 6,338
Default
agreed, need shock, link and leaf holes. even if its just holes to bolt on TLT stays. http://www.shop.rpphobby.com/product...&productId=584

and get rid of those mushroom head knuckle arms, 1 hole is fine. or line the holes along (parallel) the arm not perpidicular
STANG KILLA SS is online now   Reply With Quote
Old 01-21-2009, 04:13 PM   #14
Practicing my launchs >:)

Robbob's Avatar

Join Date: Oct 2007
Location: boned on the Real East Coast >:|
Posts: 2,288
Default
Click the image to open in full size.

countersink or counter bore the screws on each side of the meatball?
Robbob is offline   Reply With Quote
Old 01-21-2009, 06:48 PM   #15
Rock Crawler

500swmag's Avatar

Join Date: Jan 2007
Location: monson
Posts: 532
Default
Quote:
Originally Posted by STANG KILLA SS View Post
agreed, need shock, link and leaf holes. even if its just holes to bolt on TLT stays. http://www.shop.rpphobby.com/product...&productId=584

and get rid of those mushroom head knuckle arms, 1 hole is fine. or line the holes along (parallel) the arm not perpidicular
The reasoning behind the "mushroom arms" was to give the user the ability to chose which hole would bring the tie rod as tight to the backside of the wheel as possible (effected by wheels with different off set) and then grind the rest of the arm off at an angle if desired. One of those ideas that seemed like a good one at the time.
500swmag is online now   Reply With Quote
Old 01-21-2009, 10:03 PM   #16
I <3 LS3

exesivefire's Avatar

Join Date: Aug 2005
Location: NE Ohio
Posts: 6,593
Default
MOUNTING HOLES?

please dont ruin these with bulky brackets, please?
exesivefire is offline   Reply With Quote
Old 01-22-2009, 11:47 AM   #17
Rock Crawler

500swmag's Avatar

Join Date: Jan 2007
Location: monson
Posts: 532
Default
Quote:
Originally Posted by run2jeepn View Post
Speechless... I've got to get a pair...We need some holes for mounting links and shocks.
Quote:
Originally Posted by STANG KILLA SS View Post
agreed, need shock, link and leaf holes. even if its just holes to bolt on TLT stays. http://www.shop.rpphobby.com/product...&productId=584

and get rid of those mushroom head knuckle arms, 1 hole is fine. or line the holes along (parallel) the arm not perpidicular
Quote:
Originally Posted by exesivefire View Post
MOUNTING HOLES?

please dont ruin these with bulky brackets, please?
Alright all check this out, this is basically what my original intention was going to be for a link mount. It's kind of similiar to the real 1:1. I don't think it would create much of a hang up on the bottom of axle. Let me know what you guys think, I'll clean it up and send it off to RC4WD if you all think this will be ok.
Click the image to open in full size.
-500
500swmag is online now   Reply With Quote
Old 01-22-2009, 04:40 PM   #18
Rock Stacker

Join Date: Jul 2006
Location: Europe
Posts: 85
Default
Quote:
Originally Posted by 500swmag View Post
Alright all check this out, this is basically what my original intention was going to be for a link mount. It's kind of similiar to the real 1:1. I don't think it would create much of a hang up on the bottom of axle. Let me know what you guys think, I'll clean it up and send it off to RC4WD if you all think this will be ok.
Click the image to open in full size.
-500
Perfect for the linked trucks, but I also hope that Hua can make a leaf spring mount (like the one for the T-Rex axle #X-394) to allow to fit those axles under their Bruiser chassis (or the Tamiya original one, of course)


P.S:
Those axles have an awesome looks so, please, don't make a lot of holes!!
Last edited by obsession4x4; 01-23-2009 at 03:41 AM.
obsession4x4 is offline   Reply With Quote
Old 01-22-2009, 06:56 PM   #19
Rock Crawler

500swmag's Avatar

Join Date: Jan 2007
Location: monson
Posts: 532
Default
Quote:
Originally Posted by obsession4x4 View Post
Perfect for the linked trucks, but I also hope that Hus can make a leaf spring mount (like the one for the T-Rex axle #X-394) to allow to fit those axles under their Bruiser chassis (or the Tamiya original one, of course)


P.S:
Those axles have an awesome looks so, please, don't make a lot of holes!!
I figured something like this would get the job done for leafer builds.
All RC4WD needs to do is make some squared U bolts.
Click the image to open in full size.
500swmag is online now   Reply With Quote
Old 01-22-2009, 08:09 PM   #20
Pebble Pounder

Join Date: Feb 2004
Location: Manitoba, Canada!
Posts: 189
Default
The bracket for the four link will not allow for a double triangulated suspension. Need some mounting holes so we can fab a crossmember for the upper links. I also agree with RobBob countersink those two axle tube screws.
Mikey007 is offline   Reply With Quote
