Beadlock Wheels for Baja 1/5 Buggy

[rc4wd]

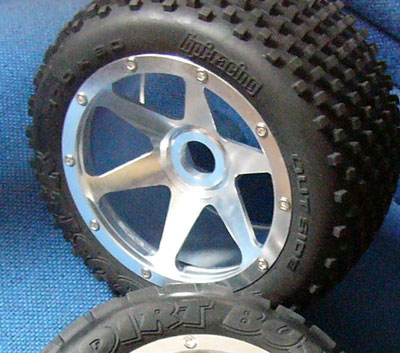

Yes it's finally here:



this is the biggest and most expensive wheel that we have ever made. We will take some better pictures next week.

[rc4wd]

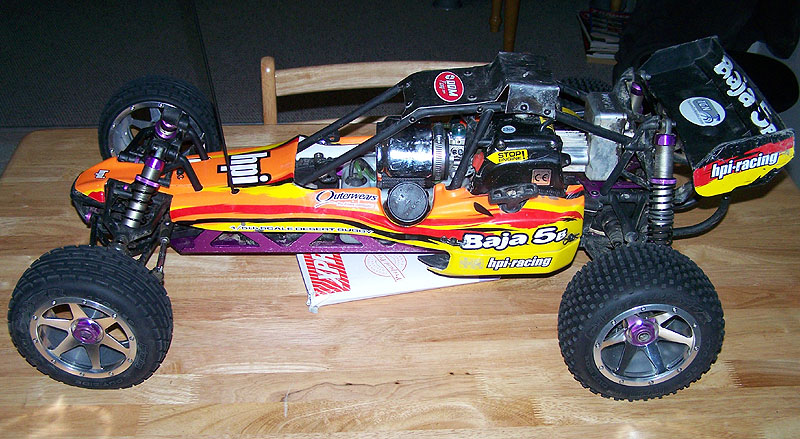

We just got a picture from our customer:

[TLTCrawlin]

Nice! I bet those are pretty spendy!! Im guessing same as two sets of 2.2 beadlocks?

[Moondust1950]

buggy is $999.00 on tower

FEATURES: Chassis: Narrow channel monocoque design 0.16" (4mm) thick, purple
in color constructed of aircraft grade 6061 T6 aluminum
Drive: Rear wheel gear drive
Engine: 2 cycle 1.40 cu in (23cc) gasoline with pull starter,
dual element foam air filter, primer, choke and kill switch
Exhaust: Steel muffler routed to rear of vehicle with aluminum pipe
Radio: HPI TF-10 3-channel FM 27MHz with steering and throttle trim
steering dual rate, transmitter does not have charge jack, 3rd
channel switch is for optional accessories, receiver has adjustable
failsafe, 6V 2000mAh rechargeable receiver pack, AC charger
water resistant housing on chassis with external charging jack and
rubber cap for easy crystal changes
Servos: Water resistant with high torque 25kg-cm steering servo
Receiver Battery: 2000mAh, five sub C-cell 6V rechargeable pack
Clutch: Automatic centrifugal type
Ball Bearings: Full set included
Shocks: Four Hyper Adjust Piston aluminum shocks with 5 externally
adjustable dampening settings and dual rate springs for
progressive dampening action on all surfaces
Main Gear: 57 tooth
Gearbox: Sealed
Differentials: Viscous Torque Control can be tuned using different
weight diff oils, hardened metal planetary gears
Brakes: Ventilated dual disc
Front Tires: HPI Dirt Buster Rib Pattern M compound 2.4" (60mm) wide
6.7" (170mm) outer diameter
Rear Tires: HPI Dirt Buster Block Pattern S compound 3.1" (80mm)
wide, 6.7" (170mm) outer diameter
Wheels: 5-spoke, nylon 3-piece bead lock, bead is bolted to wheel
to hold tire securely in place-no need for tire glue
Body: Pre-painted buggy type with decals applied
Rear Wing: Molded black plastic with decals applied
Roll Cage: Baja style high impact nylon protects engine and body
from crash damage
Suspension: Fully adjustable, long travel double wishbone
Caster: Adjustable, with shim 22 / 25.5* stock / 29 degrees
caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Warranty: 2-year limited

INCLUDES: HPI Baja 5B RTR buggy with 1.40 cu in (23cc) gasoline engine 27MHz
FM radio, two water resistant servos, 3.4oz (100cc) 2-cycle oil,
2oz (60cc) shock oil, 1oz (30cc) diff oil, 1oz (30cc) air filter
oil, tube of gear grease, 2000mAh receiver pack, wall charger, body
with wing, extra air filter, wrenches, decal sheet and illustrated
instruction manual

REQUIRES: Unleaded Gasoline: 87-93 octane, mix gasoline and two cycle oil
at 25:1 ratio
Transmitter Batteries: 8 AA
Screwdriver: Flat blade, 3/16" (4-5mm) wide

SPECS: Vehicle-
Length: 32.2" (817mm)
Front Width: 18.1" (460mm)
Rear Width: 18.9" (480mm)
Height: 10" (255mm) with 1G, 11" (280mm) with 0G
Ride Height: 3" (76mm)
Suspension Travel: Front 3.7" (95mm), Rear 3.9" (100mm)
Weight: 21.3 lbs (9.6kg)(approx.)
Wheelbase: 22.4" (570mm) wheels on-center front-to-rear
Front Tread: 15.0" (382mm)
Rear Tread: 15.8" (402mm) wheels on-center side-to-side
_ Front Track: 17.4" (442mm)
Rear Track: 18.1" (460mm) outer edges of wheels
Gear Ratio: 8.382:1
Tires- Front: 2.4" (60mm) x 6.7" (170mm)
Rear: 3.1" (80mm) x 6.7" (170mm)
Body-
Length: 22.9" (581mm)
Width: 8.8" (224mm) at rear wheels (widest point)
3.25" (82mm) ahead of front wheels (thinnest point)
Height: 4.75" (121mm) at highest point

[wyattburp]

Those make me want a Baja that much more! Nice rims!

[rc4wd]

We got another picture:



Just an update: Right now we wont sell these wheel retail anymore. If any of you guys want to get them, you can get it at teamgonads.com
