Thread: LCC with a micro esc/receiver

Reply

LinkBack Thread Tools Display Modes
Old 04-04-2010, 10:56 PM   #1
Quarry Creeper

Join Date: Aug 2009
Location: Acushnet Mass near cape cod
Posts: 269
Default LCC with a micro esc/receiver

I am finally buying a losi comp crawler and I will be using a esc/receiver from a losi micro rock crawler. I tested it out in my MRC with a 1320mah 7.4lipo works fine other than not having a drag brake for the MRC but that wont be needed for the LCC because of worm gears. All I will need to buy is a motor and servo.Any suggestions for a good servo and motor that will go ez on the esc ?
droopmodmrc is offline   Reply With Quote
Sponsored Links
Old 04-05-2010, 06:59 AM   #2
Newbie

Join Date: Mar 2009
Location: Kalispell
Posts: 34
Default

If you do some looking you'll find many threads on this but I really think that the speed control will be insufficient as the only luck people seem to have with something to the tune of a 21t Titan motor or HH Puller motor and I highly doubt that little speed control could handle the amperage required to run either of those motors.
nevrdun is offline   Reply With Quote
Old 04-05-2010, 08:51 AM   #3
Quarry Creeper

Join Date: Aug 2009
Location: Acushnet Mass near cape cod
Posts: 269
Default

well i will use it in my mrc for a while and see if it burns up ,and in theory I should be able to just run a 370 can in the comp crawler cause the mrc has enough power with the 370 motor and this esc seems to handle that motor just fine. there is a scaler build in rc car action mag that uses this esc/receiver in his 1/10 no problem so i know it will work
droopmodmrc is offline   Reply With Quote
Old 04-05-2010, 09:36 AM   #4
Quarry Creeper

Join Date: Oct 2009
Location: Florida
Posts: 288
Default

You need to video this from the first time you put the batteries in, until everything smokes... I wanna see the fireworks!
artsifrtsi is offline   Reply With Quote
Old 04-05-2010, 09:55 AM   #5
Quarry Creeper

Join Date: Aug 2009
Location: Acushnet Mass near cape cod
Posts: 269
Default

Im not over volting the esc its 7.4 lipo ready so there will be no smoke unless i don't watch my heat .

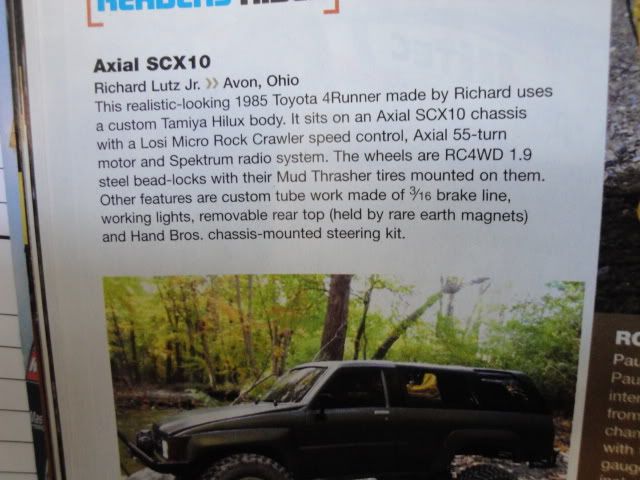

[IMG][/IMG]
so yeah, I am not worried about it
droopmodmrc is offline   Reply With Quote
Old 04-05-2010, 12:37 PM   #6
Rock Crawler

Join Date: Nov 2004
Location: in a basement in Kalispell, MT
Posts: 857
Default

I would guarantee a typo.

1) I can't believe a micro esc running anything bigger, let alone a 370 from a mini.

2)a 370 isn't powerful enough for Comp Crawlers worm axles.

Sadly, I think you're just going to have to buck up and spend some money on decent esc and motor.
skid is offline   Reply With Quote
Old 04-05-2010, 02:15 PM   #7
Newbie

Join Date: Mar 2010
Location: Moore, OK
Posts: 23
Default

I'm really new to crawling, but I have a hard time believing that an ESC designed for a 1/24 model will be sufficient to drive a 1/10 properly. If that were the case Losi would put that same ESC in the Mini Rock Crawler and the Night Crawler. I mean, I could put a Chevy Aveo 1.6L engine in my Suburban, and it may even get the vehicle moving down the road, but it certainly won't perform like the 6L that's in it now.
CaptCrunch is offline   Reply With Quote
Old 04-05-2010, 02:58 PM   #8
Newbie

Join Date: Mar 2009
Location: Kalispell
Posts: 34
Default

Quote:
Originally Posted by droopmodmrc View Post
Im not over volting the esc its 7.4 lipo ready so there will be no smoke unless i don't watch my heat .
so yeah, I am not worried about it
Voltage isn't the issue here. Amperage is. Running a 540 sized motor that is sufficient enough for a comp crawler is going to draw much more current than a 370 sized motor. If you use a 370 sized motor in the comp crawler not only is it not going to crawl but it won't get out of its own way.
nevrdun is offline   Reply With Quote
Old 04-05-2010, 03:50 PM   #9
Quarry Creeper

Join Date: Aug 2009
Location: Acushnet Mass near cape cod
Posts: 269
Default

ok well im not saying you are wrong . but i guess that dudes scx10 that made this months issue of rc car action mag is gonna be a total flop
droopmodmrc is offline   Reply With Quote
Old 04-05-2010, 03:55 PM   #10
MODERATOR™

EeePee's Avatar

Join Date: Jul 2004
Location: Ohio
Posts: 18,928
Default

Just ask him: 4Runner build
EeePee is offline   Reply With Quote
Old 04-05-2010, 03:56 PM   #11
Rock Crawler

Join Date: Sep 2009
Location: My Old Kentucky Home....
Posts: 659
Default

There's one major difference between an SCX-10 and the LCC/LNC: Worm gears. Worms require a lot more juice from electronics than the Axial axles do.
silentcircus is offline   Reply With Quote
Old 04-05-2010, 07:26 PM   #12
Pebble Pounder

Join Date: Jan 2008
Location: Wa state
Posts: 174
Default

Quote:
Originally Posted by silentcircus View Post
There's one major difference between an SCX-10 and the LCC/LNC: Worm gears. Worms require a lot more juice from electronics than the Axial axles do.

+1 ^^^

The worms are the key here.. Axial axles are very free moving axles.. LCC worm drive axles have an extreme amount of friction...thus requiring a lot more power to move them. :0)

....Just cause someone uses a small esc in an Axial Scaler....doesn't mean it'll work in an LCC.

But, it's your truck........ Maybe you should run the first two battery packs "on video" so you can prove everyone who has already tried it wrong! ...
Jughead is offline   Reply With Quote
Old 04-05-2010, 08:36 PM   #13
Quarry Creeper

Join Date: Aug 2009
Location: Acushnet Mass near cape cod
Posts: 269
Default

OK I got to the bottom of it you was right it was a big fat type-o

A losi MRC esc was used


Yikes get this thing out of my mini crawler shes gonna blow !!!!!
droopmodmrc is offline   Reply With Quote
