1/12 WW2 DUKW - Amphibious King Kong CA30 Build

SpareParts

Newbie
Subscribed Member
Joined
Feb 14, 2020
Messages
32
Location
Seattle
A few months ago my wife was wondering out loud about how neat it would be to have an RC Wisconsin Dells Duck. I have never built a model from scratch before but you don't look a gift horse in the mouth so I immediately started looking for a suitable 6x6 chassis!

Before I get too long winded, here's a picture of the mostly finished product:


full


Details:
6x6 King Kong CA30 chassis kit
Drive motor - Hobbywing Fusion Pro 2300kv (started with 1200kv SE, wanted more speed)
Prop Motor - 55t 550 brushed and Hobbywing 1040
Length - 31"

For some additional background, my wife and I are from the midwest and my wife in particular spent a good amount of time in the Wisconsin Dells as a kid. In the Dells there are two tour companies that run genuine ww2 ducks. Ours is modeled off the Original Wisconsin Ducks paint scheme.

Further background on the build, it was about mid May 2024 when my wife had the idea. We had a trip planned in July to fly back to the midwest to see family and friends and I thought it would be terrific to have the duck built and ready to take on the trip. That left me...about a month to plan and build an amphibious model from scratch. No sweat.

Also I had never built anything from scratch before.

There are a few other DUKW builds out there in various scales, but most focus on the scale details/looks. I really wanted to focus on the functionality because I wanted to play with this thing. So I happily sacrificed scale looks and exact proportions in favor of function. To that end I figured I needed a quality 6x6 chassis to start with and I found the King Kong CA30 chassis kit. This thing is quite high quality, about the right size for the dukw, and not tooooo expensive. The biggest downside is that it comes mostly prebuilt and you just assemble the frame rails.

full


The I started trying to figure out how to wrap a boat hull around this truck chassis. Unfortunately I don't have a 3d printer and I still haven't tried any computer modeling software, so I did all this on paper and in my head using various drawings and pictures I found online. I even did the thing where you print a giant picture from Paint on several sheets of paper then tape them together. It was like making posters in elementary school again!

Once I had some idea of the size, I mocked it up with corrugated plastic and poster board to see if it really was possible. All along the way my biggest concern was how do I waterproof the 3 spinning driveshafts running from the transfer case to the axles, and where does everything fit in the hull. And also I wanted maintenance to be possible because I wanted to play with this thing so I needed to be able to remove everything.

full

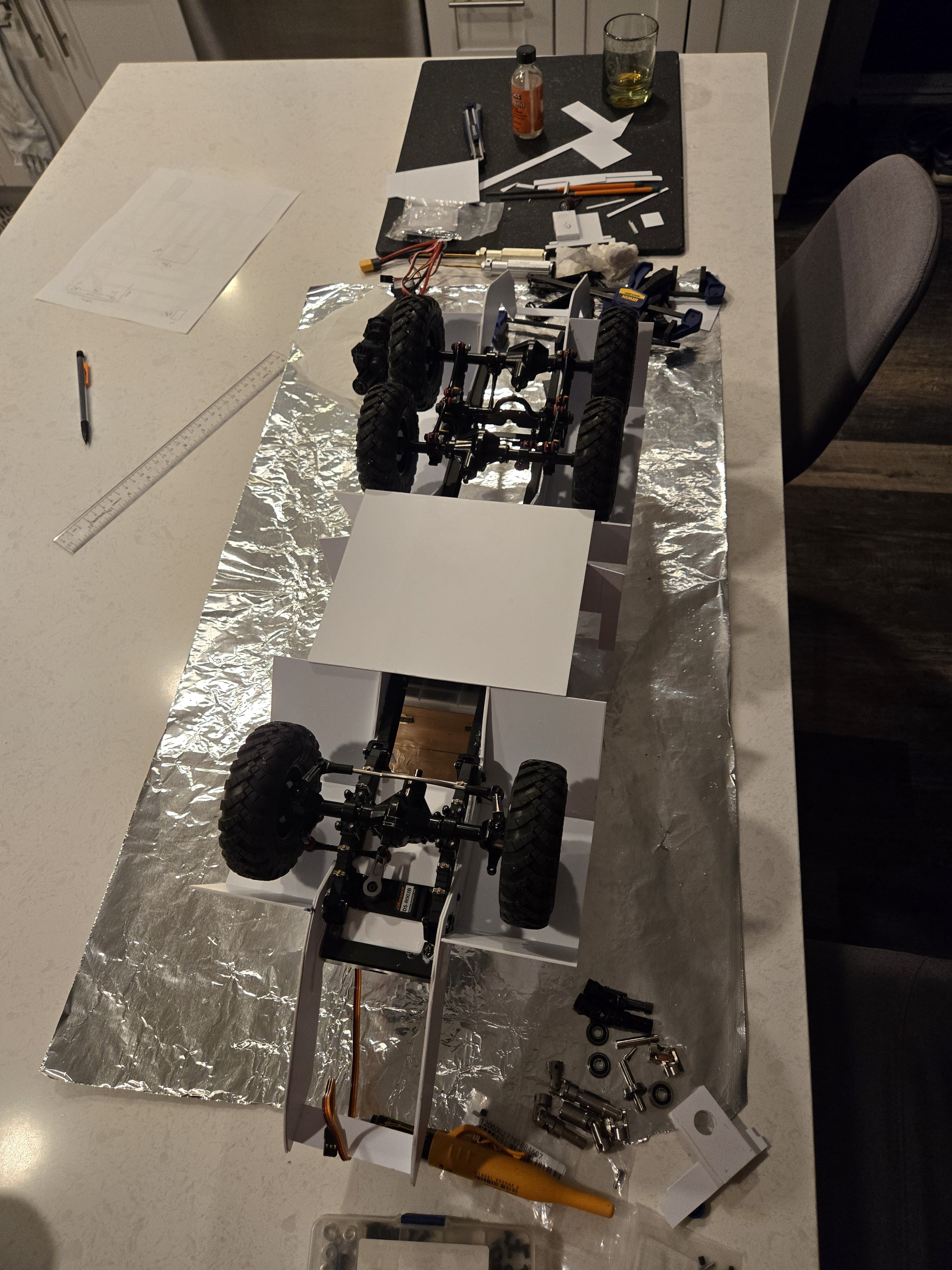

The mock up seemed to be a success and it all seemed possible, though many questions remained. But it was good enough to commit to buying more materials. I decided to build it out of sheets of 1mm styrene so I ordered some giant sheets on ebay. The total length was around 31" so I needed the big stuff. Then I started drawing out the largest pieces and trying to think through the entire build so I could use the styrene as efficiently as possible. This was already going to be an expensive build without needing to buy more plastic. Then lots and lots of cutting. My hands hurt.

full


And I think that's where I'll leave it for this first post. It was a long build; only took a few weeks but I worked at a fever pitch trying to have it done by July. I have all the pics in an album but I'll add to this post as I have time. Definitely the most impressive thing I have ever built and I am quite proud of it!

That's rad and even better that it's functional. Interested to see how you got it to be amphibious when you get to it.

I'm also from the Midwest. Can't remember how many times I drove past all the Wisconsin Dells and ride the ducks signs going from Mpls to Chicago/MI/Ohio to see friends and family. Never rode the ducks.

Maybe next time I'm back in the area with my kid.

Thanks for the interest guys!

The duck ride is definitely worth it next time you're in the area. There are cheesy tour jokes as you would expect but the ride through the woods is like a rollercoaster.

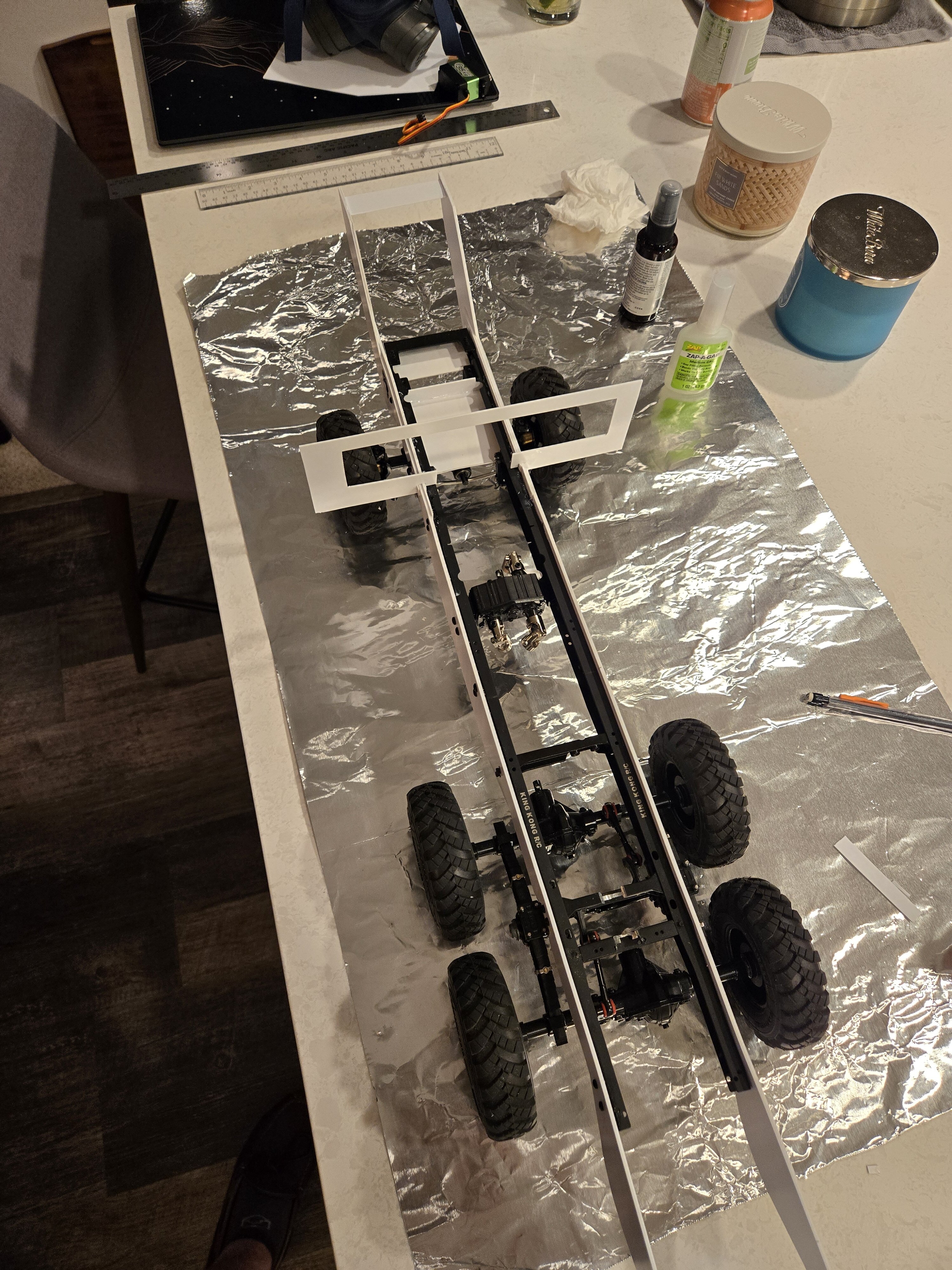

I left off doing a lot of cutting to get the side rails ready. These would create the internal framework for the hull and set the length and profile. I made them out of 3 layers of the 1mm styrene glued together with plastic weld. I attached these to the existing King Kong frame rails using screws going into most of the important cross members. All along I was trying to keep maintenance in mind so I didn't want to bury any important screws. It was very exciting to start to see it take shape.

full



Then I started playing around with where the motor/transmission and the prop motor would go.

full



I needed to settle on locations for the two motors so I could build mounts for them before they were encased in a big plastic tub. Important to try to keep in mind that I was trying to finish this build in just a few weeks so I was frantically building every night after work and in the morning before work. For those few weeks I'm pretty sure I was building the RC duck in my dreams. To call it an obsession would be an understatement.

With the drivelines kind of figured out, it was just time to start gluing plastic to plastic.

full




full



full


full

This post is just going to be a bunch of pictures of gluing stuff on. I used the plastic weld in the little orange bottle and it was great. Only later did I learn that the same company sells a white bottle of Plastruct Bondene which is a bit more potent for ABS/styrene. Using solvent to glue the styrene together was very fun as it dries quickly and holds very well. Just try to wear a respirator and have the windows open because it is some nasty stuff.

I also made extensive use of the tiniest clamps that irwin sells. They were extremely helpful. I also used many wooden blocks and some machinist blocks. I tried to keep things square but only sort of succeeded.

full



full




full



full



full



full

Now it is really taking shape! Getting to this stage was a huge victory but attaching the sides was scary. Once they were on I would lose all the easy access to the inside.

And yes I was very lucky to work on the kitchen island! It was the largest, flattest surface which really came in handy when cutting up big sheets of plastic. But I knew I had to move very fast before my project wasn't welcome in the kitchen any longer....

full


Just a few holes to patch before the float test.
full



A good look at the drivelines and suspension. I'm very happy to say that I can still remove all of this with just a few screws for painting and maintenance.

full


It looks like a freaking duck!!!!

full
