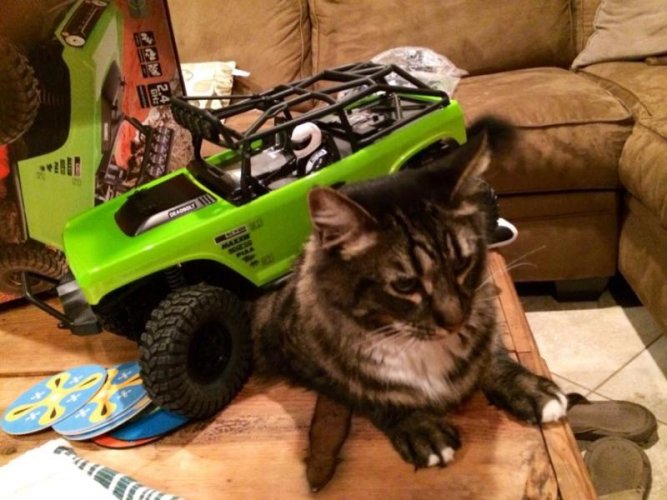

The YETI is finally here! I CANNOT wait to drive this rig again! But first, I need to disassemble it to take some pics of the internals like the transmission.
Specifications:
Radio: Axial 2-channel AX-3 2.4GHz w/reverse & trim settings
Receiver: Axial AR-3 2.4gHz 3-channel
Servo: (1) Tactic TSX45 metal gear, dual ball bearing steering servo
ESC: Axial Vanquard AE-3 (Developed by Castle Creations for Axial)
Motor: Axial Brushless 3150KV 4 Pole Motor
Battery: 2S or 3S LiPo Pack (batteries not included)
NOTE: BATTERY MUST HAVE DEANS ULTRA PLUG CONNECTOR
Dimensions:
Length: 19.5" (495mm)
Width: 12.3" (312mm)
Height: 7.7" (195mm)
Wheelbase: 14.2" (360mm)
Ground Clearance: 2" (50mm)
Weight: 6.5lbs (2.9kg)
Features:
Chassis: Plastic tub type with bolt-on 4 link mount for rear suspension
Shocks: Aluminum body, adjustable threaded bodies with single coilover spring
Steering: Updated dual shear steering rack
Transmission: Single speed with brushless motor gearing (2nd gear
fixed), adjustable motor mount, dual slipper clutch, 2-speed optional gear set available
Differentials: Front Diff is Open, Rear Diff is locked
Front Suspension: EXO type with new front steering knuckle
Rear Suspension: AR60 rear solid axle, multiple tuning options, long travel rear sway
bar, EXO suspension arms, anti squat adjustments built into four link mounts at chassis, lower links designed to hold optional dual shocks
Driveshafts: WB8 HD rear driveshaft with new larger diameter cross pin (2x11mm)
Front Bumper: New KOH style with light mounts, and compression mount
Body: Molded lexan, one-piece with separate roof, scale accessories spare tire mount, scale interior with driver and passenger helmet
rear cage captures upper shock mounting points and includes integrated scale fuel cell
Battery Tray: Fully adjustable and easily accessible
Receiver Box: Waterproof
Tires: Axial 2.2 BF Goodrich Krawler T/A
Wheels: 2.2" Walker Evans Racing
Top Speed: 32mph
Specifications:
Radio: Axial 2-channel AX-3 2.4GHz w/reverse & trim settings
Receiver: Axial AR-3 2.4gHz 3-channel
Servo: (1) Tactic TSX45 metal gear, dual ball bearing steering servo
Torque: 4.8V 143 oz-in / 6.0V 151 oz-in
ESC: Axial Vanquard AE-3 (Developed by Castle Creations for Axial)
Waterproof
Forward / Reverse
Drag Brake
3S LiPo cutoff
Forward / Reverse
Drag Brake
3S LiPo cutoff
Motor: Axial Brushless 3150KV 4 Pole Motor
Battery: 2S or 3S LiPo Pack (batteries not included)
NOTE: BATTERY MUST HAVE DEANS ULTRA PLUG CONNECTOR
Dimensions:
Length: 19.5" (495mm)
Width: 12.3" (312mm)
Height: 7.7" (195mm)
Wheelbase: 14.2" (360mm)
Ground Clearance: 2" (50mm)
Weight: 6.5lbs (2.9kg)
Features:
Chassis: Plastic tub type with bolt-on 4 link mount for rear suspension
Shocks: Aluminum body, adjustable threaded bodies with single coilover spring
Steering: Updated dual shear steering rack
Transmission: Single speed with brushless motor gearing (2nd gear
fixed), adjustable motor mount, dual slipper clutch, 2-speed optional gear set available
Differentials: Front Diff is Open, Rear Diff is locked
Front Suspension: EXO type with new front steering knuckle
Rear Suspension: AR60 rear solid axle, multiple tuning options, long travel rear sway
bar, EXO suspension arms, anti squat adjustments built into four link mounts at chassis, lower links designed to hold optional dual shocks
Driveshafts: WB8 HD rear driveshaft with new larger diameter cross pin (2x11mm)
Front Bumper: New KOH style with light mounts, and compression mount
Body: Molded lexan, one-piece with separate roof, scale accessories spare tire mount, scale interior with driver and passenger helmet
rear cage captures upper shock mounting points and includes integrated scale fuel cell
Battery Tray: Fully adjustable and easily accessible
Receiver Box: Waterproof
Tires: Axial 2.2 BF Goodrich Krawler T/A
Wheels: 2.2" Walker Evans Racing
Top Speed: 32mph
