Tamiya XV-01 Upgrades

[Grusha]

I have noticed that there is no list upgrades for Tamiya XV-01. I thought that we should gather a list on one place so you don`t need to look at all threads.
Thought of a recommended and one other List.

Recommended:
54376 XV-01 Separate Suspension Mounts (1XJ)

54377 XV-01 Separate Suspension Mounts (1XM)

54379 XV-01 Aluminum Suspension Mount (XJ) X2

54378 XV-01 Slipper Clutch Set
Use whit
54218 TRF201 48 Pitch Pinion Gear 24T,25T

54450 18T Aluminum Pulley (for TA06 and XV-01) x2

54448 XV-01 Reinforced Drive Belt (573mm)

Others:

54451 XV-01 Aluminum Steering Arms

54454 XV-01 Aluminum Steering Bridge

42102 TRF SPECIAL DAMPER (HARD BLACK COATING) 4PCS

54516 XV-01 Assembly Universal Shaft (Rear/2pcs.)

54515 XV-01 Assembly Universal Shaft (Front/2pcs.)

54465 XV-01 Dirt Spring Set (Hard, Medium, Soft) x2

54514 XV-01 Stabilizer Set (Front & Rear)
use whit
53827 RC Stabilizer Rod Stopper

No tamiya
YR-XV01-WRC Aluminum Upgrade Set for Tamiya XV-01

TRA1942 Traxxas Long and Short Rod and Ball Ends // If you have problems whit uniballs don`t stay togheter.

This is what I've come up on now.
Please fill in. And I refreshes the first Post.



[cullen colapietro]

http://www.tamiyausa.com/product/rc...&sort=id&direction=desc&offset=1#.Uv60jXMo4m8

Sent from my Nexus 5 using Tapatalk



[Smile]

This list might be redundant when compared to tamiyausa's chart, but tamiya's site does not show what upgrades should be put on first though. Very useful for the newbies!



[TURTLE]

This is what I've come up on now.
Please fill in. And I refreshes the first Post.

I would even go as far as put them in order of the most important things to get first in order if you only get one thing at a time.

1.) 54379 XV-01 Aluminum Suspension Mount (XJ) X2 (rear first)

2.) 54376 XV-01 Separate Suspension Mounts (1XJ)

3.) 54377 XV-01 Separate Suspension Mounts (1XM)

4.) 54448 XV-01 Reinforced Drive Belt (573mm)

5.) 54450 18T Aluminum Pulley (for TA06 and XV-01) x2 (front first)

6.) forward pulley tensioner mod (in my XV-01 thread)

7.) 54451 XV-01 Aluminum Steering Arms

8.) 54515 XV-01 Assembly Universal Shaft (Front/2pcs.)

9.) TRA1942 Traxxas Long and Short Rod and Ball Ends // If you have problems whit uniballs don`t stay together.

10.) 54378 XV-01 Slipper Clutch Set
Use whit
54218 TRF201 48 Pitch Pinion Gear 24T,25T

11.) 54454 XV-01 Aluminum Steering Bridge

To this point this is just a durability/ reliability list, a performance list would start with front CVDs, followed by the long travel shock mod then sway bars.

All of these parts (and then some) and special mods are in my XV-01 thread. "thumbsup"



[BasicMods]

I would also suggest replacing the stock K/KK parts with the Carbon reinforced set #54446. i have broken the K2 part at the tie rod connection two times before upgrading. i haven't broken the carbon reinforced one yet. waiting for this part to be made out of aluminum ... please

<a href="http://s20.photobucket.com/user/PaulyBGood/media/RC%20Cars/WP_001407_zpsaa5117d3.jpg.html" target="_blank"><img src="http://i20.photobucket.com/albums/b232/PaulyBGood/RC%20Cars/WP_001407_zpsaa5117d3.jpg" border="0" alt="VX-01 PArt K2 photo WP_001407_zpsaa5117d3.jpg"/></a>



[TURTLE]

I broke one of these Paul and have not had issues for months now. I am still running a stock plastic one.



[WAFFLE]

Overdrive the front diff: 19T Pulley #SAK-07A from 3Racing works fine (original pulley are 18T), mounted in the rear creates overdrive on front wheels.

Cant take credit for the idea, just the find, post #25: Tamiya XV-01 - Page 2 - R/C Tech Forums



[TURTLE]

Yeah don't do that unless you only plan on drifting. The XV01 shares several parts with other Tamiya vehicles (TA06 (I think) and FF03, etc.) But many of those parts are suited more for drift and road use. I think this same topic has been discussed in here before... Things get lost in here pretty easily.



[Smile]

I may be wrong, but overdriving the front diff, from what I know, would not help in drifiting. In my opinion, it may even help decrease excess steering from the front motor set up.



[SerpentCT4S]

I don't know why you want overdrive the front diff.

I'm into drifting also and for counter-steer drifting, you overdrive the rear, so you get more wheel spin in the rear.



[WAFFLE]

You would overdrive the rear for a drift car.


You overdrive the front on a rally car.

Like the center diff does automatically on a 1:1 EVO.

Now, the 1:1 STi does the opposite, in automatic mode, it sends more power to the rear.

I know this isn't apple to apples.

I was just putting it out there as a tuning option. You can also use a 15t pulley from a hpi on the front for the same overdrive effect. or do the opposite and turn it into a drifter.



[TURTLE]

You would overdrive the rear for a drift car.


You overdrive the front on a rally car.

Like the center diff does automatically on a 1:1 EVO.

Now, the 1:1 STi does the opposite, in automatic mode, it sends more power to the rear.

I know this isn't apple to apples.

I was just putting it out there as a tuning option. You can also use a 15t pulley from a hpi on the front for the same overdrive effect. or do the opposite and turn it into a drifter.

My bad, I actually thought you were talking about over driving the rear. I still wouldn't do it. :ror: While it may make it pull a little harder with the front and corner a little better it is going to cause excess wear in the drivetrain. I would still be curious to try it, but already knowing all the parts I have worn through I know this would just cause things in the front end to wear out quicker. Plus plastic pulleys and me don't get along. :ror:



[Michi]

Hi,

does anyone have a nice and tidy solution for the "missing" front belt pulley cover?

Or is there an answer to the question "why did they leave ist open?"... when I put my xv-01 pro together, I thought i lost the part, but there is none...

thx,
Michi



[Michi]

Which aluminium spur gear mount will fit the XV-01? Will the TB-03 one fit? (#54094). Or the FF-03 one? (#54234)Or both?



[Michi]

If you have a motor which has a partially open can, especially on the side of the pinion gear, like this one:
Team Orion Vortex VST2 Pro 540 LW Motor | wemu.ch

I would highly recommend installing a motor plate like this:
https://www.tamiyausa.com/product/item.php?product-id=4305125
or this:
https://www.tamiyausa.com/product/item.php?product-id=84293

or your spur gear and pinion gear will be most likely broken in a short time.

Talking about gears, I changed to M0.4:
https://www.tamiyausa.com/product/item.php?product-id=54227
https://www.tamiyausa.com/product/item.php?product-id=42263

The linked examples have the same ratio as 68T/22T M0.6 as it comes out of the box. The smalles pinion gear that will fit should be 30T. The car runs more silent with M0.4.



[Michi]

Which aluminium spur gear mount will fit the XV-01? Will the TB-03 one fit? (#54094). Or the FF-03 one? (#54234)Or both?

FF-03 (#54234) fits. TB-03 doesn't.



[Captain_Torquepants]

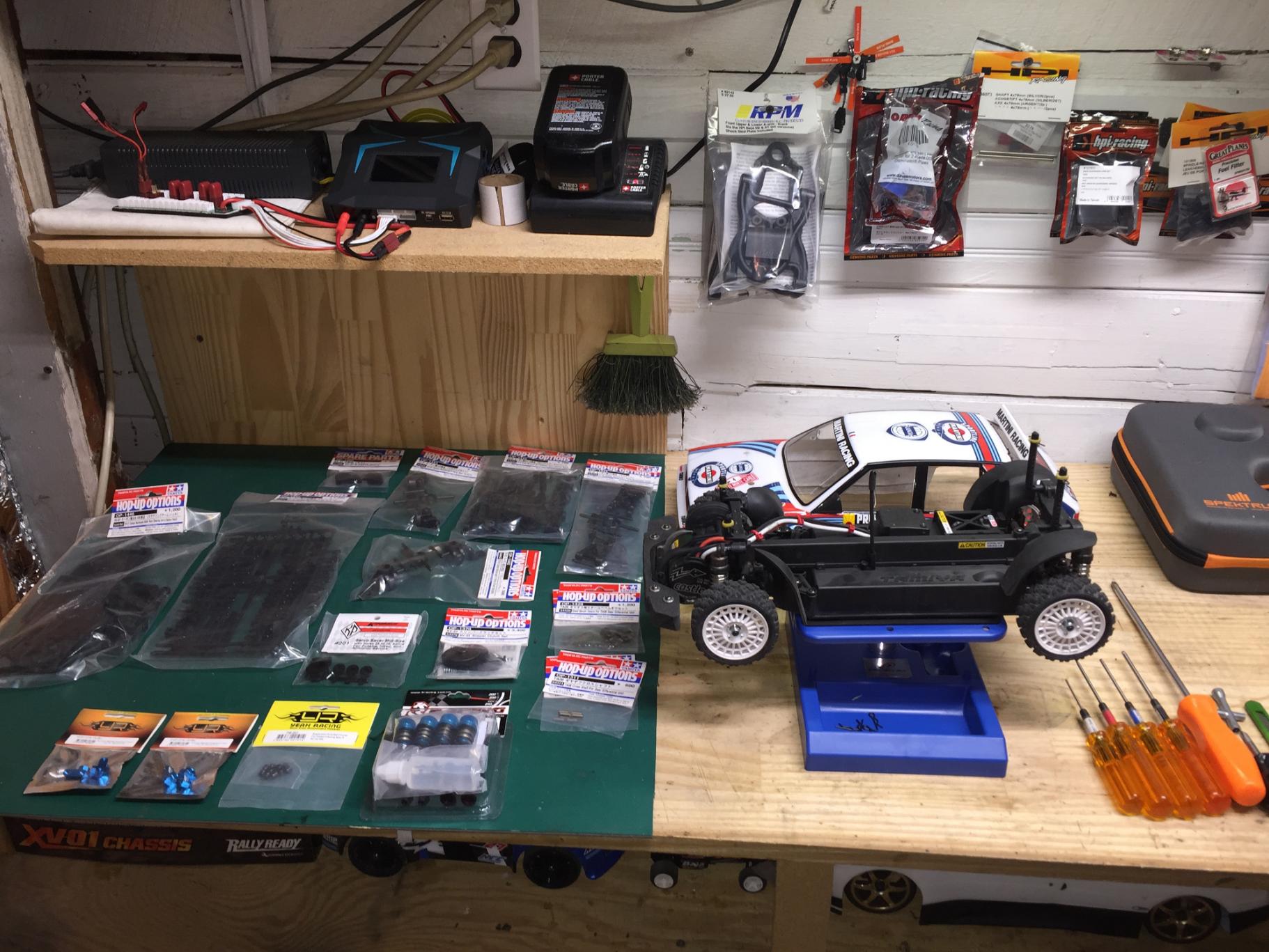

Huzzah! It's upgradin' time!



[fyrstormer]

Hi,

does anyone have a nice and tidy solution for the "missing" front belt pulley cover?

Or is there an answer to the question "why did they leave ist open?"... when I put my xv-01 pro together, I thought i lost the part, but there is none...

thx,
Michi

Dunno if this was ever answered elsewhere, but the reason is: For a completely enclosed belt-drive to work properly, it has to have rubber seals that keep dust out even when the chassis flexes. Otherwise a few bits of grit will find their way in, and every time the car hits a bump, they'll get bounced up into the moving drive belt and sucked through the pulleys. Since the XV-01 doesn't have such a complex enclosure for the belt drive, the lower-front portion of the enclosure is left open so the belt (which is rotating "backwards" compared to the wheels) can sweep debris out of the enclosure.



[tokdl]

Dunno if this was ever answered elsewhere, but the reason is: For a completely enclosed belt-drive to work properly, it has to have rubber seals that keep dust out even when the chassis flexes. Otherwise a few bits of grit will find their way in, and every time the car hits a bump, they'll get bounced up into the moving drive belt and sucked through the pulleys. Since the XV-01 doesn't have such a complex enclosure for the belt drive, the lower-front portion of the enclosure is left open so the belt (which is rotating "backwards" compared to the wheels) can sweep debris out of the enclosure.

Been looking for the reason for this as well, thanks!



[Ausomecrawl]

Thanks for compiling the list. Bookmarked.
