Txt Help

[RedneckJeepster]

I was recently given a TXT chassis with clodbuster axles installed with open diffs but i also have the original axles which are locked, plus the transmission and motors in a box. it has a novak EVA model 3014 speed control installed. i was told all i need is steering servos, a remote, and batteries. the motors attached to the stock tranny are atomic force 17 turn double wind motors. i want to build a crawler that can crawl but if im on something and need wheel speed i can get it. can yall help me. i would greatly appreciate it if yall could.



[JeremyH]

Sooo.....what setup do you plan to run? The TXT axles or the clod axles? Either way, those motors wont have the torque you need.



[j0e]

^
yeah, those motors will be kinda quick on flat ground, but wont really crawl.



[nothinbutpower]

Your first decision is do you want to bash or do you want to crawl? If you want to bash leave the open axles in and run those motors and you should get some nice speed out of it. If you want to crawl you need at least 35 turn motors and use the locked axles. At least that's how I understand it at this point!



[Bigsky]

if you want to bash lock the rear diff only, and that way you can still steer it with one serzo. if you just want to crawl then lock them both and run two high end servos to turn it.



[nothinbutpower]

If you are going to crawl with it then I would go with 55 turn motors and locked front and rear diffs. Novak makes a rooster esc with a 55 turn motor for about $105 that is good. Or find an esc like the EVX from Traxxas and use twin 55 turn motors and have a real crawler! It really depends on what you are looking to do! I have a TXT and I use a 19 turn Speed Gems motor and a Novak Rooster esc. My diffs are both locked for now (going to get an open front diff) but i'm not going to do any major crawling. I'm looking more for mudding and trails and some bashing. Sometimes to find the right motor setup you need to do a little trial and error because not everyone drives the same. So my set up might work great for me but you may not find it works for you!



[Bigsky]

well then yeah if your making it in to a trail/muddin rig, then yes open the front diffs.Some good tires like some mudslingers. but I would go with some 35 turn motors. Gives you a little bit more speed but still having penalty of torque to get you out of the nastiest mud. "thumbsup"

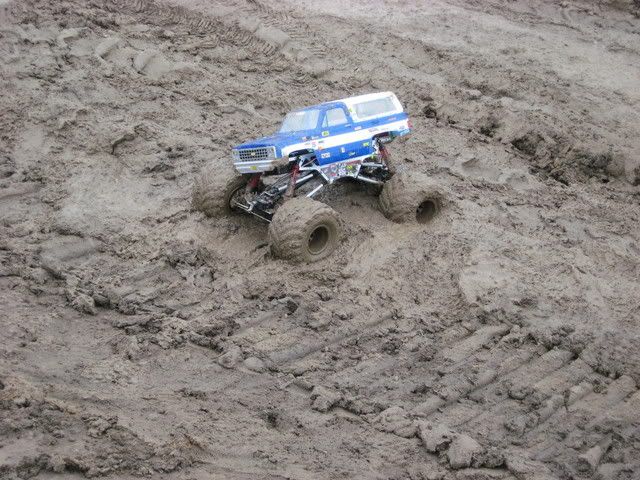

stock (crap tires) two 45 turn motors both diffs locked....that mud stole my shoe!.



[mrthompson]

^^ where did you get that body?? sorry to thread jack but i have 79 fullsize i drive and want a matching rc



[Bigsky]

^^ where did you get that body?? sorry to thread jack but i have 79 fullsize i drive and want a matching rc

np...heres the link http://www3.towerhobbies.com/cgi-bin/wti0001p?&I=LXSBR2&P=7



[mrthompson]

thanks again.
