Unnamed rally car project (1/10)

[Karl_Hungus]

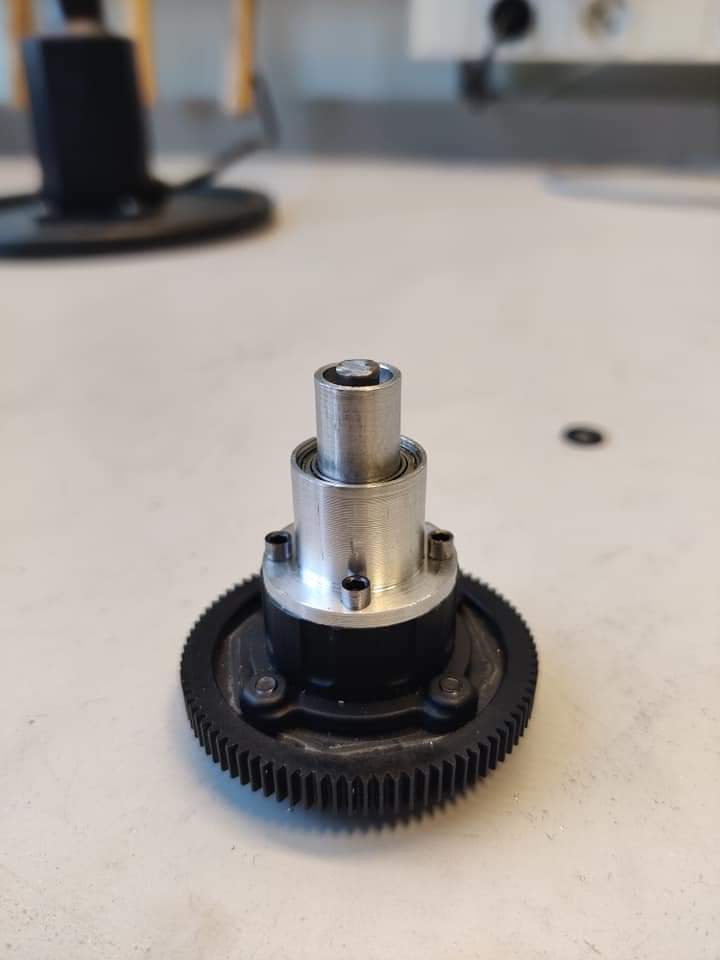

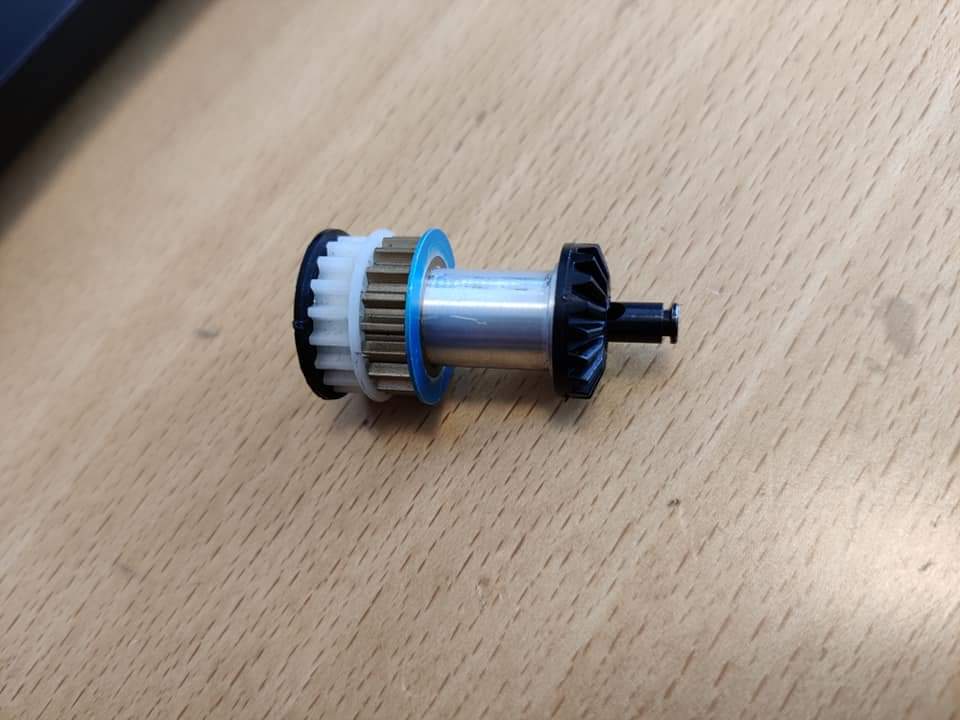

So, decided to build a 1/10 rally car with a center differential and belts instead of shaft. Did some thinking and drawing and ended up with this. Based on a Xray XB4 high volume differential. Put the diff case in the lathe and removed the bottom. Made a new out of 6082-T6 aluminum. Used a diff cross pin from Xray X1 so the bevel gear axle could run through the differential. The concept worked. [emoji16]



[Karl_Hungus]

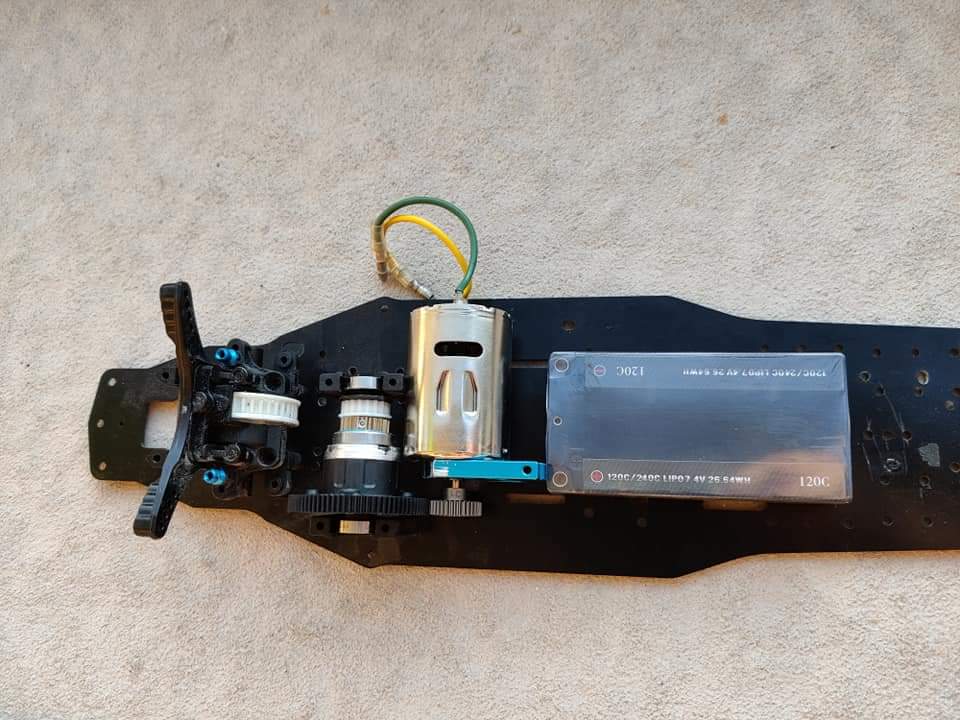

First mockup.

Skickat från min AC2003 via Tapatalk



[Karl_Hungus]

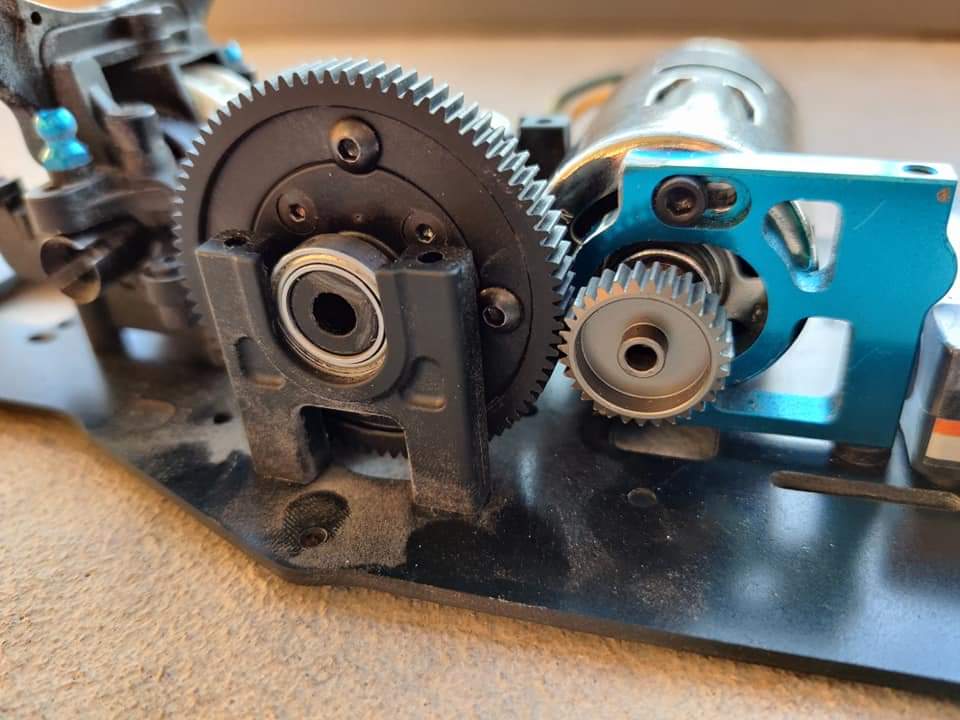

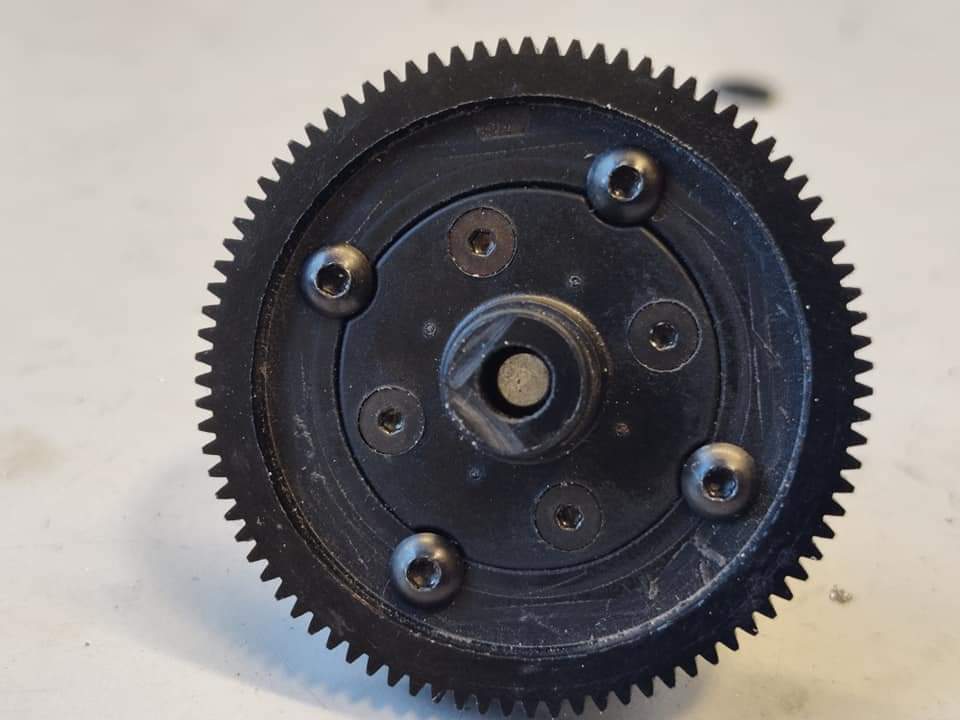

Version 4 of the differential since the first 3 wasn't long enough. Had to "make" a new spur since Xray don't have a 87T for their differentials, only for their slippers.

Skickat från min AC2003 via Tapatalk



[Karl_Hungus]

First batch of belts came. So cool to be able to just make a phone call and order the belts you need for a fraction of the price Tamiya or any other brands charge and have them delivered 2 days later [emoji108]
Only problem is that I ordered too short rear belt [emoji58][emoji58][emoji58]

Skickat från min AC2003 via Tapatalk



[Karl_Hungus]

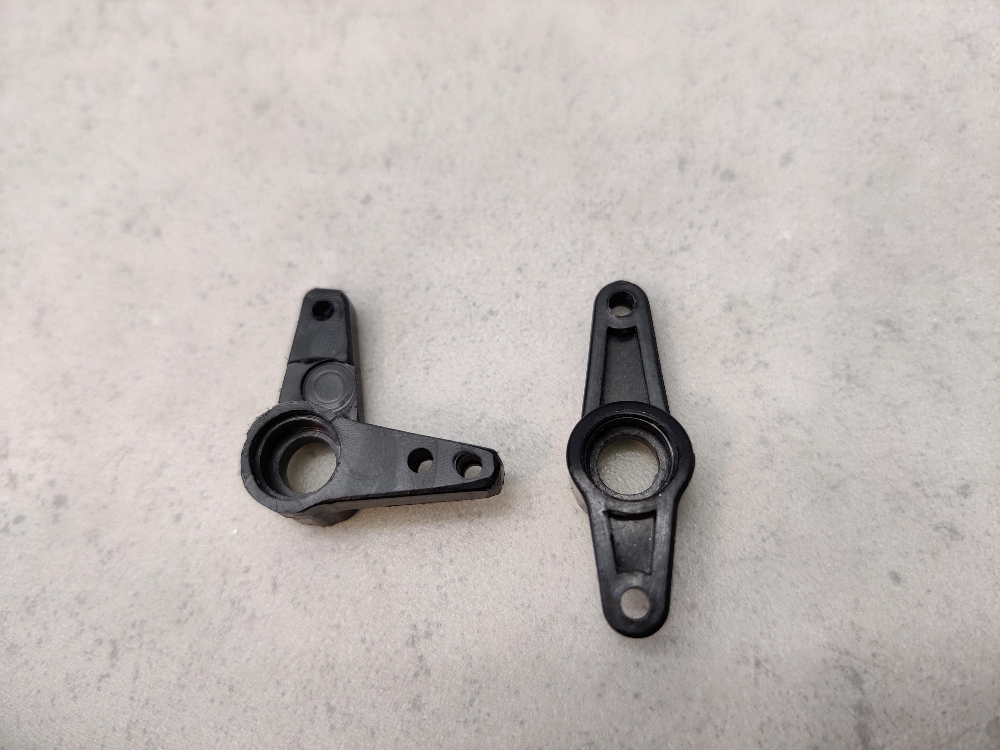

Moving the servo to the Center of the car requires a new part for the steering. And since I can't buy what I need, I had to make one [emoji854]

New on the [emoji118] Old on the [emoji117]

Skickat från min AC2003 via Tapatalk



[Karl_Hungus]

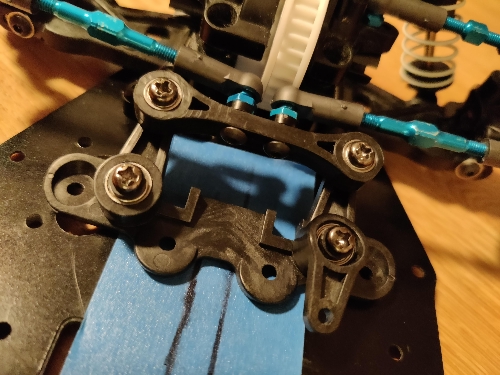

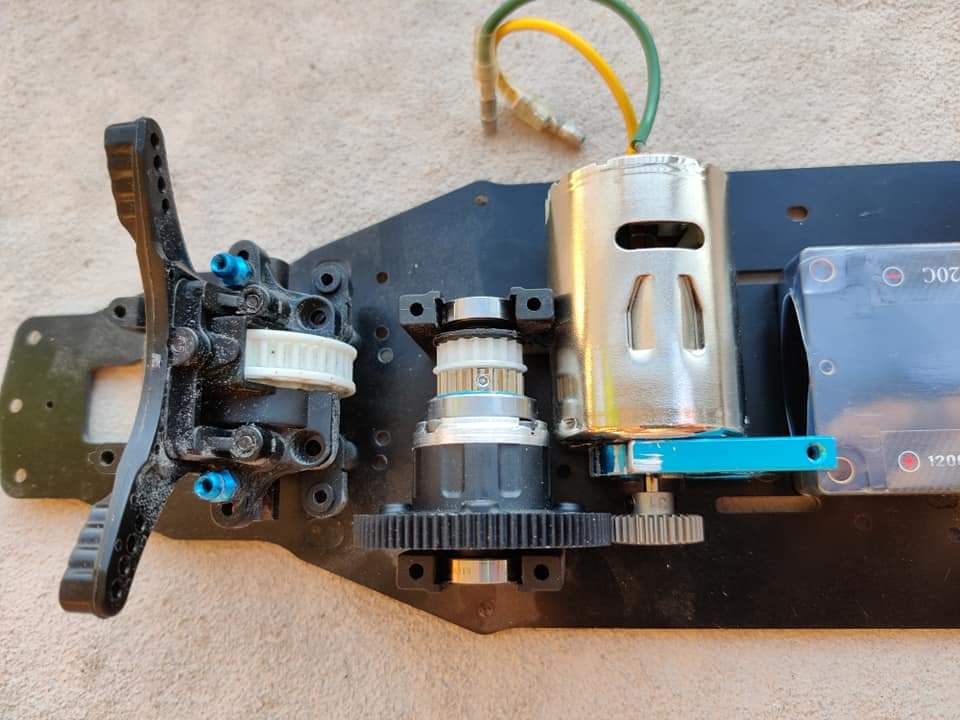

This is what it looks like today, it's too wide at the moment so I'll have to manufacture some differential mounts so I can use the XV-01 suspension mounts instead of the TA-06.
The differential will be mounted on the suspension mounts instead of the chassis to get the clearance needed for the XV-01 suspension arms.

Skickat från min AC2003 via Tapatalk



[meatmonkey]

Wild man. Some out if the box thinking going on here.

Is the center diff still sealed?



[Karl_Hungus]

Yes, sealed and filled ��
But I might have to make a fifth version, not entirely satisfied yet.



[Verskis]

Just found this thread, very interesting project! What has happened to the car since the last post, is it completed? I would love to see and read more about this kind of car building.



[cooper_xl]

Curious on how this will end



[meatmonkey]

Me too.

Any updates?
