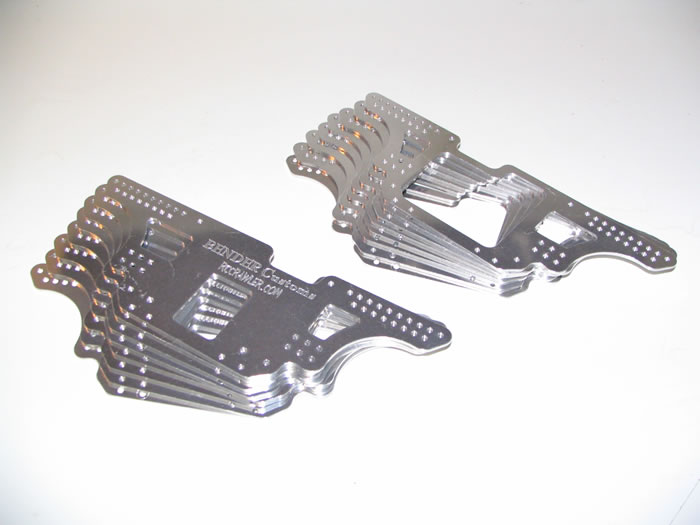

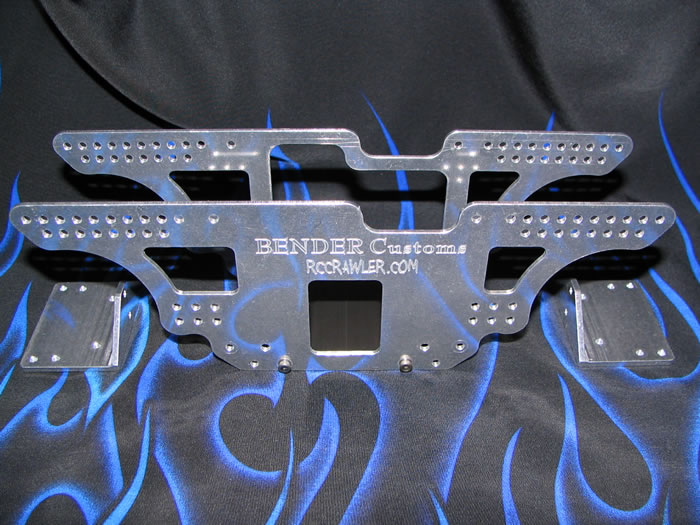

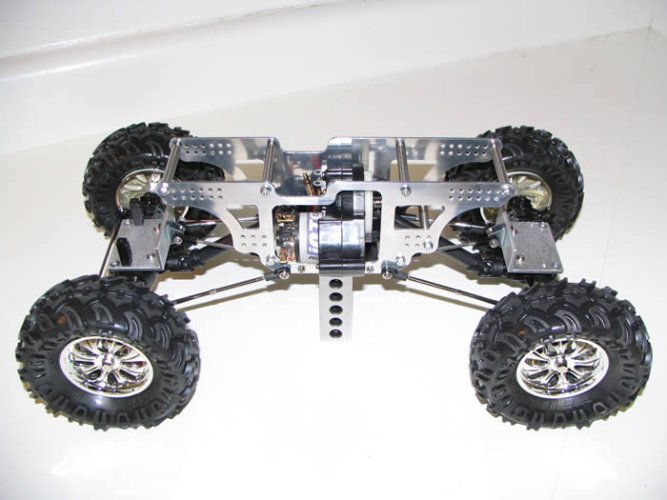

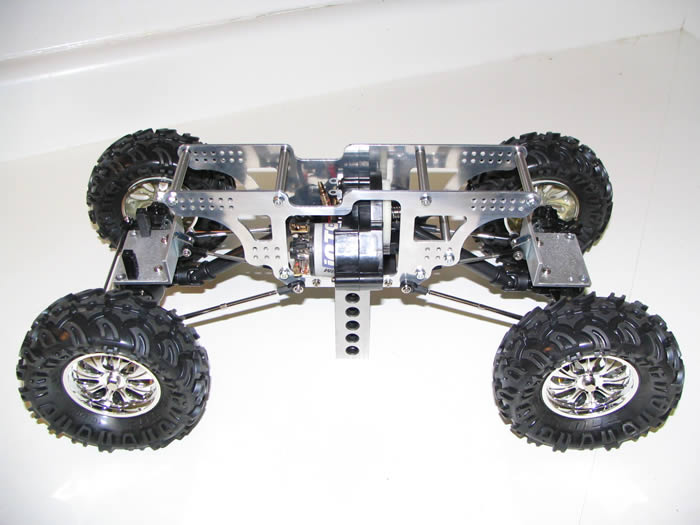

The SW2 chassis is designed to use TLT axles, but can be built up with virtually any axles available. The SW2 utilizes alot of the stock TLT hardware too. For example, the stock body mounts, chassis standoffs, suspension link brackets for the axles and stock 3mm hardware. The stock lower suspension links can be used as upper links, with my servo mounts and Maxx 105mm tierods as lowers. This will give you a 12 1/2" wheelbase, with about 3" of chassis clearance.
This chassis is designed to give the end user alot of options, with numerous upper shock mounting points. The upper links can be run in a couple different ways too, either flat or parallel to the lowers. It can be set-up with a 50/50 or 60/40 link configuration. The chassis is also capable of running different wheelbases anywhere from 11" up to 15" on shaft driven builds, with custom links. It's designed to use a Stampede tranny mounted low in the chassis to keep the center of gravity as low as possible. If Clods are your thing, the SW2 chassis can run up to an 18" wheelbase.
This chassis was the only chassis to make the top 5 finals in both classes of the 2006 Nationals.
Click here for SW2 Build-up thread (12 1/2" wheelbase with TLT axles) 1st place in the 2.2 Class at the 2006 Nationals.
Click here for SW2 Build-up thread (14" wheelbase with TXT axles)
Click here for SW2 Build-up thread (18" wheelbase with Clod axles) 3rd place in the Super Class at the 2006 Nationals.
Click here to see video of SW2 on the rocks, TLT and Clod.
SW2 will be offered in 2 different packages:
1. Chassis plates and Delrin tranny skid, $65 shipped in the U.S.

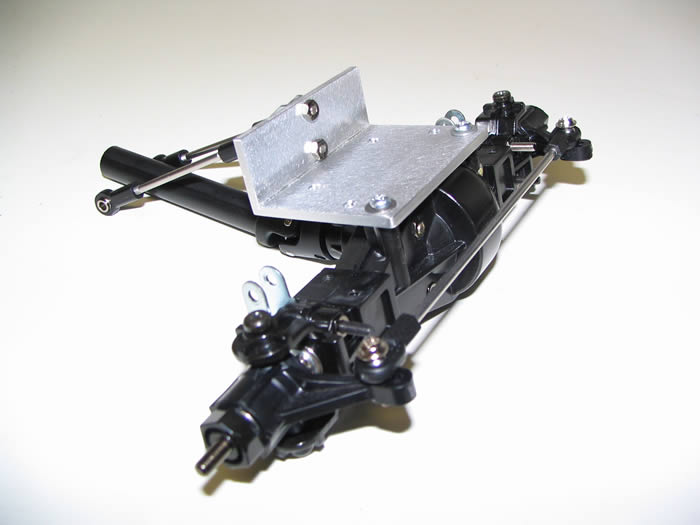

2. Chassis plates, Delrin tranny skid and servo/upperlinks mounts, $95 shipped in the U.S.

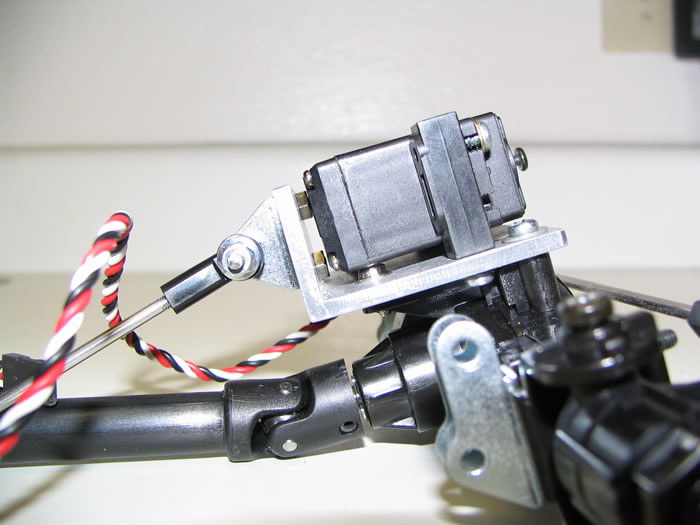

The servo mounts are designed around Hitec's 645mg servo.

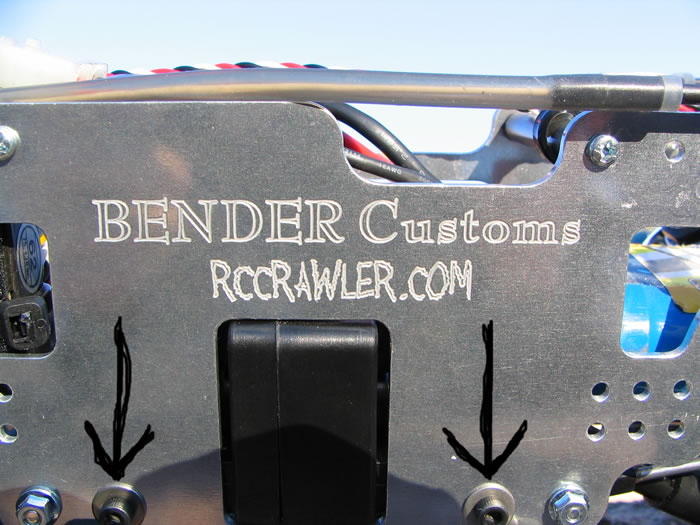

Price does include the four 3mm screws that tie the Delrin skid plate to the chassis, as well as 4 flatwashers and two 6-32 screws to mount the Pede tranny.
I will also sell the link mounts seperately, $33 a pair shipped in the U.S.
Check out the website, you can order them through there as well..............www.bendercustoms.com
These are also available in black anodize.
http://www.rccrawler.com/forum/showthread.php?t=38117
Thanks!!
On to the pics......
This chassis is designed to give the end user alot of options, with numerous upper shock mounting points. The upper links can be run in a couple different ways too, either flat or parallel to the lowers. It can be set-up with a 50/50 or 60/40 link configuration. The chassis is also capable of running different wheelbases anywhere from 11" up to 15" on shaft driven builds, with custom links. It's designed to use a Stampede tranny mounted low in the chassis to keep the center of gravity as low as possible. If Clods are your thing, the SW2 chassis can run up to an 18" wheelbase.
This chassis was the only chassis to make the top 5 finals in both classes of the 2006 Nationals.
Click here for SW2 Build-up thread (12 1/2" wheelbase with TLT axles) 1st place in the 2.2 Class at the 2006 Nationals.
Click here for SW2 Build-up thread (14" wheelbase with TXT axles)
Click here for SW2 Build-up thread (18" wheelbase with Clod axles) 3rd place in the Super Class at the 2006 Nationals.
Click here to see video of SW2 on the rocks, TLT and Clod.
SW2 will be offered in 2 different packages:
1. Chassis plates and Delrin tranny skid, $65 shipped in the U.S.
2. Chassis plates, Delrin tranny skid and servo/upperlinks mounts, $95 shipped in the U.S.
The servo mounts are designed around Hitec's 645mg servo.
Price does include the four 3mm screws that tie the Delrin skid plate to the chassis, as well as 4 flatwashers and two 6-32 screws to mount the Pede tranny.
I will also sell the link mounts seperately, $33 a pair shipped in the U.S.
Check out the website, you can order them through there as well..............www.bendercustoms.com
These are also available in black anodize.
http://www.rccrawler.com/forum/showthread.php?t=38117
Thanks!!
On to the pics......
