My boys ( 6 & 8 ) and I have started our first RC Scaler Project. Our goal is to create a "mini" version of our 1:1 Jeep Wrangler JK SWB Rock Crawler (this way the boys have a crawler to use while we're out driving the "real" thing out on the rocks/trails). We are pretty active in the local SoCal off-road scene, spending many weekends up in Big Bear and out in the Anza-Borrego Desert in the Jeep driving trails or riding motorcycles.

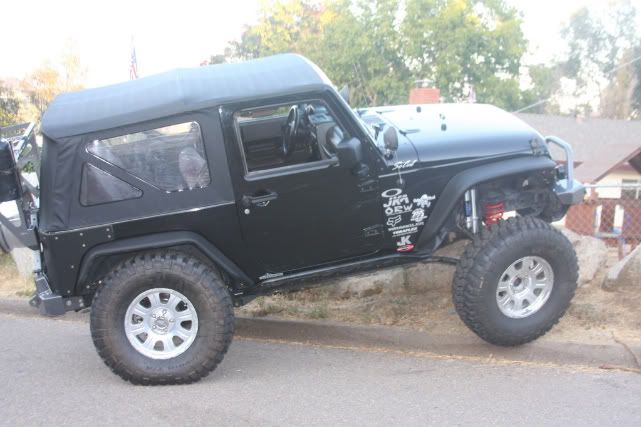

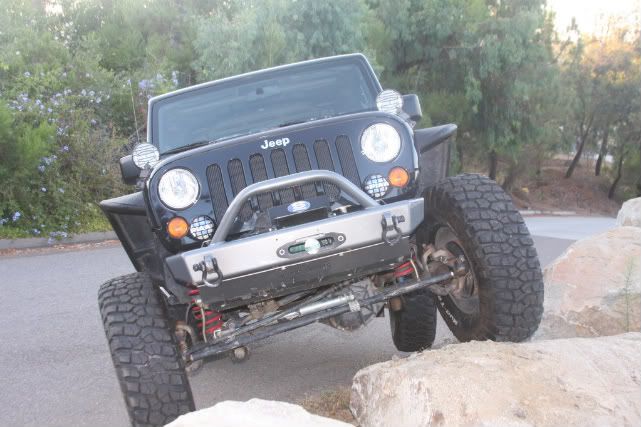

The 1:1 stats:
2007 Jeep Wrangler SWB "X"
Lift: 5" TeraFlex/Skyjacker "frankenlift"
Tires: 37" BFG KM2 Mud Terrians
Axles: Front & Rear Dana 44's
Axle Shafts: Front: RCV CV-joint / Rear: stock
Shocks: Fox 2.0 Reservoir Adjustable
Armor: Front Fenders: Poison Spyder / Rear Fenders & Crusher Corners: River Raider / Rock Rails: Poison Spyder
Bumpers: Front & Rear: Shrockworks
Winch: SuperWinch 9.0iEP
Gears: Superior 5.13's
Lockers: Front: Rubicon E-Locker / Rear: Eaton E-Locker
Off-road lights and Rock lights

So, that's what we are striving to build.

The 1:10 stats:
Chassis: Starting with a SCX10 4WD Kit w/ Honcho Body
Body: Pro-Line Jeep JK Rubicon Body (2 of them: one will be topless / the other with a top)
Winch: Bulldog 9300XT (wireless)
Rims: Python 1.9 Scale Beadlocks
Tires: Dick Cepek 1.9 Mud Country Scale Tires
Bumpers/Rock Rails/Roll Cage: custom

We haven't gotten too far yet, but I thought I would start a build-thread now and catalog the progress.

Starting point:

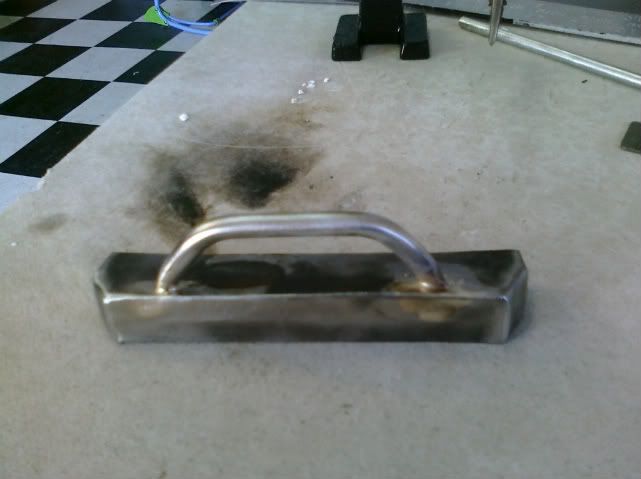

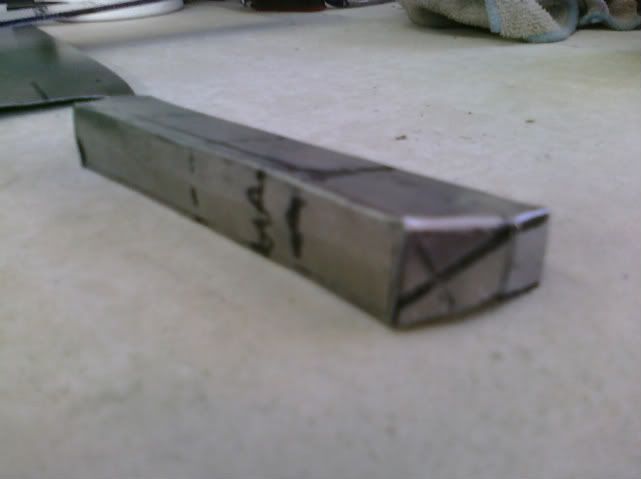

Front Bumper (first time brazing) Made out of 22 gauge sheet metal and 1/4" brake line.

We still need to cut out the top of the bumper for the winch, as well as a slot for the winch line in the front of the bumper.

Start building the RC vehicle:

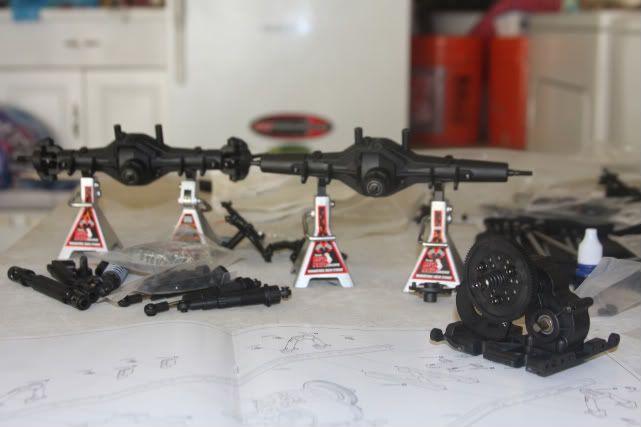

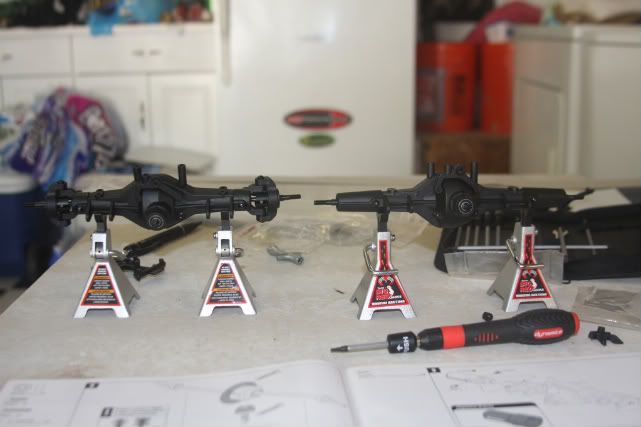

We want to use a 4-link set-up, so we got the 4-link truss for the rear, but still looking into a front 4-link solution. Also, since the 1:1 coils are red, we've painted the SCX10's coils red as well.

We're pretty excited about this build, but we do plan on taking our time.

NEXT Project: (hopefully) the rear bumper with tire carrier.

Ty ...
