MFD F2 Bodyless Chassis Rebuild

So, after running the new chassis for a few months I'm very impressed with it. the rig it very consistent and predictable. this design is well balanced and has great forward bite. this chassis is a forward bias 60/40 design with a low CG.
well now that my machine is running i'm able to cut CF and so comes the new light weight version. the chassis with skins and AL hardware weighs 75grams (2.67OZs) and is very ridged. this thing is bad @$$. by far my best work yet."thumbsup" I also added a set of MR V. drill press wheels and have the weight of the rig at 5.168lbs RTR.:mrgreen:
here's some poser pics.


Attachments

  • IMG_2212.JPG
    49.3 KB · Views: 567
  • IMG_2213.JPG
    49.4 KB · Views: 529
  • IMG_2214.JPG
    52.5 KB · Views: 562
  • IMG_2215.JPG
    49.3 KB · Views: 574
Last edited:
now im on to some CF beadlock rings. i ran the first two out of scrap 1/16th material and allready see some changes that need to be made but for the most part they came out the way i wanted them to. i have been using my tryangle offset and only three bolts for a couple years now.

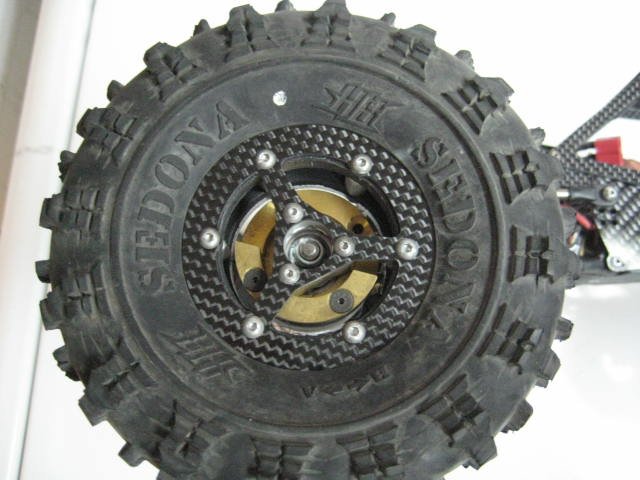

here is a pic of the proto type.


Attachments

  • IMG_2217.JPG
    56.8 KB · Views: 543
now im on to some CF beadlock rings. i ran the first two out of scrap 1/16th material and allready see some changes that need to be made but for the most part they came out the way i wanted them to. i have been using my tryangle offset and only three bolts for a couple years now.

here is a pic of the proto type.

That looks sexy in all CF glory. Are the CF skins made from rigid CF sheet?

Also, suggestion o nthe wheels. Since the material is so thin, maybe you should rotate the spoes 30* in relation to the lock ring & hub hardware. My thinking is that oriented that way, the spokes would meet up to the hub and outer ring area where there is the most material, thus making the wheel more durable. The way you have it now, the holes for the hardware is right at the ends of the spokes.

Last edited:
That looks sexy in all CF glory. Are the CF skins made from rigid CF sheet?

no, it is a CF skin material from dragon plate.

[/QUOTE]Also, suggestion o nthe wheels. Since the material is so thin, maybe you should rotate the spoes 30* in relation to the lock ring & hub hardware. My thinking is that oriented that way, the spokes would meet up to the hub and outer ring area where there is the most material, thus making the wheel more durable. The way you have it now, the holes for the hardware is right at the ends of the spokes.[/QUOTE]

i see your point scorpion king, i will give it a try. when i originally drew the cad for them, it was for an all AL wheel and i was only going to use three bead lock holes. i would have aliminated the holes at the end of the spokes. thanks for the advice."thumbsup"

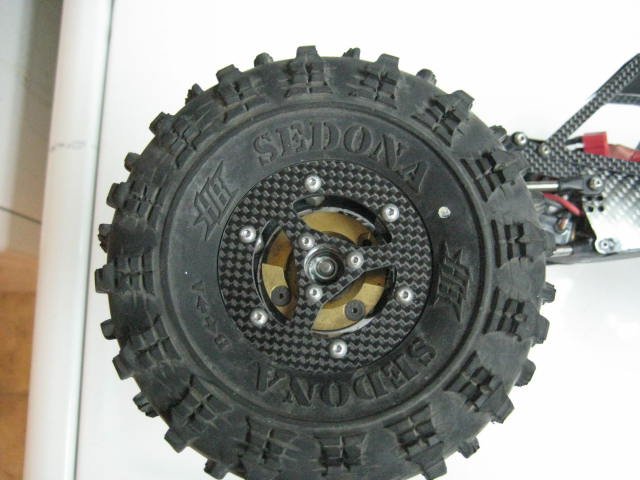

here you go scorpion king."thumbsup"
i like it , thanksyou sir.


i think i will call these MFD "THR33" CF beadlocks


Attachments

  • IMG_2219.JPG
    52.3 KB · Views: 503
  • IMG_2220.JPG
    57.6 KB · Views: 511
  • IMG_2221.JPG
    56.4 KB · Views: 504
Last edited:
Are the wheels glue on or beadlocks? They look great. "thumbsup"

they are mr. V drill press wheels with MFD "THR33" beadlocks. thanks McTwist, i have been wanting these for over two years, since i made my first set of wheels in "09".

Last edited:
Thought I would show off the new style chassis a bit. I watched Mike make this chassis and can't wait to run it this weekend!! Super strong and light. Now I just need to get him to make my custom beadlocks:twisted:


PICS!!!











Still working on a side panel desgin. This one is not the best but will work for the weekend!

Thank you Mike I can't wait to run this weekend!!

here you go scorpion king."thumbsup"
i like it , thanksyou sir.


i think i will call these MFD "THR33" CF beadlocks

Let me know if and when you wanna sell these, They look badass. I really like those wheel I picked up from Mr V on Saturday. These CF rings would tie it all together very nice.

It was nice to meet you and Mr V in Wendover.....

Keep me inmind for your next set "thumbsup"

Thought I would show off the new style chassis a bit. I watched Mike make this chassis and can't wait to run it this weekend!! Super strong and light. Now I just need to get him to make my custom beadlocks:twisted:


PICS!!!











Still working on a side panel desgin. This one is not the best but will work for the weekend!

Thank you Mike I can't wait to run this weekend!!

looking good james. i like your side skins.
i broke a THR33 CF beadlock taking a fall, doing a shake down before the comp started. back to the drawing board. don't worry james im going to work on the wheel when i get the time."thumbsup"

Let me know if and when you wanna sell these, They look badass. I really like those wheel I picked up from Mr V on Saturday. These CF rings would tie it all together very nice.

It was nice to meet you and Mr V in Wendover.....

Keep me inmind for your next set "thumbsup"


what a good time i had this weekend. it was nice meeting you and your buddy also."thumbsup"

i almost forgot, spencer took 3rd at the BOTW in 2.2pro this weekend with the F2 in CF. good job spence."thumbsup"
