TLT Crawler Picture Archive

[D.I.L.L.I.G.A.F.]

Midnight 4 Wheelers

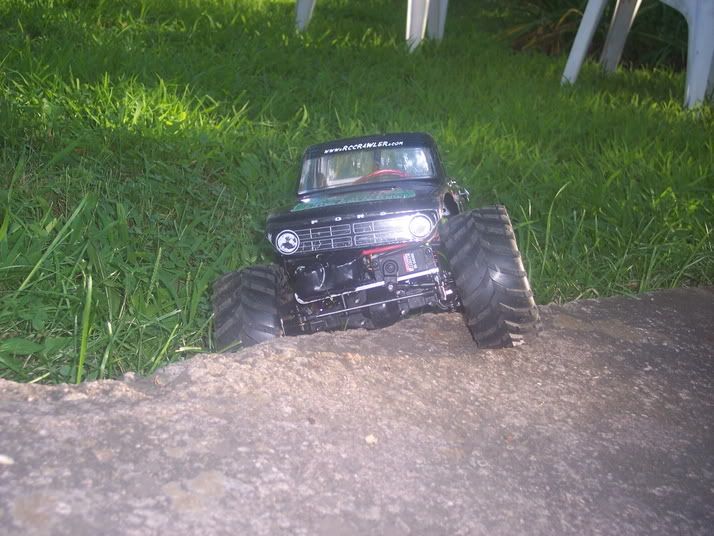

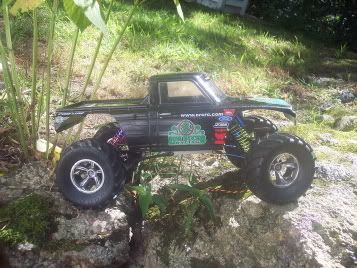

72 CHEVY WITH SWAMP DAWGS AKA BOGGERS...
CLICK ON IMAGE 2 ENLARGE...



[ezrider]

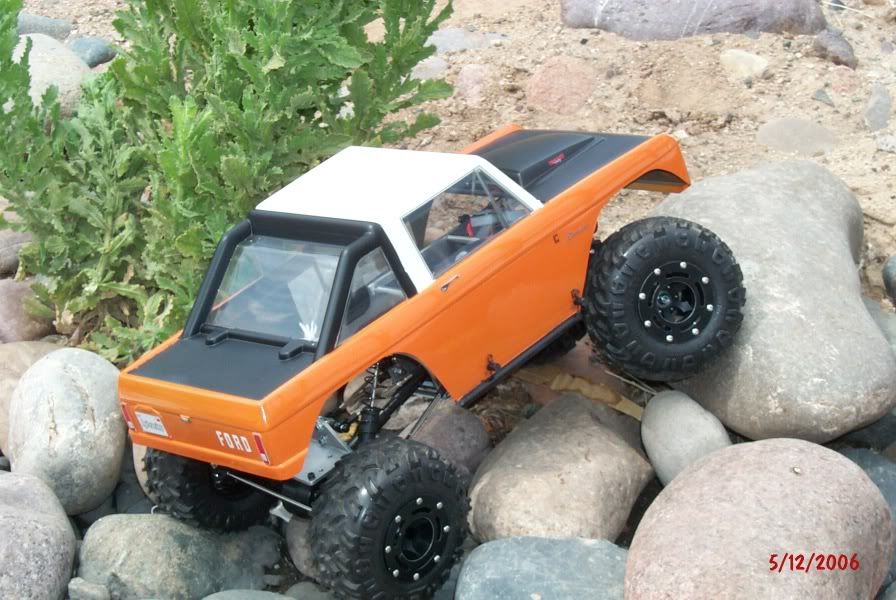

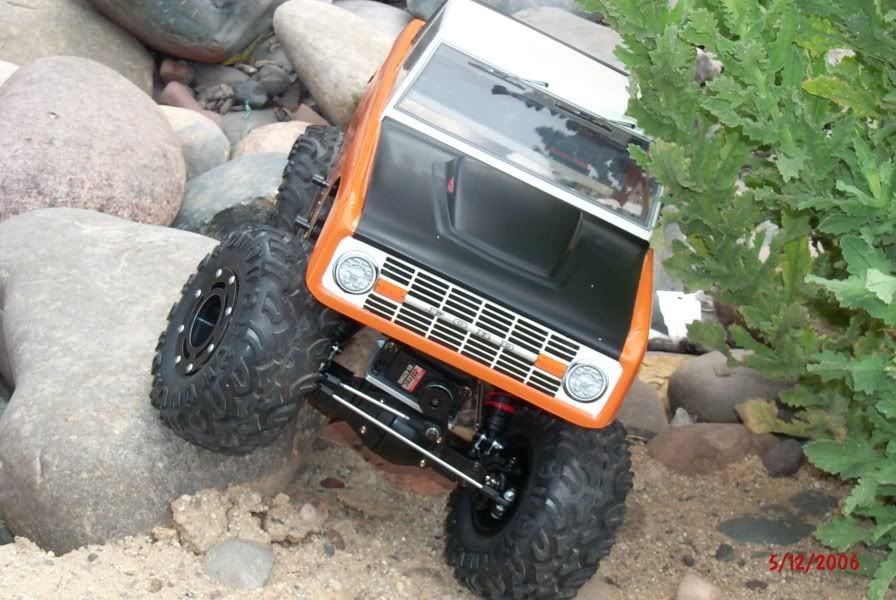

TLT Bronco



[Cloak]

Here's one of my 2 tlts:
SW2 chassis
HH Brushless motor and mamba 25 esc
pede tranny
tlt axles
Red Rocks on homemade rockrings/beadlocks (as rockrings now)



[jeepdude]

my first tlt crawler

Here's a list of parts.......

•BENDER Custom's SW2 Chassis with link mounts
•Futaba AM 2-channel radio and reciever (water-proofed)
• Associated LRP Quantum ESC w/ Reverse
•HS-645MG Servo
•Maxx shocks with losi springs
•Traxxas links for bottum suspension links•Moabs on single narrowed traxxas wheels
•Stampede transmission, fully locked
•TLT axles, also fully locked
•45T Lathe motor
•HPI Jeep body painted and trimmed



[Got Rocks?]

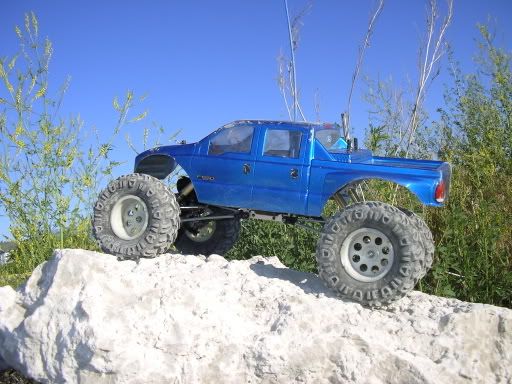

tlt-1
55t integy lathe 15t pinion
hitec 645 servo
2.2 moabs on narrowed and drilled out traxxas stampede fronts
ford f650 body
custom modified stock tlt chassis with laid down tranny
traxxas stamped tranny with 87 spur

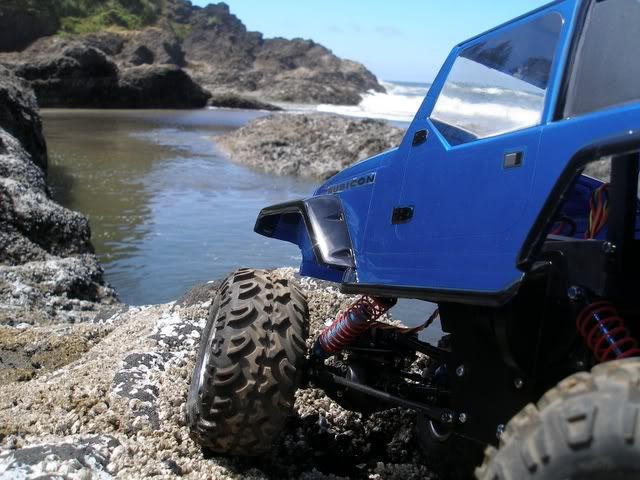

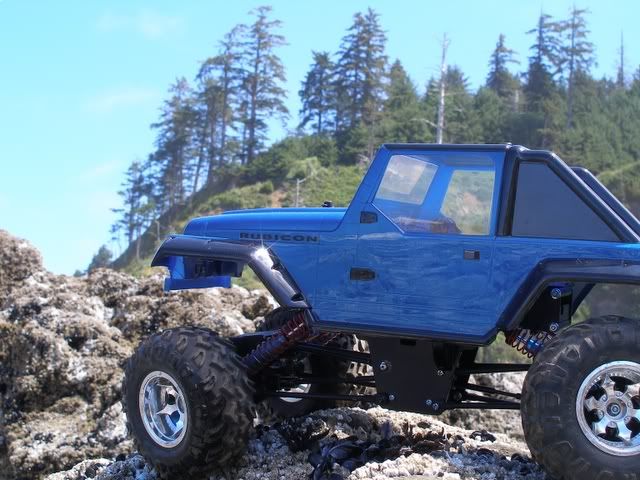

[-Q-]

TLT-1
Integy 65t
GD-600
Team Associated Stealth Transmission
Modified Stock Chassis
Custom Links
Custom Servo/Link Mounts
Associated Shocks/Springs
2.2 Moabs On Narrowed Rustler Fronts
TQ3 Rear-Steer Mod
Hitec SP520 Plus ESC, (sucks)
LED's
HPI Rubicaon Body
7.4v 4600mah Li-Ion's (cells stolen from old laptop packs)



[reefshark]

my new built tracer chassis
will get some proper shots soon and im getting a new shell when i get the cash



[reefshark]

got some pics today no rocks though as i dont hjave any near by but i got a video



[snook]

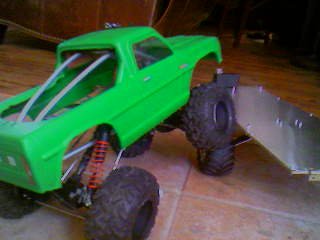

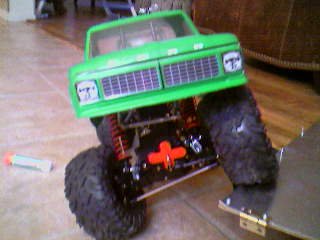

My green pickup

Here is my truck.

moabs
tlt axles
highly modified pti goliath chassis
maxx shocks
55t lathe
Its own custom trailer pulled by nylint


CHECK OUT THE BUMPER STICKER!!!!!!!!!!! GIT-R-DONE!!!



[D.I.L.L.I.G.A.F.]



[nbpmotorsports]

For larger pics, click on the pic.
Broke the front steering and hubs that day.
just replaced them and new wheels and Geolanders.



[mikestoys]

had some time on my hands this weekend and decided to work on the 73 bronco body that was sitting in my closet... rust orange in color with roof rack, front and rear bumpers, lic plate to match my 1:1 truck, rear facing spotlights...



[AdmiralDog]



[somedude]

Teu-101bk esc
55t lathe
1/4" brass tubing
masher 2k's on wide offset wheels
karbonite gear servos

Note that the switch doesn't dangle like that, that's before it was officially mounted;-)



[D.I.L.L.I.G.A.F.]



[neo]

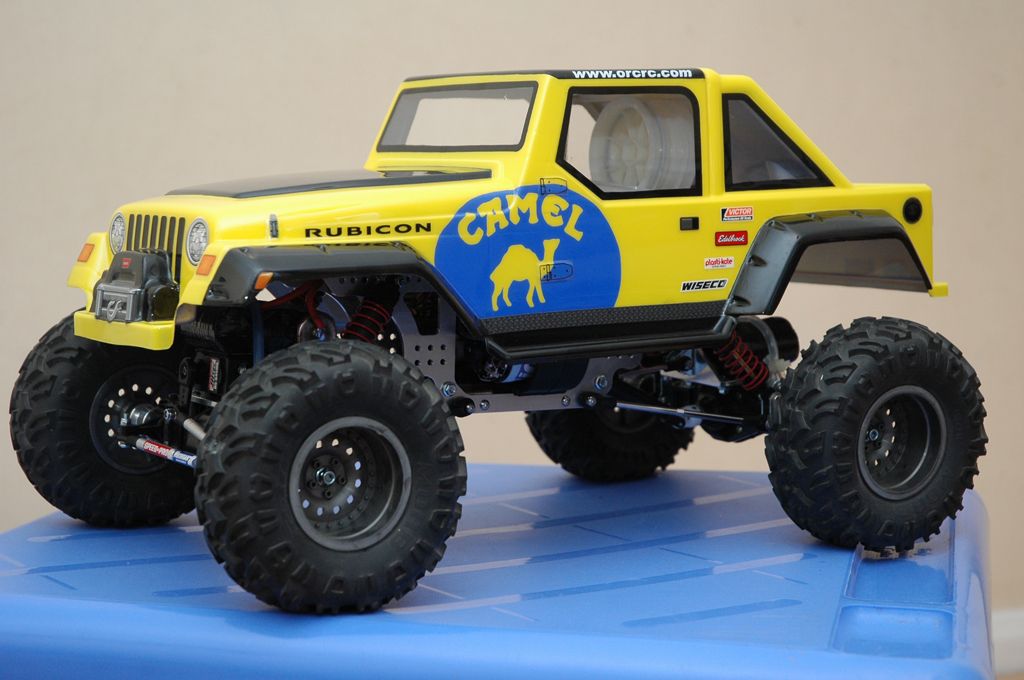

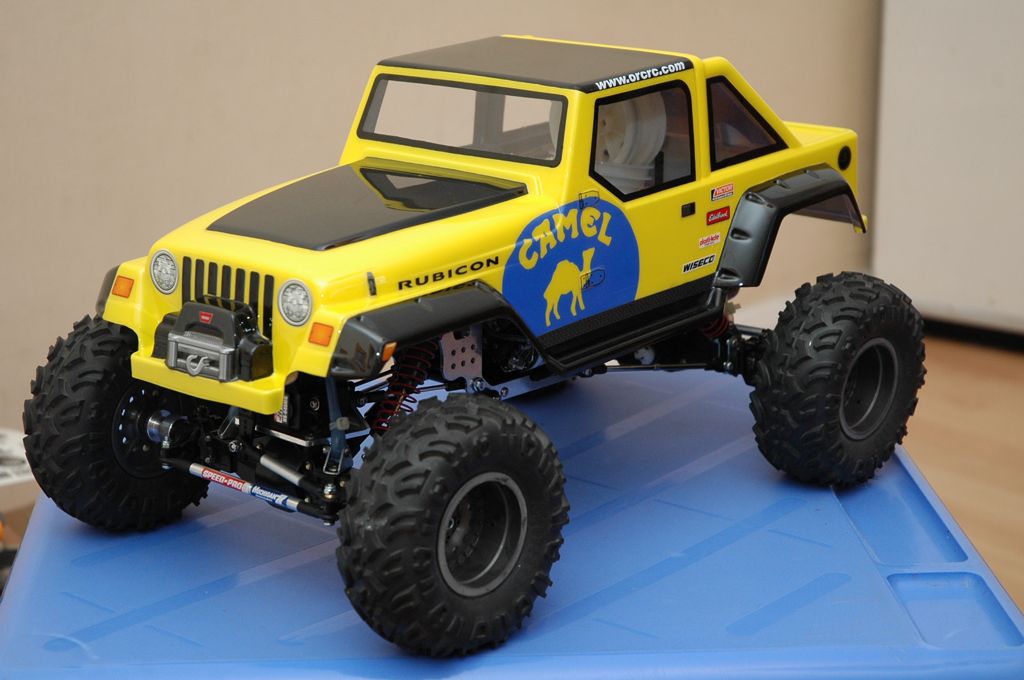

New shell

Well, after a crappy week at work I was greeted with a cool shell delivered by Mr Postman when I got home from work today. Its been painted by a rather talented female sprayer over here in the UK. The Camel logo has been painted and looks awesome. Oh, can anyone recommend some long body posts for the SW2 as my TLT ones are too short?
So a BIG THANKS TO Claire at CB Airbrushinghttp://www.cbairbrushing.com/main.html



[CoreyK]

Heres mine
WB-12.5"
TW- 10 3/4"
Chassis clearance- 3"



[gstealer]

Here's my 1st TLT build "Overbudget".

Modified Stock Frame, Pede Tranny, 55T Lathe, Traxxas Turnbuckle links, Blkfoot axles, 6 Cells (3 front 3 rear) Tazer Speed controller (to be upgraded soon)

More pics http://pg.photos.yahoo.com/ph/gstealer1/album?.dir=/e766re2&.src=ph

Thanks to the great wealth of knowledge here and Trickster for his help while I was building this.



[mikestoys]

wahooooooo

got my bling chrome axle housings in...



[moab0lllllll0jeeper]

Here is my trail toy.

SW2 at 12.5"
65T motor
Pede tranny 84\12
Team Blue shocks
Beadlocks/RRocks
Tekin R2
JR radio
985MG servo
