***CDW 1.0 Chassis Build***

[yotachump]

Finally got around to Designing a chassis:lol::lol:.I also Will be using CDW Proto Straight upper link plates


I stole the axles and Tranny off of my old AX10

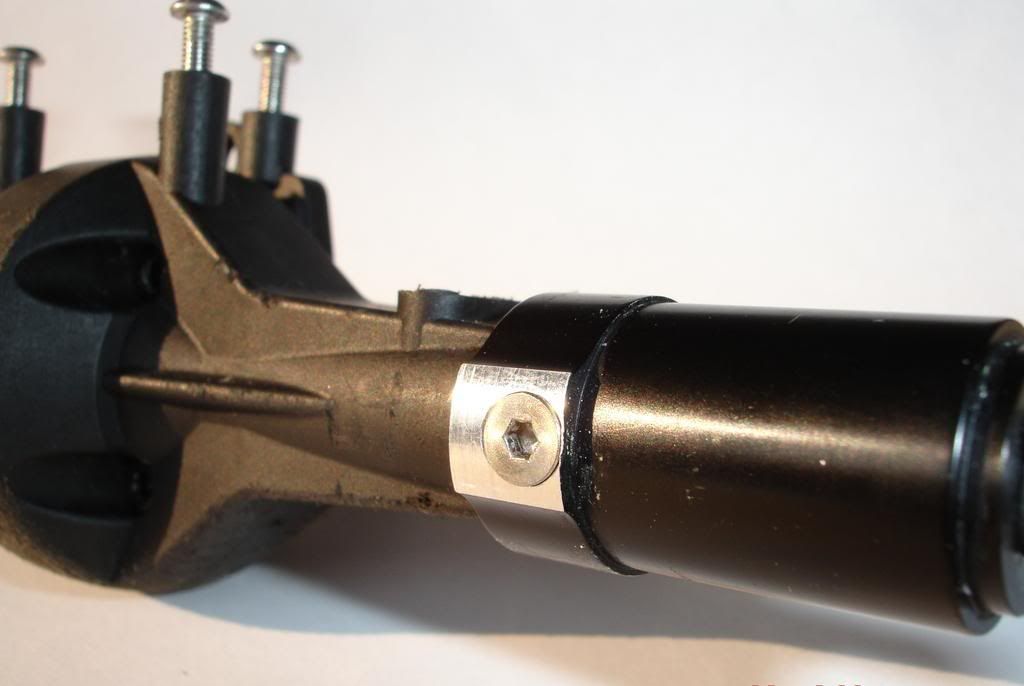

A Puller Should fit nice and sung:lol: (might Need a little bit of filing)




Link Plates







If you would like a Chance to be a tester for the Chassis, Post up HERE



[yotachump]

First things first is to get the Axles built a little more then they are. So I picked up so Axial CVD, HD gears and some Bonus Line lockers. So along with the RCP straight Axles, shafts and Rc4wd knuckles and C's I already Have, I should be good.



[Georgerm]

looks like a good start.



[Robbob]

1ST - got to make me one of those servo mounts

2nd - I already want your demo rear plate

3rd - Im subscribing now, you got me looking on this chassis.

"thumbsup"



[GH Racing]

great start
can't wait to see it when its done
remember to upload pics when its done;-)



[yotachump]

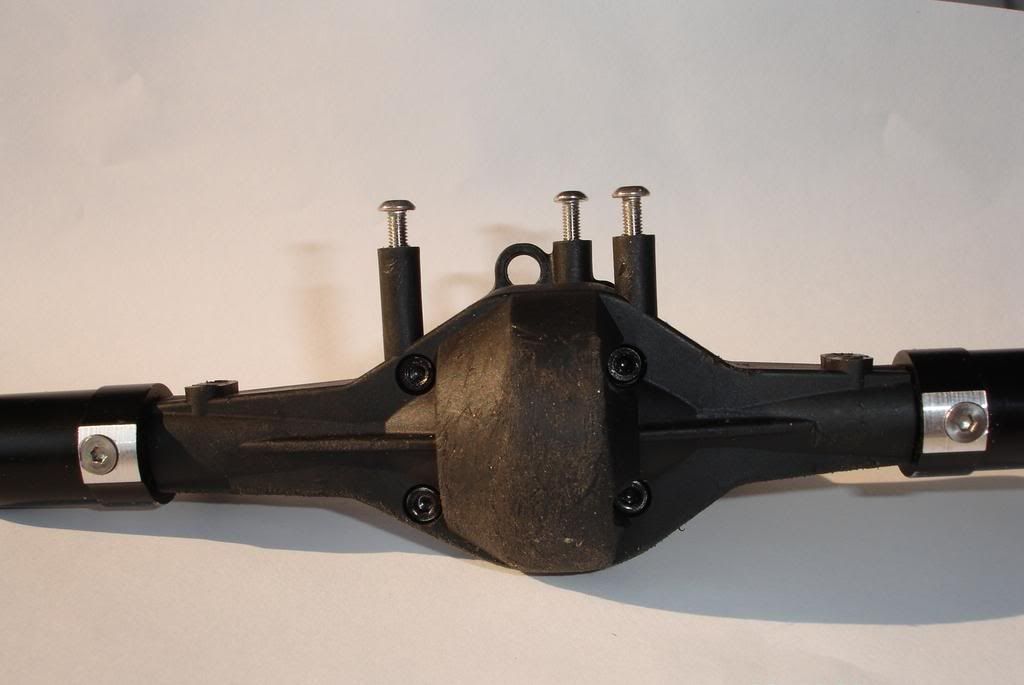

Just got done installing the gears And the lockers in the rear axle.NO SLOP:lol::lolI meant to take the Pic before I put grease on the gears.)

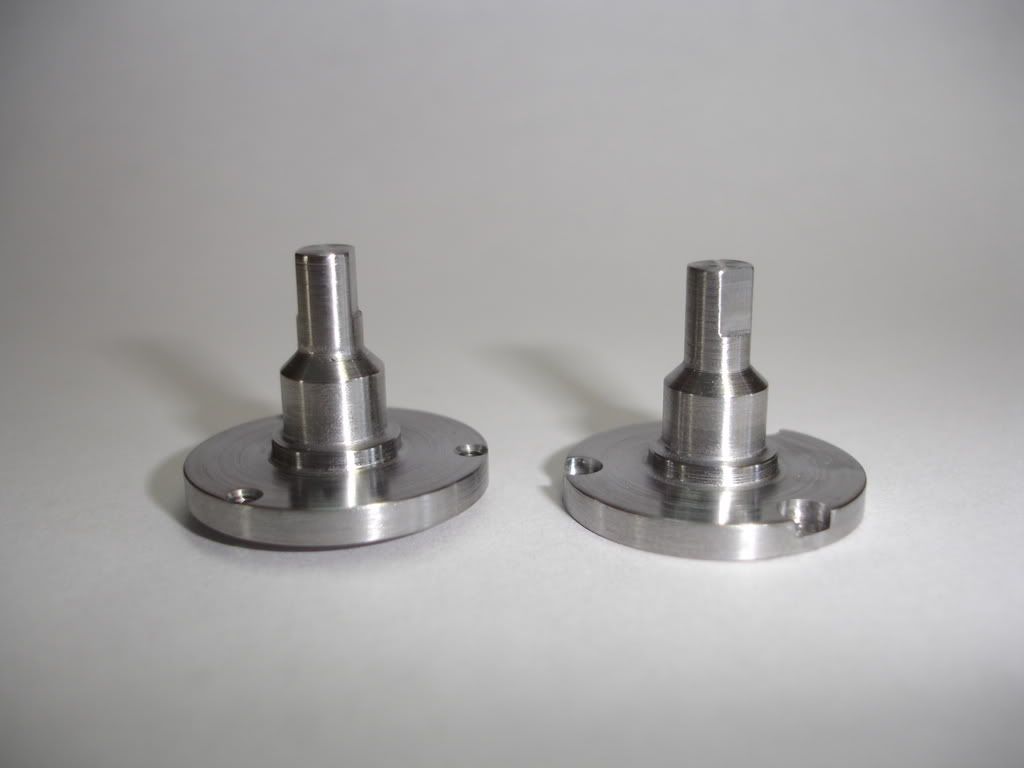

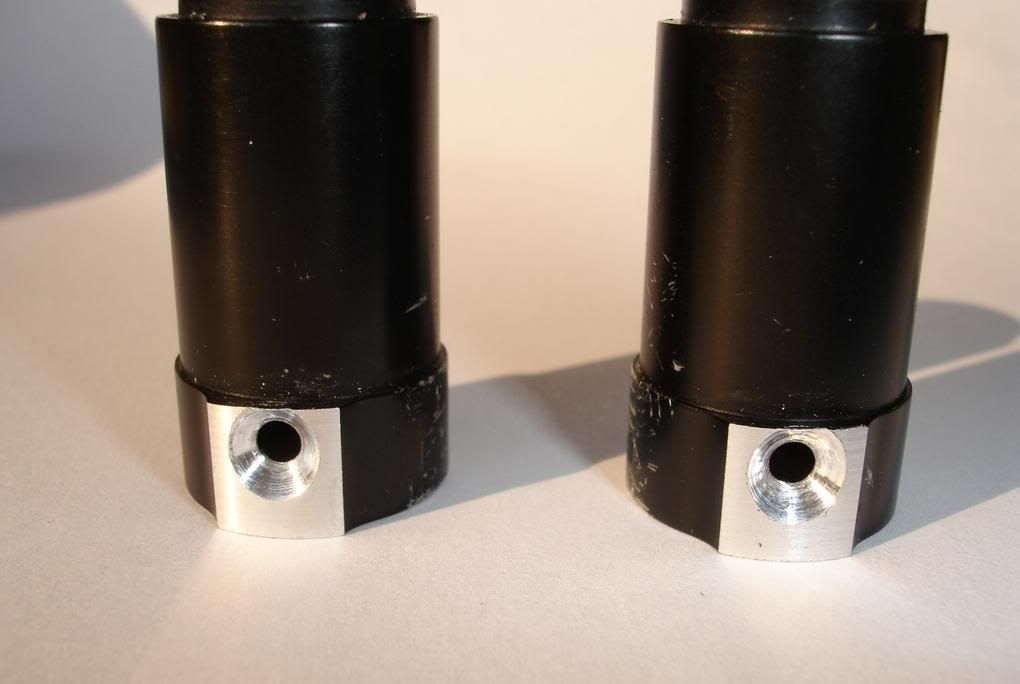

I also decided to try to clean the looks up on the RCP adapters, so I chucked them in the lathe and turn the end down and counter sunk the holes. Looks better I think.

I shimmed the everything with some KYOSHO SHIMS. The nice thing about the bag of kyosho shims is it come with 30 shims (10) .1 shims,(10).2 shims, and (10).3 shims.



[FL Knifemaker]

Just got done installing the gears And the lockers in the rear axle.NO SLOP:lol::lolI meant to take the Pic before I put grease on the gears.)

I also decided to try to clean the looks up on the RCP adapters, so I chucked them in the lathe and turn the end down and counter sunk the holes. Looks better I think.



I shimmed the everything with some Kyosho shims. The nice thing about the bag of kyosho shims is it come with 30 shims (10) .1 shims,(10).2 shims, and (10).3 shims.

Shims are a good thing! I used Telon bushings for shims in mine.



[JeepinDoug]

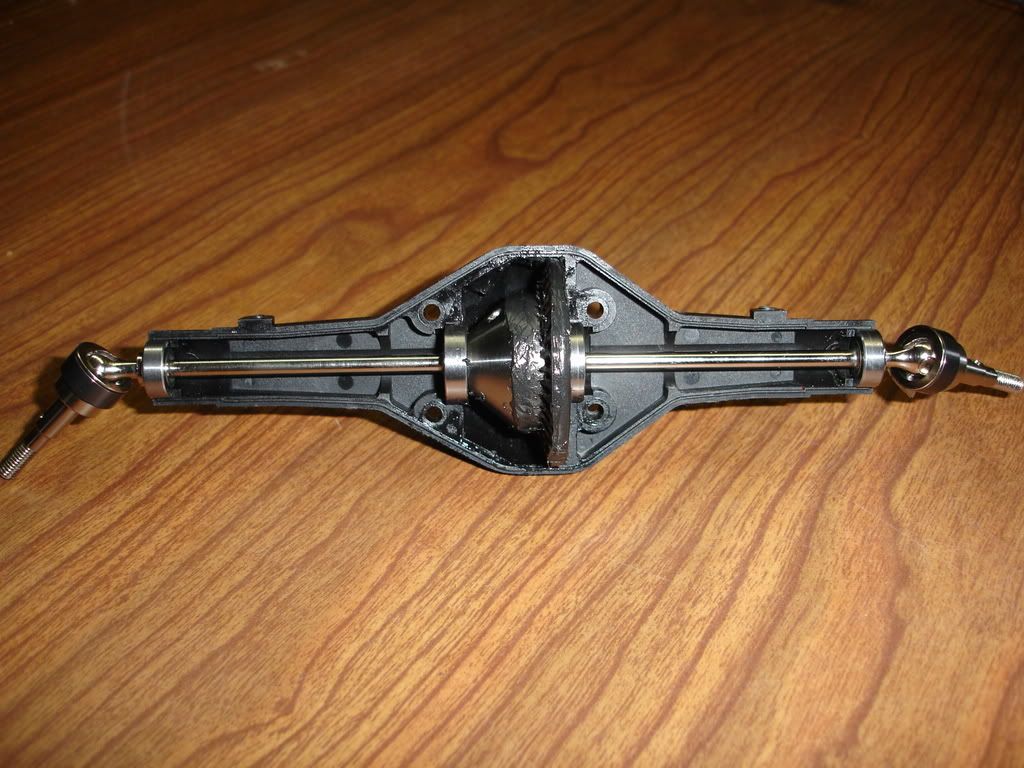

What's up with the undercuts in the axle shafts?
Engineered to be the weak point?



[yotachump]

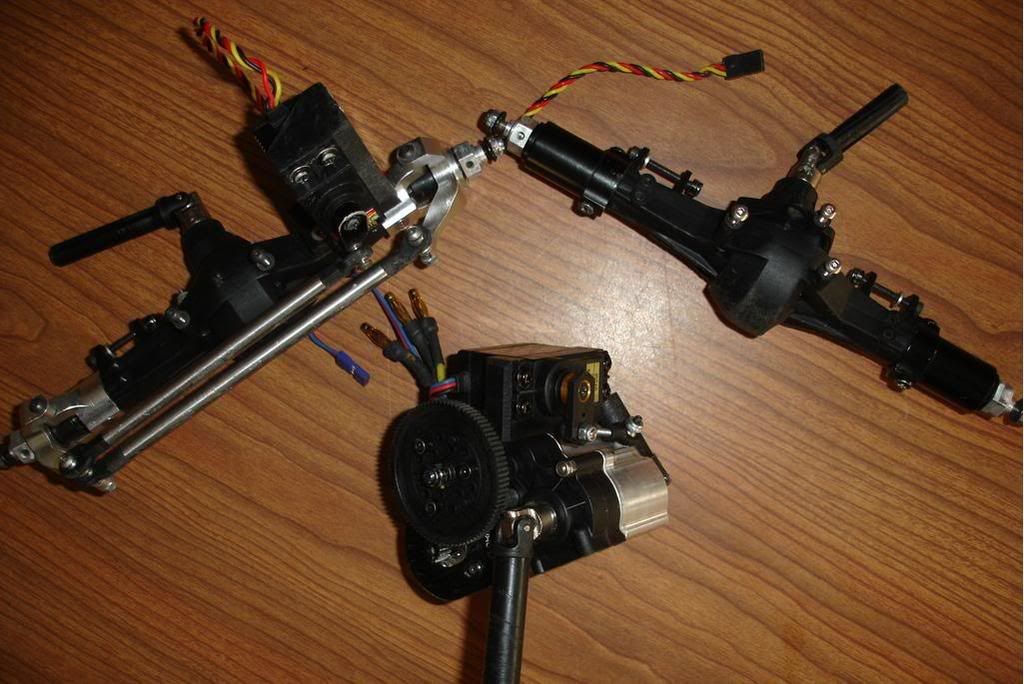

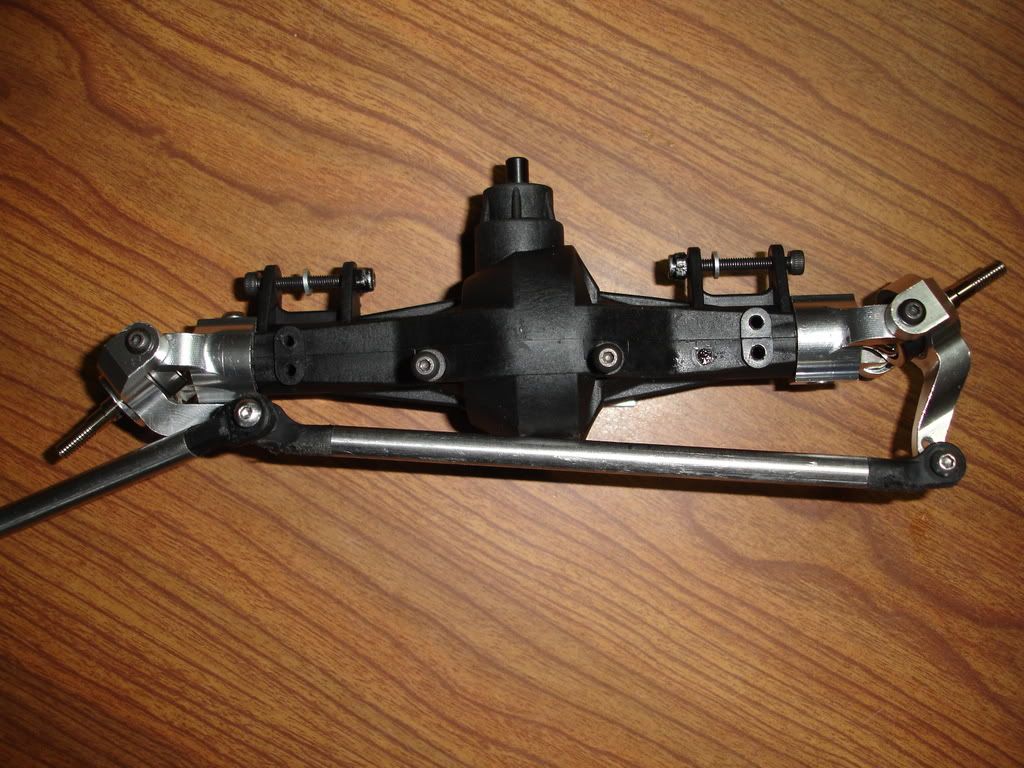

Finished the front axle. GOT STEERING?:lol::lol:

Yes, I did use a different kind of grease then the rear axle.



[Locked Up]

What's up with the undercuts in the axle shafts?
Engineered to be the weak point?

Looks like they are worn from contact with a screw that was coming down into the housing.



[yotachump]

What's up with the undercuts in the axle shafts?
Engineered to be the weak point?

I used to long of screws when I had my dig setup on there.
http://www.rccrawler.com/forum/showpost.php?p=1037868&postcount=14



[mtnyote]

Finished the front axle. GOT STEERING?:lol::lol:

:twistedUDE!! youre gonna love those things. they might be the best upgrade ive done. (other than going to 11.1v)



[JeepinDoug]

I used to long of screws when I had my dig setup on there.
http://www.rccrawler.com/forum/showpost.php?p=1037868&postcount=14

That makes sense now, I did the same thing to my R2D output shaft gear, Too long a screw chewed my teeth. :roll:



[eric113]

I'm really liking that chassis. What shocks did you design it for ?



[yotachump]

I'm really liking that chassis. What shocks did you design it for ?

Revo's or Losi .9" shocks.

I highly recommend the losi .9" shocks.



[yotachump]

Now that the Axles are done it time to move onto the tranny. The Tranny already has Aluminum gears in it, so Im just going to finish it off.

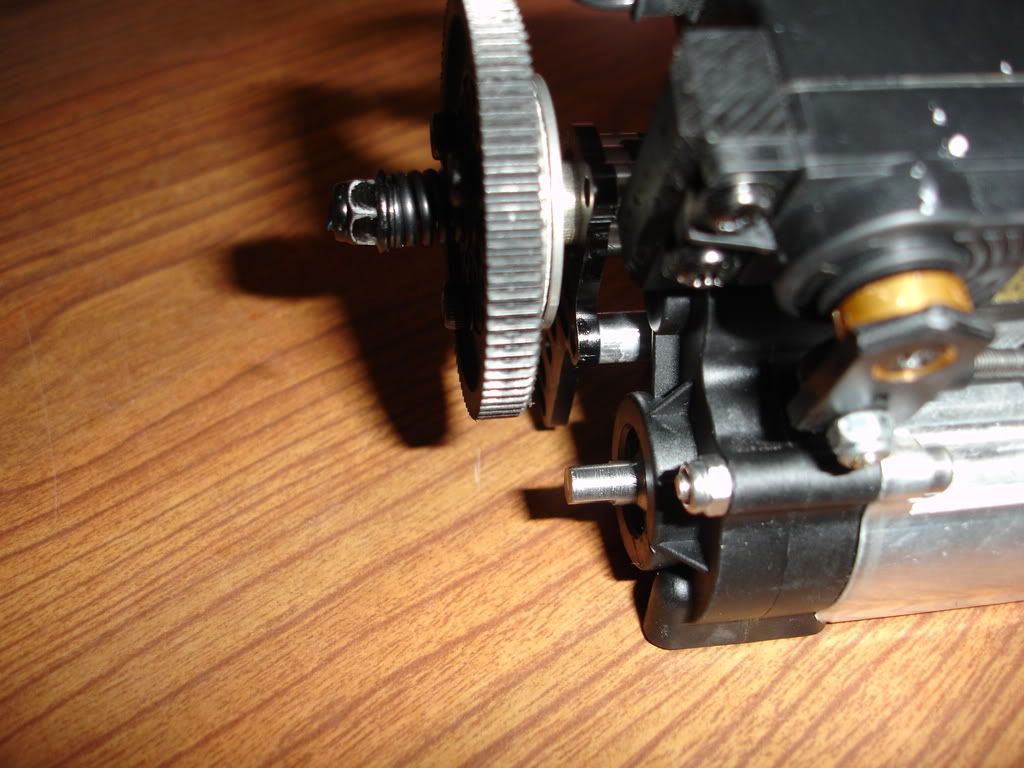

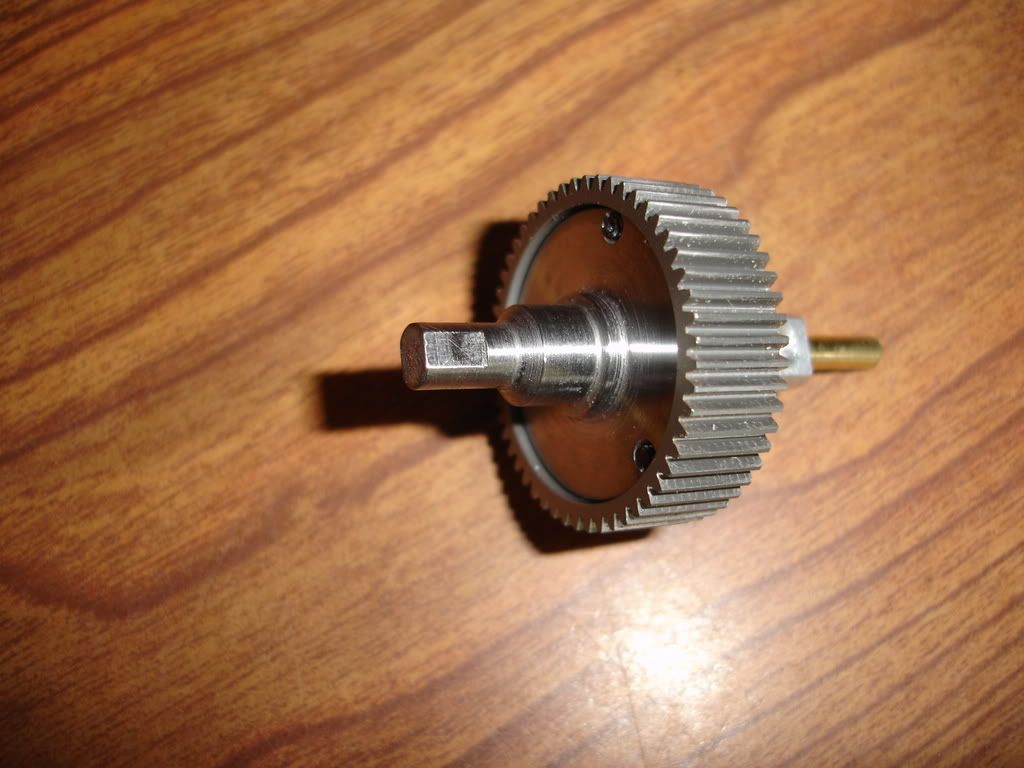

So I ordered up a Axial slipper and decided to install one CDW 5mm 4130 output for the front.



[yotachump]

I take it your not going to run the vf dig ? But the outputs look beefy.

Im only installing the front output.

ill run the VF for a while, until........;-):lol:



[yotachump]

Went down to the laser shop today and picked up some goodies:lol::lol::lol::lol:.
Now I just need to go pickup the skids later this week.

And the Proto Link Plates



[Speedracer19]

As usual very very nice.



[chip cross]

Chassis is very clean I like it."thumbsup"
