Post pics of oddball suspension and steering setups

[1tonscout]

As the title says, Post pics of oddball suspension and steering setups.

I've seen a couple rigs with really neat setups like one link suspensions, bellcrank steering, quarter eliptical leaf springs, watts link, cable steering, hydraulic steering etc...

Here's a neat Watts link i found on another site

This is a single leaf one link from pirate4x4



One link with panhard

http://up.picr.de/7802942mlo.jpg

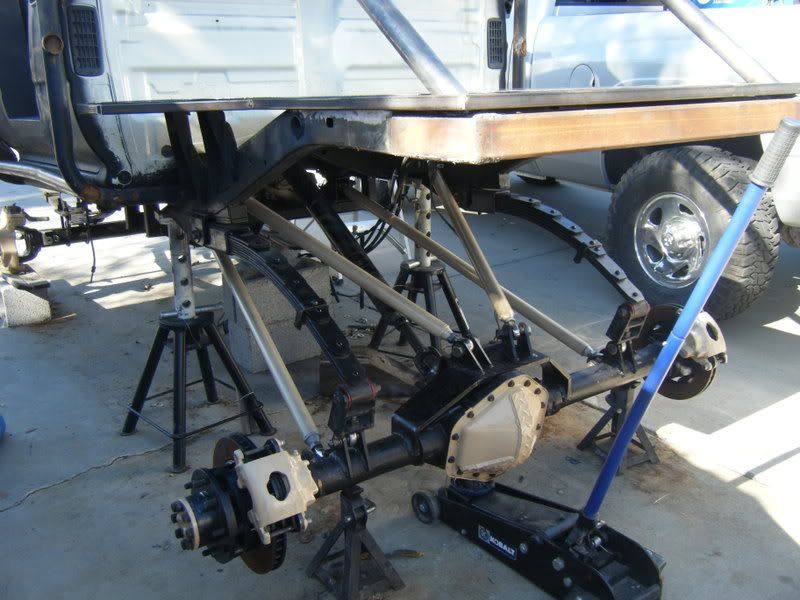

quarter elliptic triangulated 4 link

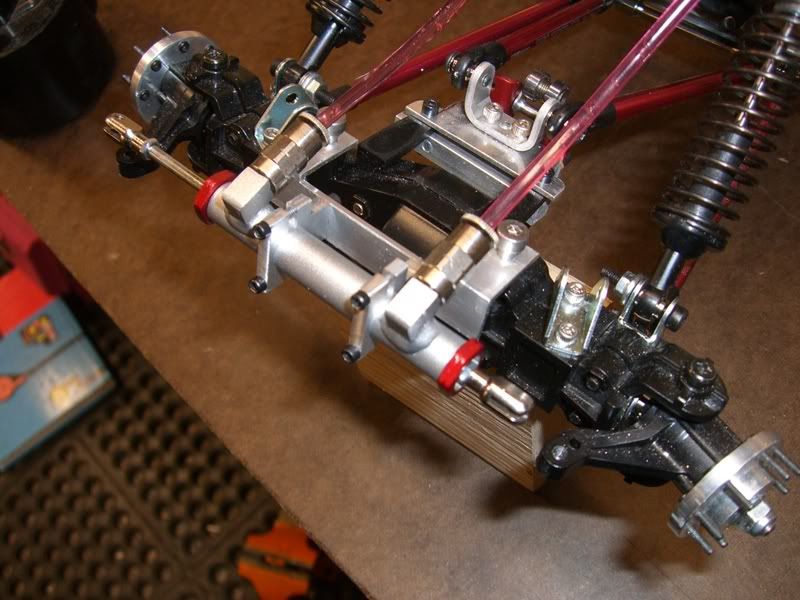

Here's a pretty sweet hydraulic steering setup

bell crank steering

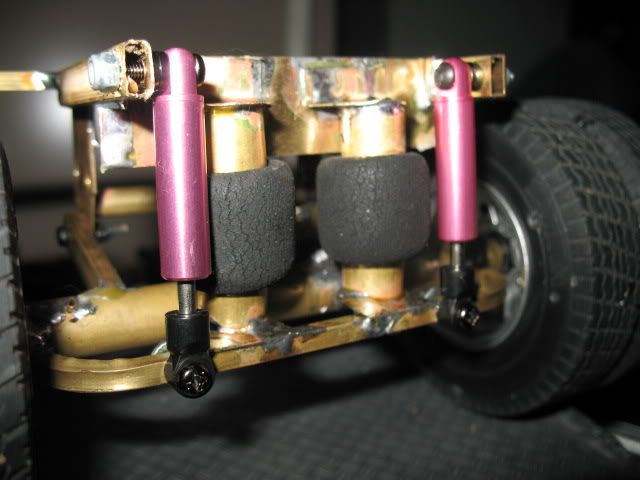

Microgoats airbag suspension



Hotrodjosh 3/4 elliptical leaf springs



I hope this thread inspires some creative builds. it's been a while since we've seen some creativity. Thanks for the likes!



[rngrchad]

I hope this thread inspires some creative builds. it's been a while since we've seen some creativity. Thanks for the likes!

I keep reading guys like you posting comments like this^. Although I liked your images and post I wonder Maybe you aren't looking hard enough! Just today I noticed several inspiring threads full of creativity! You just have to stop looking at everything with a depressed half-glass empty POV. Seriously. 5 Minutes of reading and I see: Full on custom titanium laser welded trailing arms, a couple guys making awesome 3-D printed axle housings, a 1937 dodge business coupe turned into a full custom tube cage along with headers motor and all for mud racing, mulitple custom fabbed truggy beds. Seriously. I see it daily on rcc. Lots of guys with some inspiring and intuitive stuff. :roll:



[Highmark]

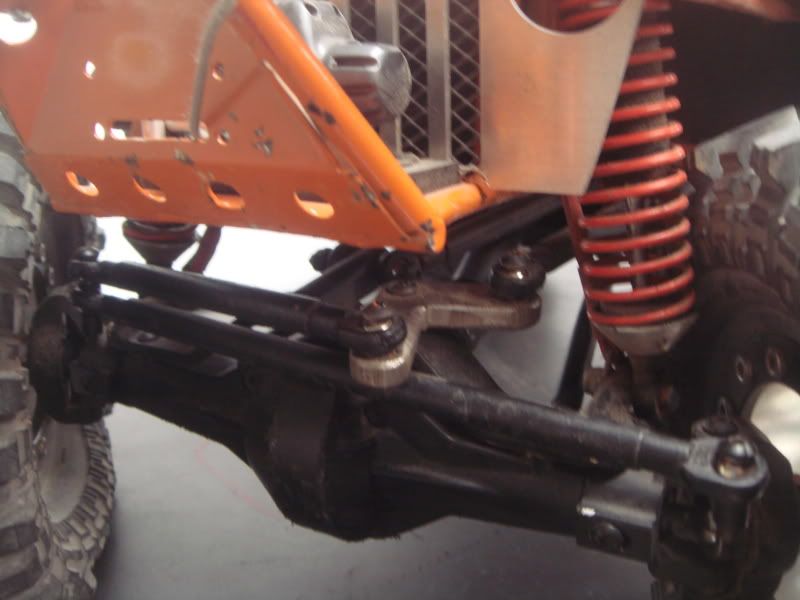

I've always liked the suspension on this rig:
