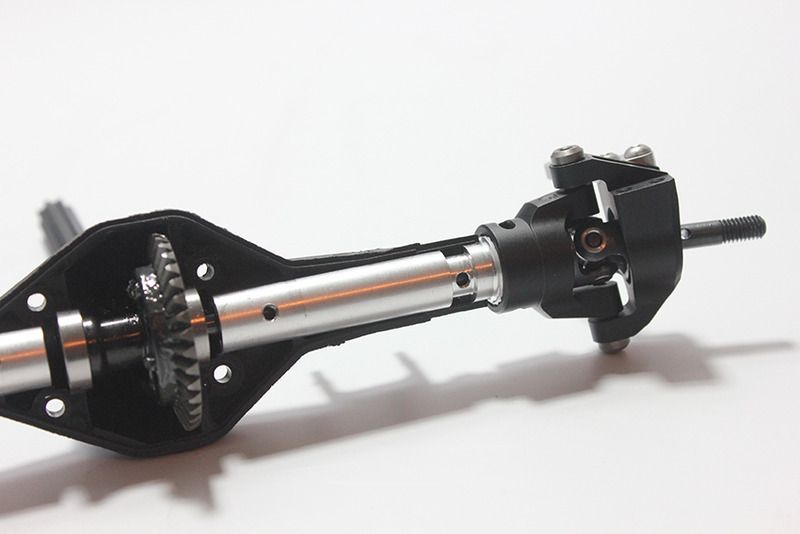

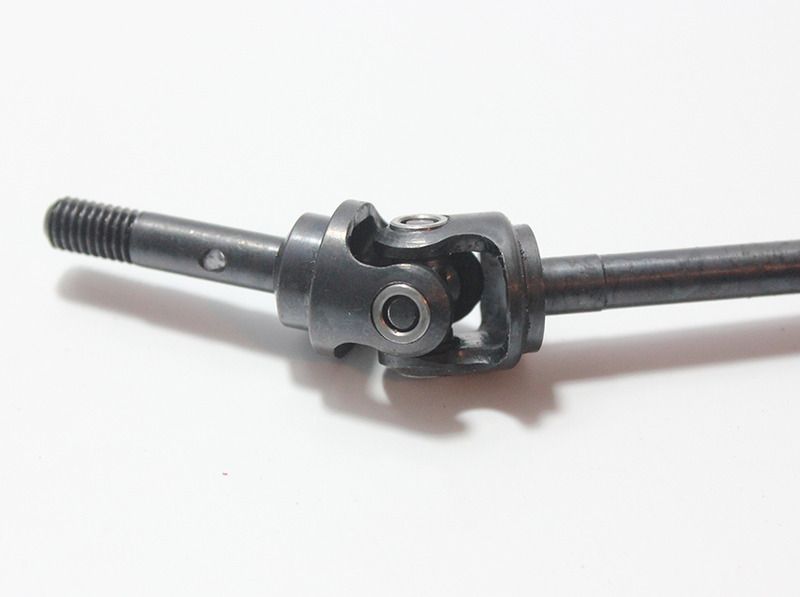

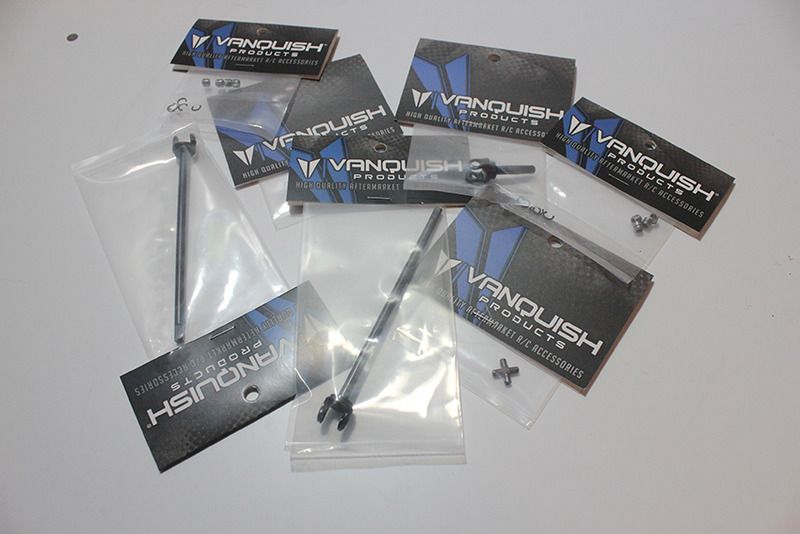

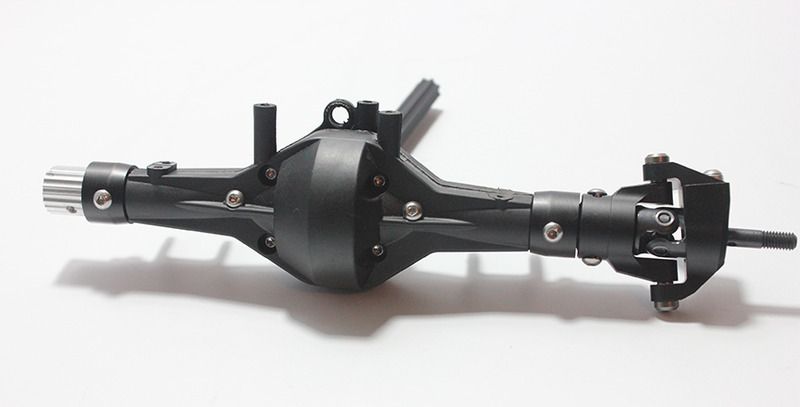

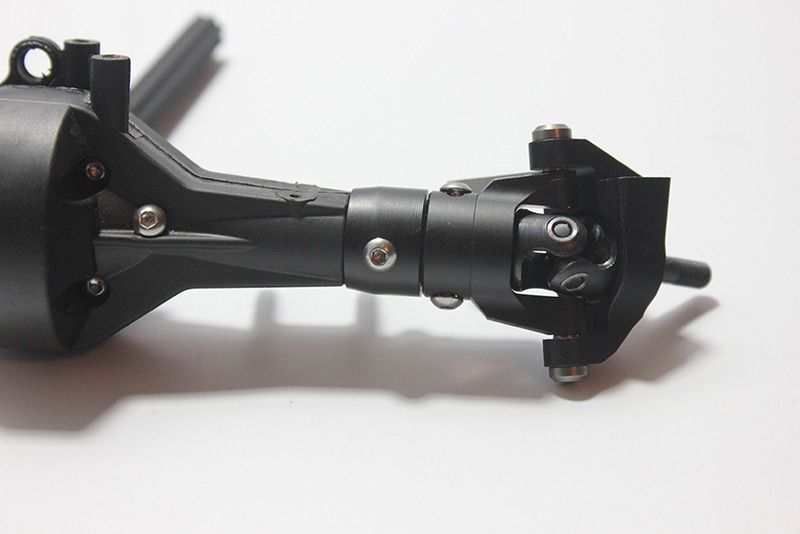

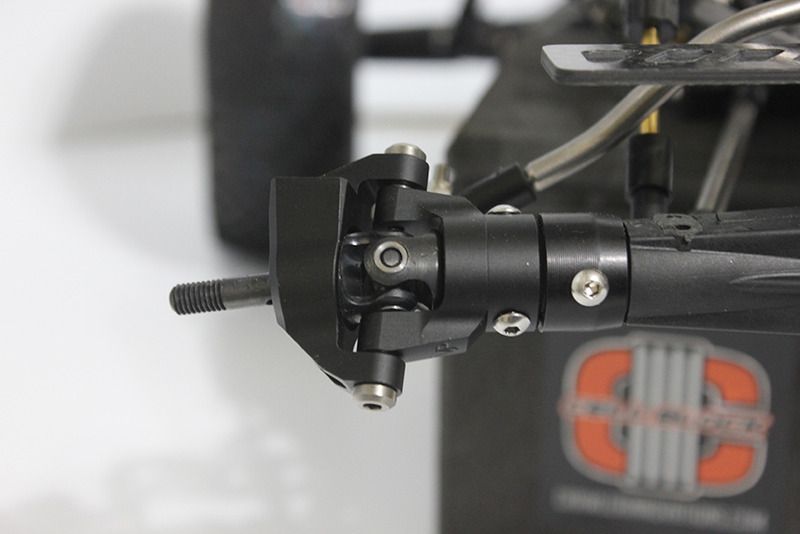

I wanted to use Vanquish's VXD axles on this build. VP is kind enough to sell the pieces to order just the longs, and frankly with a dremel and some patience the mod is very easy.
I didn't use any measuring devices here other then my eyeball. I installed the assembled long shaft into the VP Chubs and Knuckle.
I then pulled the back axle half off leaving the burly tubes installed. Then I lined the chub up with the inner portion of the burly tube splines and marked where I thought the shaft would need cut.

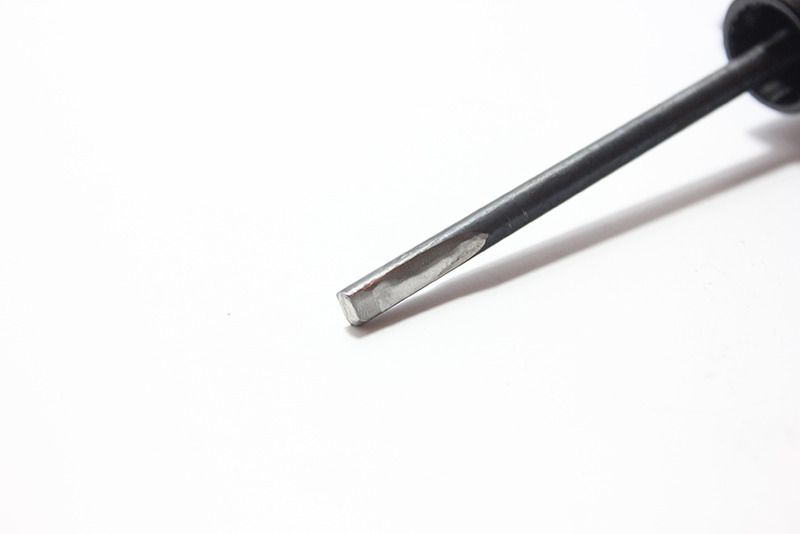

Using the dremel I cut the shaft to length. Then with alot of patience, I tried my best to evenly grind down to flats on the shaft. I was able to get a very snug fit into the incision locker.
If you can use a dremel, you can do this mod.
I don't know where the heat treat is at on these, but I did take care to ensure the shaft didn't get very hot. I'm pretty confident these should last. Time will tell.
I didn't use any measuring devices here other then my eyeball. I installed the assembled long shaft into the VP Chubs and Knuckle.
I then pulled the back axle half off leaving the burly tubes installed. Then I lined the chub up with the inner portion of the burly tube splines and marked where I thought the shaft would need cut.
Using the dremel I cut the shaft to length. Then with alot of patience, I tried my best to evenly grind down to flats on the shaft. I was able to get a very snug fit into the incision locker.
If you can use a dremel, you can do this mod.
I don't know where the heat treat is at on these, but I did take care to ensure the shaft didn't get very hot. I'm pretty confident these should last. Time will tell.
It's really been fun tinkering on this rig and getting back to the route of why I originally loved this hobby. No fancy tools, no big wallet, just a clean fun sporty build.

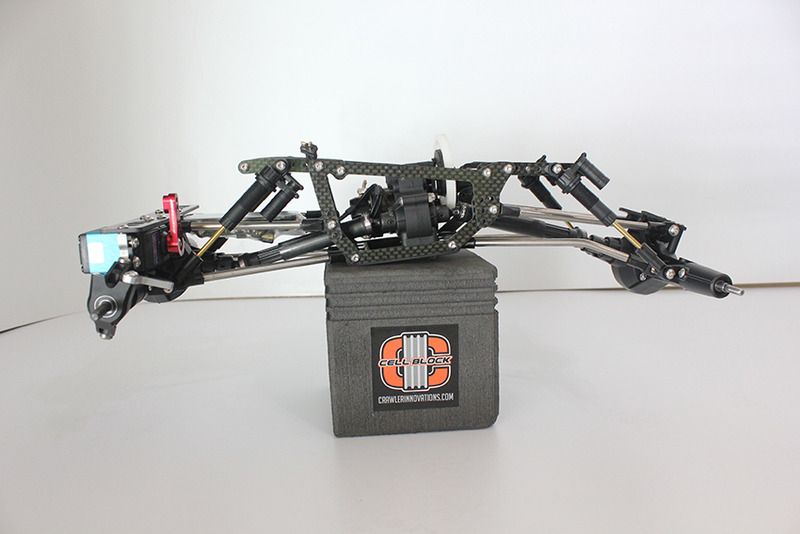

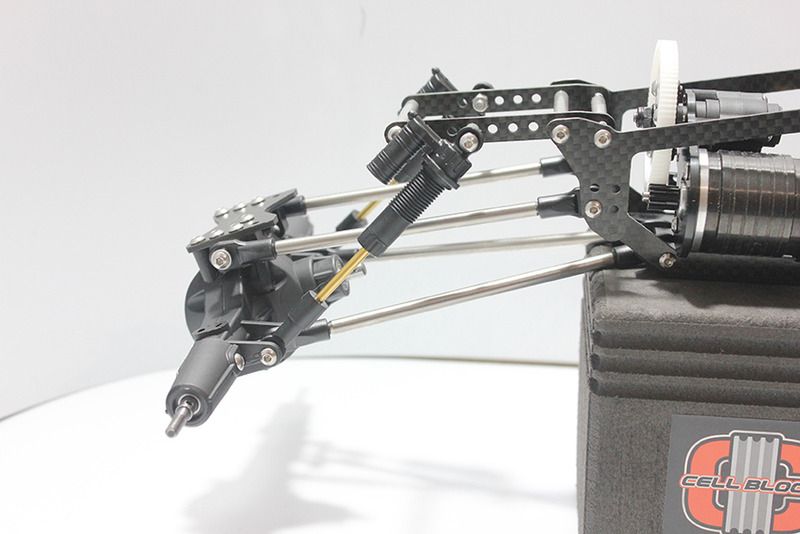

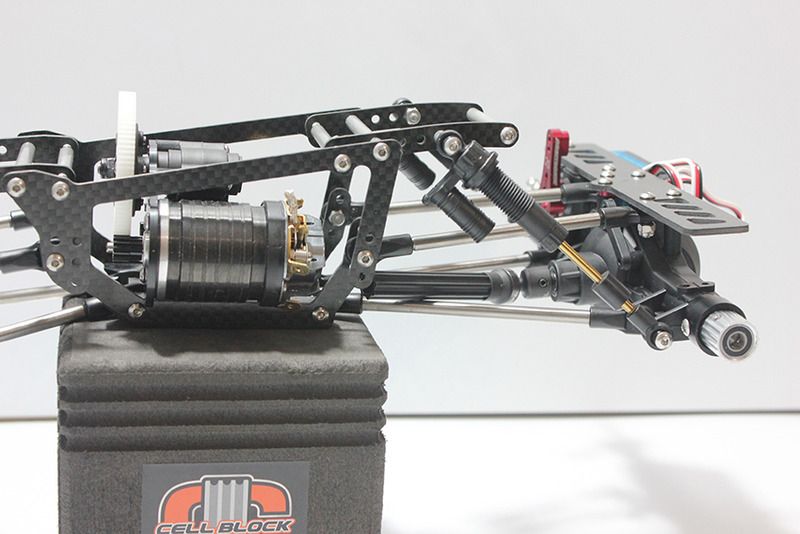

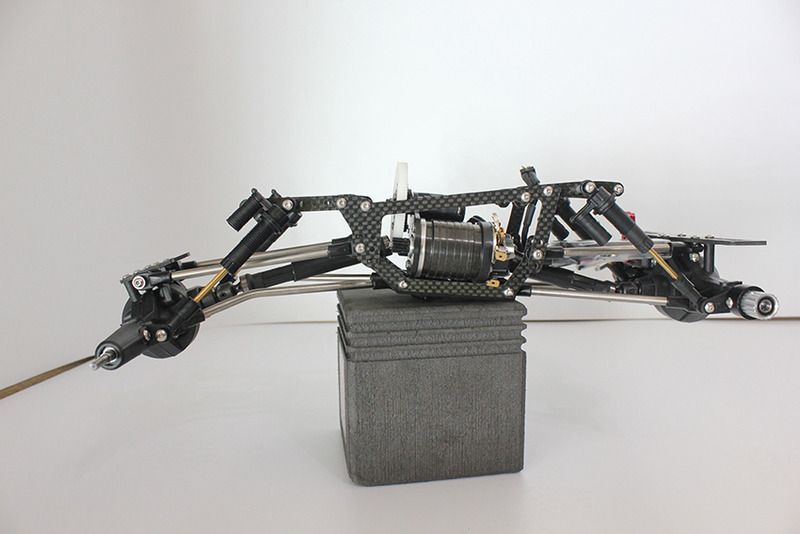

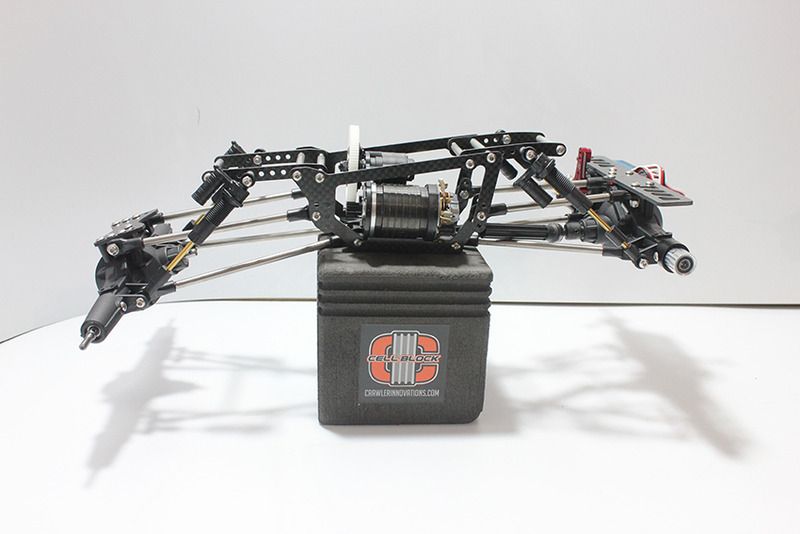

I've had a stock pile of VP Ti links here for some time, it made suspension mock up extremely easily. I think I'm just a hair over legal length currently, but I do plan to bend the lower links so things will change.
I needed to mock the suspension up so I could finish up the electronics.
I've had a stock pile of VP Ti links here for some time, it made suspension mock up extremely easily. I think I'm just a hair over legal length currently, but I do plan to bend the lower links so things will change.
I needed to mock the suspension up so I could finish up the electronics.
doug.steele04
Rock Stacker
Looking good.
Are you running the front shock outboard at the lower mounts?
Sent from my SM-G900R4 using Tapatalk
Are you running the front shock outboard at the lower mounts?
Sent from my SM-G900R4 using Tapatalk
Good catch. Yes I am.
doug.steele04
Rock Stacker
Just curious. How does doing this affect the performance or predictably if the suspension?
HilltopRcCrawlers
HilltopRcCrawlers
Depends on alot of variables, such as how much its spaced off on the chassis, how far laid back the shock is etc...
I had this setup on the old build and it worked well for me.

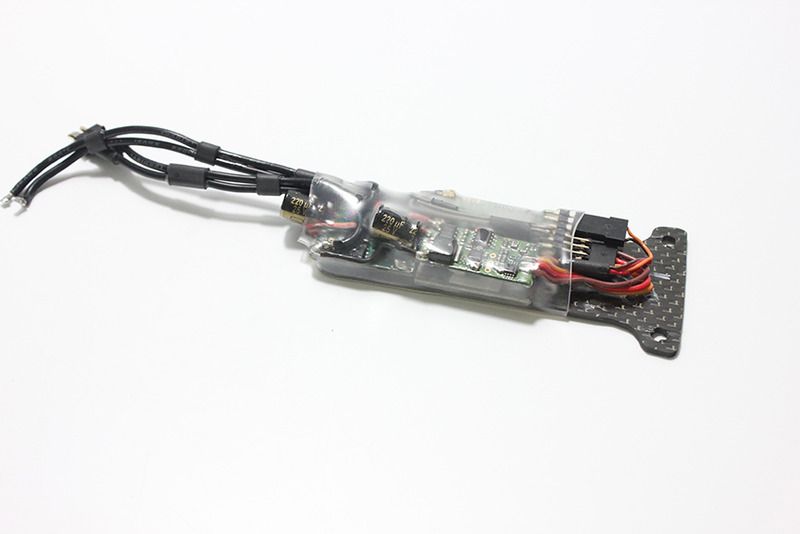

Cut up a new electronics mount to go in between the front link mounts.
Holmes BR Mini, Castle BEC and FrSky TFR4-B receiver.
Soldered everything together and then bound to the radio.
I prefer to cut all my ESC, BEC, and servo wires and recrimp new ends on them. Its easy and quick to do if you have the right tool.
You'll need the following:
JST-SH Connector Crimping Tool
JST-SH Servo Plug Set
Now that I have everything shortened and mock up complete, everything will get conformal coated.
Holmes BR Mini, Castle BEC and FrSky TFR4-B receiver.
Soldered everything together and then bound to the radio.
I prefer to cut all my ESC, BEC, and servo wires and recrimp new ends on them. Its easy and quick to do if you have the right tool.
You'll need the following:
JST-SH Connector Crimping Tool
JST-SH Servo Plug Set
Now that I have everything shortened and mock up complete, everything will get conformal coated.
tapped-out
I wanna be Dave
Nice job on electronics Will.
Last edited:

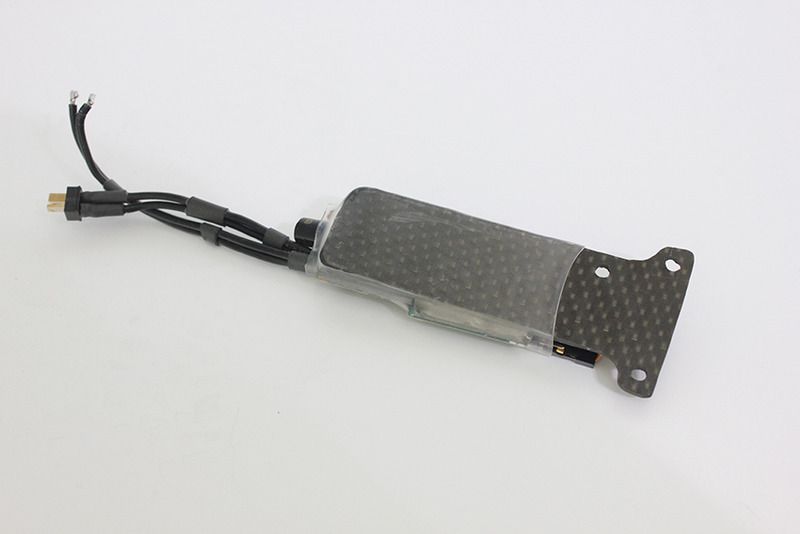

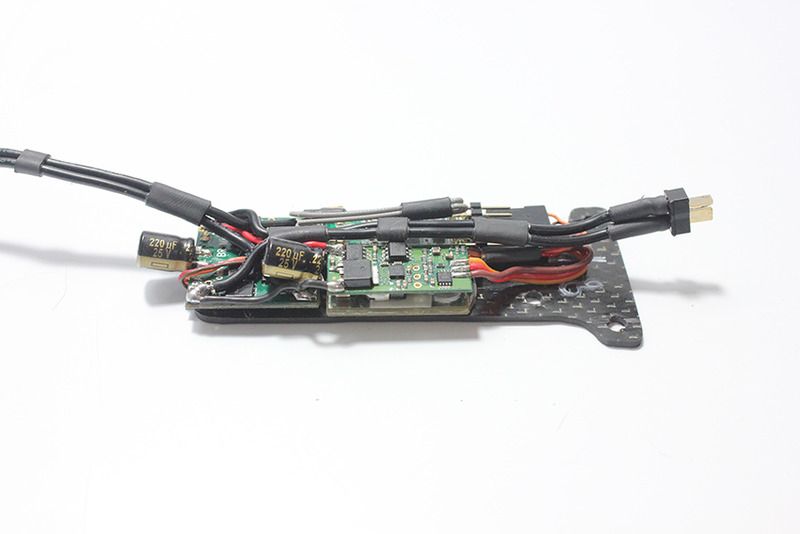

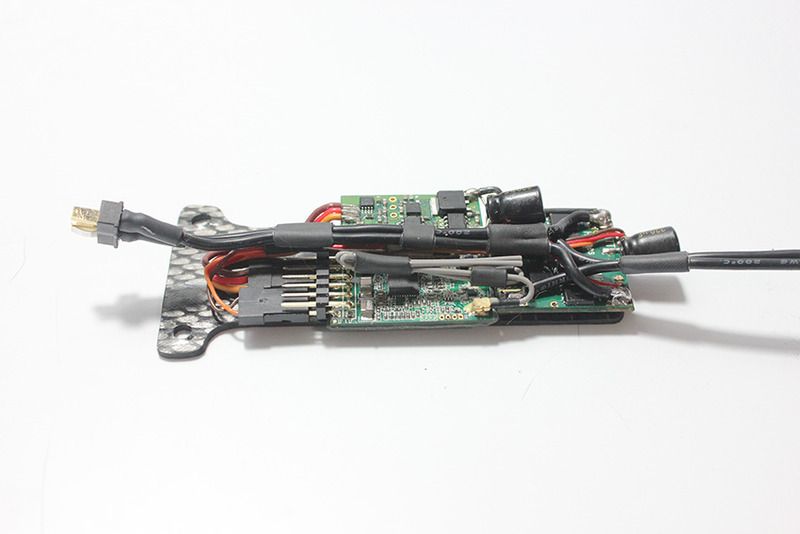

Electronics have been conformal coated and heat shrunk on to my mount. CF does conduct electricity, so I may sure to install 3M double sided foam on the bottom side of electronics.
Tom-foolery came over and nailed out the rear links.

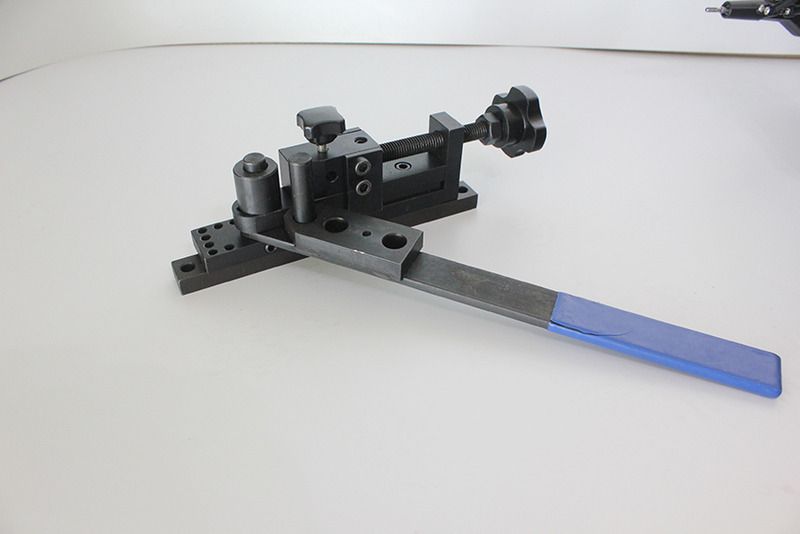

He has this killer ebay Tailan tube bender which allows you to bend two links at one time.
All the links used are from VP, no custom mods other then the two rear bends.
Rear Lower Links: 3/16 X 115MM
Rear Upper Links: 3/16 X 105MM
Front Lower Links: 3/16 X 95MM
Front Upper Links: 3/16 X 85MM
Tom-foolery came over and nailed out the rear links.
He has this killer ebay Tailan tube bender which allows you to bend two links at one time.
All the links used are from VP, no custom mods other then the two rear bends.
Rear Lower Links: 3/16 X 115MM
Rear Upper Links: 3/16 X 105MM
Front Lower Links: 3/16 X 95MM
Front Upper Links: 3/16 X 85MM
doug.steele04
Rock Stacker
I really like the way you did your electronics very clean. The links looks great.
I will be ordering me one of those benders. Being able to bend 2 links at once would save alot of time and material.
HilltopRcCrawlers
I will be ordering me one of those benders. Being able to bend 2 links at once would save alot of time and material.
HilltopRcCrawlers
ossipeecrawler
Quarry Creeper
So clean !!
Shoei1
Rock Crawler
Took me awhile to figure out where the BEC was. Thats my next project on my XR is to clean up the electronics. Plan to pick up those tools you suggested.
Last edited:
BEARly crawling
Newbie
Such a clean build so far im loving watching the direction this build is heading
the electrics smash is one of the best ive seen to date so compact and on your question b4 i only could see 1 stub axle in your vp gear
the electrics smash is one of the best ive seen to date so compact and on your question b4 i only could see 1 stub axle in your vp gear Got both VP XVD's modified and in the sporty tonight..

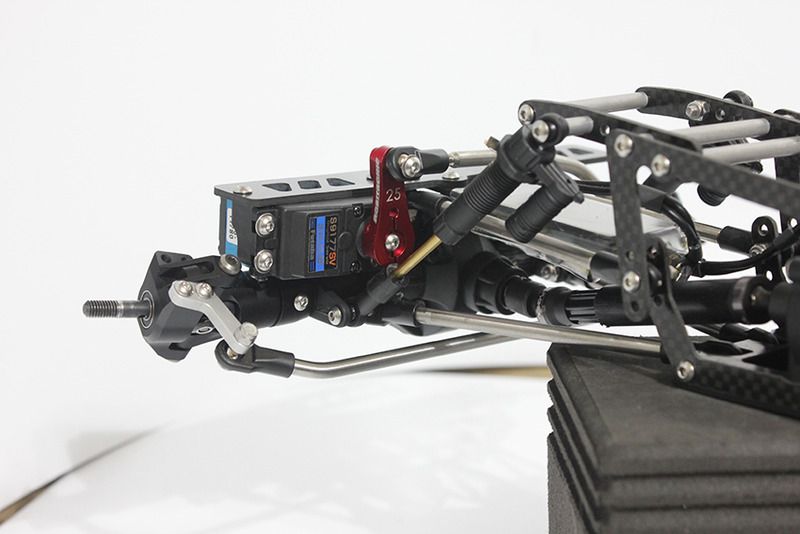

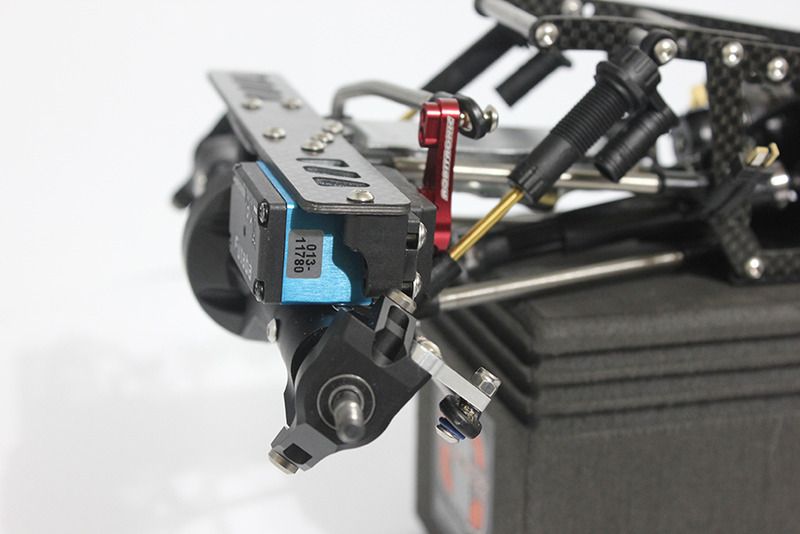

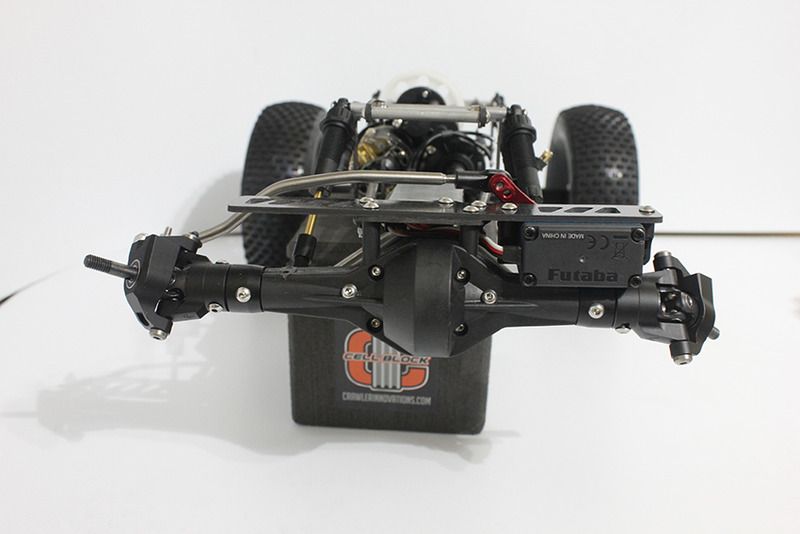

When tom foolery was over, we decided to try the stock Axial servo mounts, keeping the servo as in as possible to protect it from some beating.
