Free WK servo mount templates

[HndsWthtShdws]

Template now available: PRINT WITHOUT PAGE SCALING

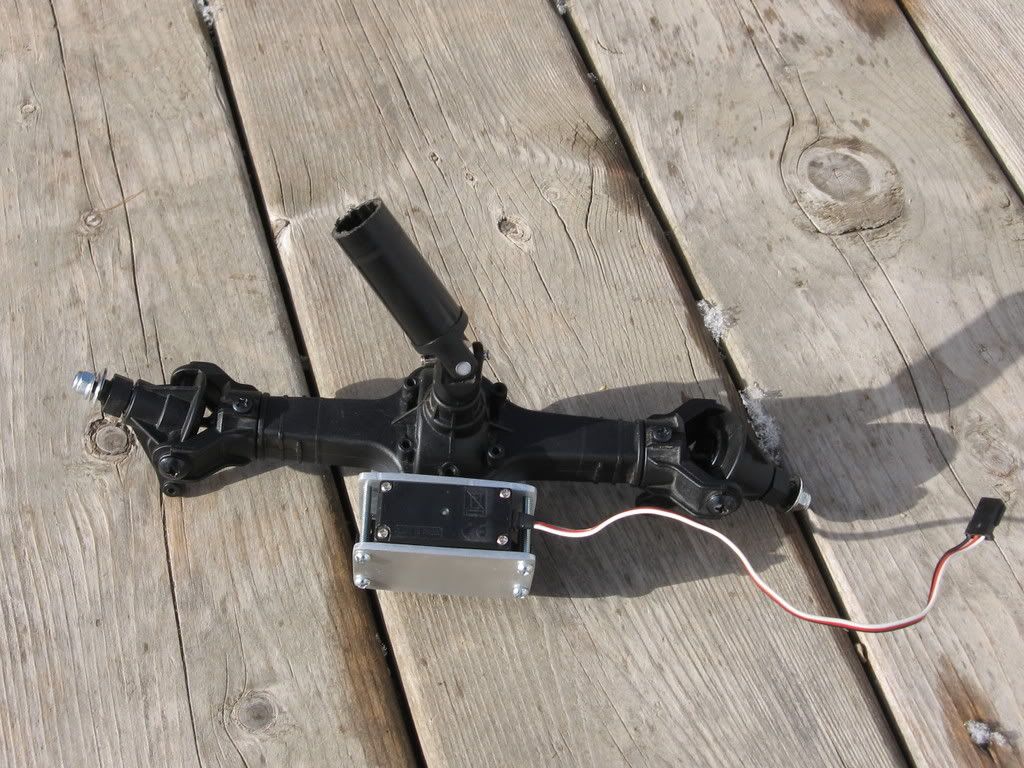

Finished mount:



[smcurry83]

I like it. Definitely different. How tight is it though? Any chance the servo could work it's way out of the clamp?



[HndsWthtShdws]

I didn't tighten the screws very tight (its only tapped 1/8" aluminum) and its in there pretty solid. I can't move it with my hands and I don't exactly have office hands. If it works its way loose I will scuff up the metal and servo with some coarse sandpaper and go from there.



[Rock_abuser]

Im a fan of Ryan62583's mount. It looks like it would be simple to make something similar.

I like this mount the best. Has anyone made one of these or have the specs. If someone has the skill to make one I would be willing to pay for your time.



[LST022752]

I used Harleys template. It turned out good.



[Rock_abuser]

I used Harleys template. It turned out good.

Is that some where in this thread?



[smcurry83]

I didn't tighten the screws very tight (its only tapped 1/8" aluminum) and its in there pretty solid. I can't move it with my hands and I don't exactly have office hands. If it works its way loose I will scuff up the metal and servo with some coarse sandpaper and go from there.

If it does loosen up, you could also put dubble sided tape on the top and bottom of the servo and then clamp it. I'm sure that would definitely keep it in place.



[HndsWthtShdws]

Double sided tape is a good idea; I like the idea of that little bit extra shock absorption that it would add. I was going to do it right away but the longest 4-40 screws the hardware store had were 1 inch, and they are perfectly flush with the bottom plate.



[Smarty]

Help!!

Hi Guys

Can anyone help me out? I am after the pdf for the servo mounts and the tranny clocker....

Does anyone have the latest one they can send me?

Regards
Smarty



[Slip&Slide]

I have one for you.I will send it now.



[Slip&Slide]

They should be in your email.Let me know if they came through OK.



[ussprinceton2004]

Hi Guys

Can anyone help me out? I am after the pdf for the servo mounts and the tranny clocker....

Does anyone have the latest one they can send me?

Regards
Smarty

I need these as well. Could someone PM or e-mail them to me?



[Smarty]

Thanks guys I now have.

1 Question though, could someone please give me some dimensions on the bta pdf file, I think it has printed smaller, and I dont have the truck just yet, the wife is holding it for my birthday.....

And I also need some dimensions for the clocking plate, maybe the total width in mm of each would be great!!

thanks in advance guys...



[Slip&Slide]

I need these as well. Could someone PM or e-mail them to me?

They should be in your email.Let me know how it turns out"thumbsup"



[Slip&Slide]

Thanks guys I now have.

1 Question though, could someone please give me some dimensions on the bta pdf file, I think it has printed smaller, and I dont have the truck just yet, the wife is holding it for my birthday.....

And I also need some dimensions for the clocking plate, maybe the total width in mm of each would be great!!

thanks in advance guys...

Should be right.Check the template against a servo to be sure.Hope it works out for you.



[WK Joe]

I would also like to get the template for the axle mount, if someone would be so nice as to pm or email it to me.

thanks



[Slip&Slide]

Should be in your email WK Joe



[HndsWthtShdws]

If anyone else ever wants the templates, PM me your email and I will send you Harley's regular mount, Harley's BTA mount, Harley's clocked motor plate, the Jowett Customs template, and my template.



[WK Joe]

Should be in your email WK Joe

I got it, I appreciate the help.



[kwkride]

Is the template still posted anywhere that mounts the servo towards the side of the axle?

Thanks,
Jim
