Old 09-01-2007, 06:06 PM   #21
Rock Stacker

Join Date: Jul 2007
Location: Sweden
Posts: 90
Default

Mamba Max ESC
BM9 Brushless Motor
Blue Bird BMS-660MG+HS (Torque 181 oz-in@4.8V and At 6.0V 14.6kg-cm , 195 oz)
Sun power 7,2V NiMH 4000 mAh (Will be replaced by a 6 or 8 cell 2/3A Elite 1500 pack)
Futaba 3PM

This is my first paint job so it´s not so nice :-P

My Gallery








Last edited by bjornsson; 09-02-2007 at 03:13 AM.
bjornsson is offline   Reply With Quote
Sponsored Links
Old 09-02-2007, 01:14 AM   #22
Newbie

Join Date: Jul 2007
Location: Roseburg
Posts: 14
Default

55T intigy and some old electrics from my kid brothers RC10 from back in the day. custom battery pack set up, and a bushwhacker / FJ45 pickup body, paint by Greg Brady. started out CAT yellow, but the rattle can F'n sucked.I like the way it's chipping and scratching, crawls like a goat/millipede.
TimBlume is offline   Reply With Quote
Old 09-02-2007, 07:09 PM   #23
I wanna be Dave

Join Date: Sep 2005
Location: *
Posts: 2,879
Default

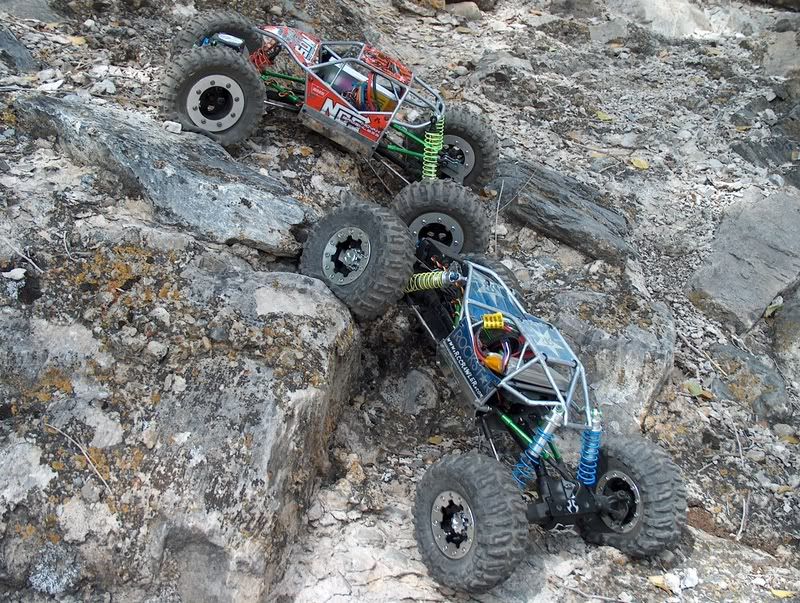

Here is my AX10 Tuber:
K9 Scar Tube Frame
AX Axles
AX Links
AX Wheels
Misc. AX parts
Losi Rock Claws
Hitec 5995ti Servo
Mamba Max
45t Lathe (for now)
Spektrum DX3.0
LiPo 2100's

Building SWEET A$$ Tubers PRICELESS...





FatDog chassis
Axial Running Gear
Novak Goat esc and motor
Hitec 5995tg ti servo
MSD Erickson bead lock wheels
Losi Rock Claw Tires





FatDog "Rockstar'' chassis
Axial Running Gear
Novak Goat esc and motor
Hitec 5995tg ti servo
RC4wd "Rockstar" bead lock wheels
Losi Rock Claw Tires





Together




Last edited by k9popo; 09-22-2007 at 09:09 AM.
k9popo is offline   Reply With Quote
Old 09-03-2007, 04:06 AM   #24
Quarry Creeper

Join Date: Aug 2007
Location: Rocklin, CA
Posts: 476
Default

Link to my build thread:
This is the kit to git! My Ax10

Name:  ax10.1.jpg
Views: 20651
Size:  67.2 KB

Name:  ax10.2.jpg
Views: 20585
Size:  97.5 KB

Name:  ax10.4.jpg
Views: 20451
Size:  89.1 KB

Name:  ax10.9.jpg
Views: 20339
Size:  88.8 KB
derwood21 is offline   Reply With Quote
Old 09-03-2007, 06:36 AM   #25
Newbie

Join Date: Jun 2007
Location: sydney
Posts: 3
Default

heres mine from way down in AUS
my first crawler
eagle racing 40t lov rev
mtroniks viper truck speedy
jr xs3 radio
Hi Tec hs645
crappy venom 3600 stick pack




and this is my crawling spot
ScattereD is offline   Reply With Quote
Old 09-03-2007, 01:10 PM   #26
Rock Crawler

Join Date: Mar 2007
Location: Colorado
Posts: 635
Default

My AX-10 from Italy....


Hitec HS5645MG

Rooster Crawler
Integy 45t



balang_479 is offline   Reply With Quote
Old 09-03-2007, 04:32 PM   #27
Pebble Pounder

Join Date: Aug 2007
Location: Anaheim/Gardena, CA
Posts: 179
Default

Posted in here already.. but here are some updated pics from the lake. New body and extras coming soon.... maybe a new Chassis. (Premature Losi stickers )

Axial AX-10 Chasis
Moped V16 ESC
Integy 55T Motor
Hitec HS-645 MG Servo
F-650 Hacked Body w/ Ghetto Roll/light bar w/ RAM Lights.
AE RC18 Controller
Losi Rock Claws (coming soon)




Not really even an AX-10 Picture.... but for the heck of it.
DieselPhotos is offline   Reply With Quote
Old 09-04-2007, 12:20 AM   #28
Rock Stacker

Join Date: May 2005
Location: Ewa beach
Posts: 69
Default My turn

My AX-10 Tuber

55turn lathe
Hitec 59997
6 cell match batts
monster jordans
Mamba max
Dx3






silviajspec is offline   Reply With Quote
Old 09-04-2007, 09:04 PM   #29
Quarry Creeper

Join Date: Aug 2007
Location: tx
Posts: 254
Default

Here is mine I Just want to say thanks to my LHS and S1NN3R for all the help.

For electronics I went cheap for now so I could play instead of look at it.

I have a novak XRS then I just used my revo's TQ3 radio and just purchased another reciver then I am useing a integy 45T motor. and a venom 3300 nimh pack.

So far the only things I have done to it I pulled all the foam out and put in a mixture of airsoft bb's and metal bb's. My front tires& wheels weigh around 11-12 oz. The rear tires weigh right around 9oz. And the only damage so far has been I popped the tops off the front shocks and striped out the servo arm (which is the one that came with the kit) So I modified one that came with the servo. And it works great and I dont think it will strip as easily.






Last edited by quads4_life; 09-05-2007 at 04:50 PM.
quads4_life is offline   Reply With Quote
Old 09-05-2007, 06:25 AM   #30
Newbie

Join Date: May 2007
Location: Pawcatuck
Posts: 32
Default

My first 2.2.

Mamba Max ESC
Holmes Hobbies Scorpion 1000kv outrunner
Hitec 5955-TG servo
Traxxas TQ3 and reciever
All powered with a 4800mah 11.1v lipo




cmurray613 is offline   Reply With Quote
Old 09-05-2007, 08:08 AM   #31
Newbie

Join Date: Aug 2007
Location: SYDNEY, AUS
Posts: 2
Default


EGG80X is offline   Reply With Quote
Old 09-06-2007, 07:03 PM   #32
Quarry Creeper

Join Date: Aug 2007
Location: NOR*CAL
Posts: 476
Default




THESE WERE THE BEFORE PICS

Last edited by crawls2thewalls; 09-29-2007 at 11:46 PM.
crawls2thewalls is offline   Reply With Quote
Old 09-07-2007, 09:52 PM   #33
Rock Crawler

Join Date: Jan 2007
Location: monson
Posts: 595
Default

temporary electronics
futaba R114H
duratrax intellispeed 16T
towerpro MG995
integy lathe 75T
epic 3000 NiMH




Last edited by 500swmag; 09-12-2007 at 09:46 PM.
500swmag is offline   Reply With Quote
Old 09-08-2007, 02:48 PM   #34
Newbie

Join Date: Sep 2007
Location: Boulder, CO
Posts: 15
Default

Here's my new toy! I love this thing! I just need to figure out how to drive it a little better... just popped the drive shaft off. DOH!

firetacoma is offline   Reply With Quote
Old 09-09-2007, 01:00 AM   #35
Quarry Creeper

Join Date: Nov 2006
Location: Reno
Posts: 322
Default

My AX-10..

Integy 65t tt motor
Dura-Trash IntellSpeed ESC
Venom 3600batt.
Futaba S3305 Metal Geared Servo
Stock Betty Body for now......







atvdude775 is offline   Reply With Quote
Old 09-09-2007, 10:36 AM   #36
Rock Crawler

Join Date: Aug 2007
Location: Philadelphia
Posts: 797
Default

Mostly borrowed electronics for now until I get some cash for the new stuff.

Nothing special. Just another happy Scorpion...



PS... I hate the Betty body so I obviously destroyed it mostly just for kicks. Awesome new body on the way soon.
ElChupacabra is offline   Reply With Quote
Old 09-09-2007, 12:56 PM   #37
Quarry Creeper

Join Date: Apr 2005
Location: South Jersey (Cherry Hill area)
Posts: 240
Default

after custom building my rigs for the past few years I thought I would try an AX10... I was very impressed

Axial AX10
E-Savage Bug body
Mamba Max
CrawlMaster brushless
Wheely King springs
3s pack
Mashers


HauntFreaks.com is offline   Reply With Quote
Old 09-09-2007, 06:29 PM   #38
RCC Addict

Join Date: Jun 2004
Location: Little Rock, AR
Posts: 1,000
Default AX-10 Bronco

AX-10 Bronco:

Rooster Crawler
Hitec 5645 servo
JR Radio
Weights in front wheels
Integy 55t motor
13t pinion
Bronco Lid
Attached Images

bbyrd22 is offline   Reply With Quote
Old 09-09-2007, 09:11 PM   #39
Quarry Creeper

Join Date: Aug 2007
Location: Temple
Posts: 326
Default

heres mine guys "Black Beauty"

Motor: Integy 65t
ESC: Lrp Super reverse digital
Rx/Tx: HPI 2ch.
Battery: Power Max Pro 3300
servo: HS-645MG

scalerfreak is offline   Reply With Quote
Old 09-09-2007, 09:48 PM   #40
Newbie

Join Date: Sep 2007
Location: Australia
Posts: 1
Default

Heres my AX10, its also my first crawler.

-Integy 65t lathe
-19t pinion, 87t spur
-LRP Runner ESC
-Tower Pro MG995 servo
-Venom 1800 battery




dat012 is offline   Reply With Quote
