todd1803 · 09-13-2006, 07:32 PM

Here are pics of my TLT.
Still needs electricronics, and most of them are lined up already, except for the motor, which I need to order. I also will probably order widners as well.
It's an SW2 with a Stealth tranny, Traxxas shocks, and Maxx 2.5 shafts. Wheelbase is right about 12", and it's a 50/50 layout at this point.

run2jeepn · 09-26-2006, 05:44 PM

Here's "RAMROD"

toyota_yes_please · 10-05-2006, 09:18 PM

Chassis: Home Built
Trany: Raven ST
Axles: TLT (locked)
Power Plant: 55T laith
Tires: Moabs
ESC: Novak SRS

twisted · 10-06-2006, 10:24 PM

heres a pic of mine to date....

jefferson chassis
duratrax shocks
proline power wagon body w/cutom bedrails
unimoger rock rings
proline masher 2k (bb's in front)

sleek6mt · 10-09-2006, 11:26 AM

my sweet thang

dnt let the pink fool ya

D.I.L.L.I.G.A.F. · 10-11-2006, 11:44 AM

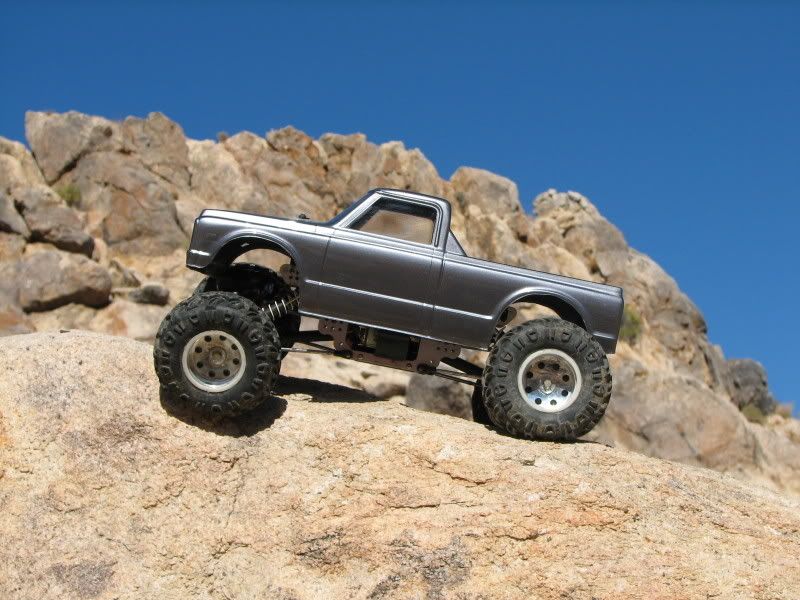

here is my silverad0 narrowed...

PSYCHOPATHICUSTOMS · 10-13-2006, 03:25 PM

HERE IS MY OLD GOAT , HMMM I GOT A NEW ONE BUT NOT GOING TO REVEAL TELL UT STATE CHAMPS

KRAWLR4life · 10-17-2006, 11:59 AM

Hello, Here is my rig!
Building more, so more pics to come!
John

Chris-H · 10-21-2006, 07:41 AM

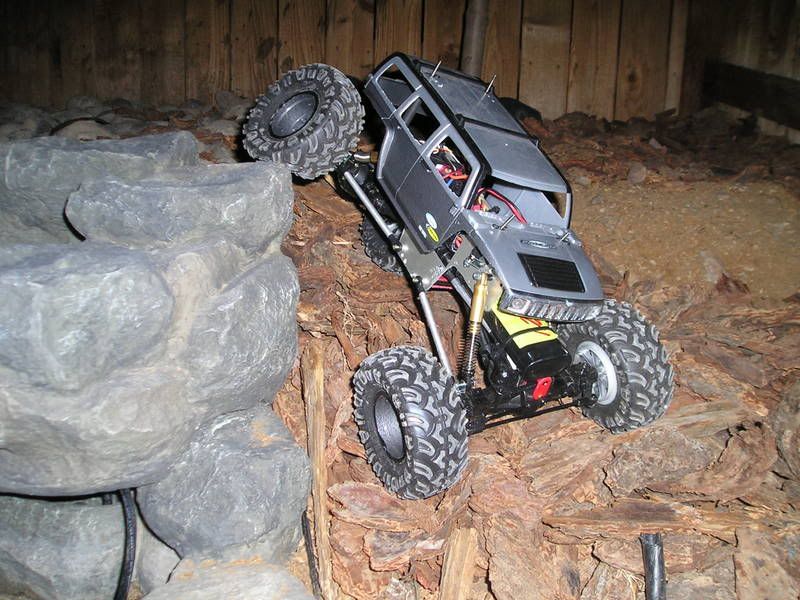

My TLT Crawler.

rockbuggy · 10-22-2006, 08:46 PM

SW 2 chassis
tlt axles locked
pede trans
55t
LRP Ecs
Hitech servo
Moabs on pede wheels
traxxas big bore shocks
custom battory pack

rockcrawlerant · 10-24-2006, 11:03 PM

"Rock Bug"

Custom cut TLT chassis
locked diff's
traxxas pede tran's
pede wheel's with custom rock ring
MOAB's with half foam's, Masher 2K's
Hitec 645MG servo
threded traxxas shock's

the DMG · 11-02-2006, 09:35 AM

TerribleOne · 11-08-2006, 09:33 PM

My newest comp rig

BMv2 Chassis, The next evolution in comp tlt's
TLT axles, Bearings, Alum knuckles
Losi xxxt MF1 trans
Rebel 2
Hitec 5645
55t
Masher 2k's
Hpi spike wheels
Hpi F350
Hitec 3ch fm
8cell 1100 gp's

Brushless system coming soon, also have a front dig setup ready to go in.

****ty pics,

YoUnG_vErSiOn · 11-09-2006, 12:43 AM

SW-2
MOABS-beadlocks
pede
55turn lathe
5955tg-645mg
GPM Knuckles
Integy Shocks
pede metal yokes(4)
60/40
12t/87t(48p)
cj-disco'd dovetailed
custom battery link mounts-shut_d's
duracell-nimh 2650s-8

jjjas · 11-10-2006, 11:29 PM

first attempt at a tube chassis and crawler so please be kind. tried to make it resemble a poison spyder rig.
custom ss tube chasis
tlt axles locked
pede tranny
55turn
lrp a.i. bullet esc
1/18 battery pack want to go with a123 batteries
13.25" wb
weight?
tell me what you guys think.
would like to run with some nor-cal guys if you're willing to put up with a crawler newbie.

http://slugrc.blogspot.com

FrankyRizzo · 11-11-2006, 07:50 AM

Black SW2
Brushless
Moabs on Revolvers
Slinky Sams axle C's
Pede tranny

LIKES2CRAWL · 11-11-2006, 12:40 PM

Sweet tuber, very scale looking and looks like it performs well too, Welcome to RCC.

chevellian · 11-14-2006, 07:27 PM

Here is my 2.2 rig. bought the rig in the for sale section from mike. only made e few changes then mounted the sledgehammer body.

RWKXJ · 11-22-2006, 12:10 PM

Here is my first crawler. TLT chassis, XXXtrans, Moabs...

west virginia krawler · 11-24-2006, 04:43 PM

mine

updated
